ABB YPG111A Interface Board Masterpiece

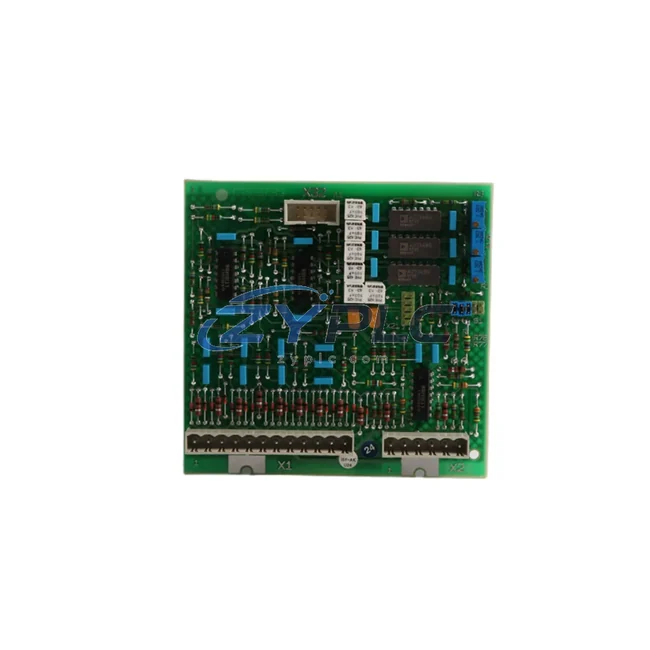

ABB YPG111A Interface Board Masterpiece: Precision Motor Control for Optimized Automation

The ABB YPG111A is a high-performance interface board module engineered for the ABB Masterpiece Series drive and control platform. Designed to serve as the critical communication and signal-processing bridge between the drive controller and peripheral automation systems, the YPG111A plays a decisive role in reducing unnecessary energy consumption, improving motor response accuracy, and extending the operational lifespan of connected equipment. For factories seeking to tighten energy budgets without sacrificing throughput, this board delivers measurable efficiency gains at the drive level — where energy losses are most impactful.

At ZYPLC, every ABB YPG111A unit is sourced from verified supply channels, subjected to full functional testing prior to shipment, and backed by a warranty terms confirmed during quotation. Stock is maintained on-hand to support urgent industrial procurement needs with fast turnaround.

Product Specification Table

System Compatibility and Application

In a modern energy-conscious production facility, the ABB YPG111A interface board does not operate in isolation — it functions as a precision node within a broader automation ecosystem. When integrated with an ABB Masterpiece 200/1 or Masterpiece 90 drive controller, the YPG111A ensures that analog and digital I/O signals are transmitted with minimal latency and maximum fidelity, enabling the drive to respond instantly to load changes and speed commands from the supervisory control layer.

In typical deployments, the YPG111A works alongside the ABB SDCS-CON-4 control board and SDCS-POW-4 power supply board within the same drive cabinet. The SDCS-CON-4 handles the core DC drive regulation algorithm, while the YPG111A manages the interface signals that connect the drive to field devices — including encoders, tachometers, and external reference inputs. This tight integration allows the drive system to execute closed-loop speed and torque control with the precision needed to eliminate energy-wasting motor overshoots and hunting.

On the communication side, the YPG111A-equipped Masterpiece drive can be linked to a plant-level ABB AC800M PLC or a Bailey INFI 90 DCS via PROFIBUS-DP or proprietary ABB fieldbus protocols. This connectivity enables real-time condition monitoring at the drive level — operators can track motor load factor, running hours, and power draw directly from the HMI or SCADA layer. When paired with an ABB Panel 800 HMI or equivalent operator interface, production teams gain immediate visibility into drive performance without requiring additional power meters.

For facilities running multiple motor-driven assets — such as pumps, compressors, fans, and conveyors — the YPG111A’s role in maintaining accurate speed reference signals directly impacts system-wide energy efficiency. A misaligned or degraded interface board can cause the drive to operate at incorrect setpoints, leading to motor over-speed, excess heat generation, and unnecessary energy draw. Replacing a faulty interface board with a tested ABB YPG111A restores the drive’s ability to regulate motor speed within ±0.1% of setpoint, which in high-duty applications translates to measurable kWh savings per shift.

The board is also compatible with ABB RINT-5611C and RINT-5514C fiber optic interface modules used in larger Masterpiece drive configurations, allowing the YPG111A to serve as the local I/O interface while fiber links handle long-distance signal transmission between drive cabinets and remote control rooms. This architecture is common in paper mills, steel rolling lines, and large-scale water treatment plants where drive cabinets are distributed across the facility.

Maintenance and Replacement Notes

The energy impact of a properly functioning ABB YPG111A interface board becomes most apparent in continuous-process industries where motors run 24 hours a day, 7 days a week. In a paper machine drive line, for example, the Masterpiece drive system controls multiple section drives — each responsible for maintaining precise speed ratios to prevent web breaks and tension fluctuations. A degraded interface board introduces signal noise or reference drift, causing the drive to hunt for the correct speed setpoint. This hunting behavior increases motor current draw, generates excess heat in the drive cabinet, and accelerates wear on both the motor and the mechanical drivetrain.

By restoring the YPG111A to full specification, the drive regains its ability to hold tight speed tolerances across all operating conditions. In pump and fan applications governed by variable-torque load curves, this precision allows the drive to operate closer to the optimal efficiency point on the motor’s performance curve — reducing energy consumption by 5–15% compared to a degraded or incorrectly calibrated interface condition.

From a maintenance perspective, the ABB YPG111A is a field-replaceable module designed for rapid swap-out without requiring full drive reconfiguration. Maintenance teams can replace the board during a planned shutdown window, perform a basic I/O verification test, and return the drive to service within a single shift. This minimizes unplanned downtime — one of the largest hidden energy costs in industrial operations, since restarting large motor-driven systems from cold consumes significantly more energy than maintaining continuous optimized operation.

ZYPLC pre-tests every YPG111A unit under simulated drive conditions before shipment, verifying signal integrity across all I/O channels. Each unit ships with a test report and is covered by a warranty terms confirmed during quotation, giving procurement and maintenance teams confidence that the replacement board will perform to ABB factory specification from day one. With availability confirmed by RFQ availability and fast international shipping, ZYPLC reduces the lead time risk that often forces plants to run degraded equipment longer than they should.

Product Sourcing FAQ

Q1: How does replacing the ABB YPG111A interface board reduce energy consumption?
A degraded or faulty YPG111A causes the Masterpiece drive to receive inaccurate speed or torque reference signals, leading to motor hunting, overcurrent conditions, and inefficient operation. Replacing it with a tested unit restores closed-loop control accuracy, allowing the drive to regulate motor output precisely at the required setpoint — eliminating the excess energy draw caused by control instability.

Q2: Is the ABB YPG111A compatible with all Masterpiece Series drive configurations?
The YPG111A is designed for the ABB Masterpiece Series DC drive platform. Compatibility depends on the specific Masterpiece model and firmware revision. ZYPLC recommends confirming your drive’s model number (e.g., Masterpiece 200/1, Masterpiece 90) before ordering. Our technical team can assist with cross-referencing if you provide your drive’s nameplate data.

Q3: What does the pre-shipment testing process cover?
Each ABB YPG111A unit sold by ZYPLC undergoes functional I/O channel verification, signal integrity testing, and visual inspection for component damage or corrosion. Units that do not pass all test criteria are not offered for sale. A test record is maintained for each unit shipped.

Q4: What does the warranty terms confirmed during quotation cover, and how is a claim processed?
The warranty terms confirmed during quotation covers functional failure of the YPG111A under normal operating conditions. If the board fails within the warranty period due to a manufacturing or component defect, ZYPLC will provide a replacement unit or issue a refund, subject to return inspection. Warranty claims are initiated by contacting ZYPLC directly at plc.sales@zyplc.com or +86 19859288691.
