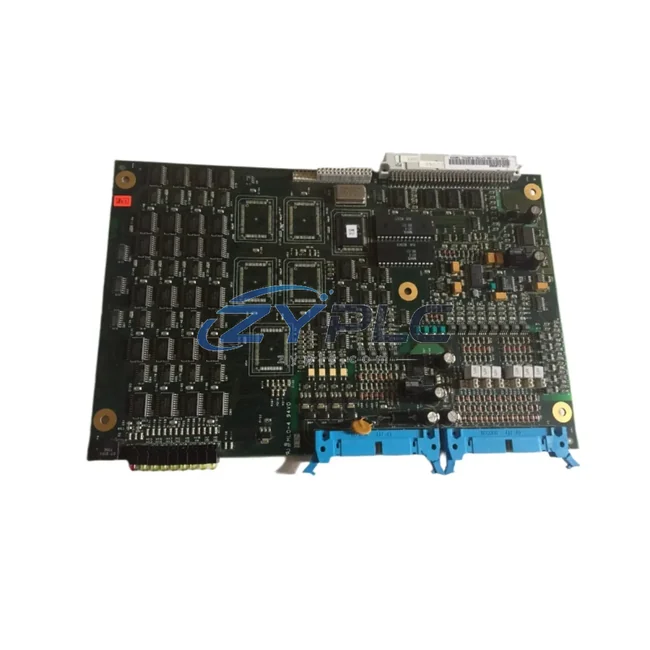

ABB YPH108B61156844 Speed Measurement Board: Precision Control for Unitrol Automation
The ABB YPH108B61156844 is a high-performance speed measurement board engineered for deployment within ABB’s Unitrol excitation control platform. Designed to deliver accurate, real-time rotor speed feedback to the excitation regulator, this board plays a critical role in maintaining generator stability, reducing reactive power losses, and enabling tightly coordinated motor-drive interaction across industrial power generation and heavy-duty automation environments. By providing precise speed signal conditioning, the YPH108B61156844 directly contributes to reduced unplanned downtime, improved equipment utilization rates, and lower lifecycle maintenance costs.
Product Specification Table
| Parameter |
Specification / Value |
| Part Number |
YPH108B61156844 (YPH 108B) |
| Brand / Series |
ABB / Unitrol Excitation System |
| Product Type |
Speed Measurement Board |
| Primary Function |
Rotor speed signal acquisition and conditioning for excitation regulation |
| Power Consumption |
Low-power signal processing design; minimizes auxiliary power draw |
| Operating Efficiency |
High-accuracy pulse counting; supports stable AVR closed-loop control |
| Compatible Systems |
ABB Unitrol 1000, Unitrol 5000, Unitrol 6000 excitation platforms |
| Application Environment |
Power generation, synchronous motor drives, industrial automation |
| Maintenance Value |
Enables precise field current regulation → reduces reactive power losses and heat generation |
| Origin |
Switzerland (ABB) |
| Condition |
Genuine OEM, fully tested before shipment |
| Warranty |
warranty terms confirmed during quotation |
System Compatibility and Application
In a modern industrial maintenance planning architecture, the ABB YPH108B61156844 speed measurement board serves as the sensory foundation for the entire excitation control loop. Accurate speed data captured by this board feeds directly into the ABB Unitrol 6000 automatic voltage regulator (AVR), which adjusts field current in real time to maintain terminal voltage stability and minimize reactive power consumption. Without reliable speed feedback, the AVR cannot perform efficient closed-loop regulation, leading to over-excitation, increased copper losses, and unnecessary energy draw from the grid.
The YPH108B61156844 integrates seamlessly with the ABB Unitrol 1000 and Unitrol 5000 excitation controllers, both of which rely on high-resolution speed pulse signals to synchronize generator output with grid frequency. In multi-drive environments, this board works in coordination with ABB ACS880 series industrial drives, which handle motor speed regulation on the load side while the excitation system manages generator-side power quality. Together, these components form a closed energy loop that reduces idle power consumption and improves overall plant power factor.
On the I/O and communication layer, the speed measurement board interfaces with ABB AC500 series PLCs via hardwired signal channels, enabling the control system to correlate speed data with process variables such as load current, torque demand, and thermal status. The ABB AC500-eCo compact PLC variant is commonly deployed in smaller generator sets where the YPH108B61156844 provides the primary speed reference for both protection relay logic and energy metering functions. Integration with ABB Ability™ Energy Manager software allows plant operators to visualize speed-correlated energy consumption trends and identify inefficiencies in real time.
For facilities using ABB SACE Emax 2 intelligent circuit breakers with built-in power measurement, the speed signal from the YPH108B61156844 can be cross-referenced with breaker-level energy data to validate generator efficiency at each operating point. Similarly, in plants equipped with ABB M2M PROFIBUS or PROFINET communication modules, the speed measurement data can be transmitted upstream to SCADA systems for fleet-wide energy benchmarking and predictive maintenance scheduling. This multi-layer data flow — from speed sensing through drive control to enterprise maintenance planning — is what transforms a single measurement board into a strategic maintenance planning asset.
Maintenance and Replacement Notes
In thermal power plants and large industrial facilities where synchronous generators operate continuously, even minor inaccuracies in speed measurement can cascade into significant energy inefficiencies. The ABB YPH108B61156844 eliminates this risk by providing stable, high-resolution speed pulse signals that allow the Unitrol excitation system to maintain optimal field current at all load conditions. This precision directly reduces rotor copper losses during partial-load operation — a common source of hidden unplanned downtime in facilities that run generators at less than full capacity for extended periods.
From a production line rhythm perspective, accurate speed feedback enables faster generator synchronization during startup sequences, reducing the time equipment spends in unproductive transitional states. In facilities with frequent load changes — such as steel mills, cement plants, or large HVAC systems — the YPH108B61156844 supports rapid AVR response, preventing voltage sags that would otherwise force protective relays to trip and cause unplanned downtime. Each avoided trip event translates directly into preserved production throughput and reduced restart energy costs.
Predictive maintenance benefits are equally significant. Because the speed measurement board provides continuous, high-fidelity rotor speed data, condition monitoring systems can detect early signs of mechanical degradation — such as bearing wear or rotor imbalance — by analyzing speed signal anomalies before they escalate into failures. This capability shifts maintenance from reactive to predictive, reducing both spare parts consumption and the energy overhead associated with emergency repair cycles. All units are shipped after full functional testing, and each ABB YPH108B61156844 is backed by a warranty terms confirmed during quotation, ensuring supply continuity and minimizing procurement risk for maintenance teams managing critical power infrastructure.
Product Sourcing FAQ
Q1: How does the ABB YPH108B61156844 contribute to operational stability in a generator system?
The YPH108B61156844 provides precise rotor speed feedback to the Unitrol AVR, enabling accurate field current regulation. This prevents over-excitation and reduces reactive power losses, which are a primary source of unplanned downtime in synchronous generator installations. Accurate speed data also supports faster load-following response, reducing the duration of inefficient transient operating states.
Q2: Is the YPH108B61156844 compatible with all ABB Unitrol excitation system variants?
This board is designed for use within the ABB Unitrol platform and is compatible with Unitrol 1000, Unitrol 5000, and Unitrol 6000 series excitation controllers. For specific firmware version compatibility or integration with non-standard Unitrol configurations, please contact our technical team before ordering to confirm suitability for your application.
Q3: What is the recommended replacement process, and how is the board tested before shipment?
Replacement involves removing the faulty board from the Unitrol excitation cubicle, installing the YPH108B61156844 in the designated slot, and verifying speed signal output against the AVR’s expected input range during commissioning. Every unit undergoes full functional testing prior to shipment to confirm signal integrity and board-level performance. Detailed installation guidance is available upon request.
Q4: What warranty and supply support is provided with this product?
Each ABB YPH108B61156844 is covered by a warranty terms confirmed during quotation from the date of shipment. We maintain inventory stock to support urgent replacement requirements and can provide expedited shipping for critical plant applications. For ongoing supply agreements or bulk procurement, please contact our sales team to discuss availability and lead times.
