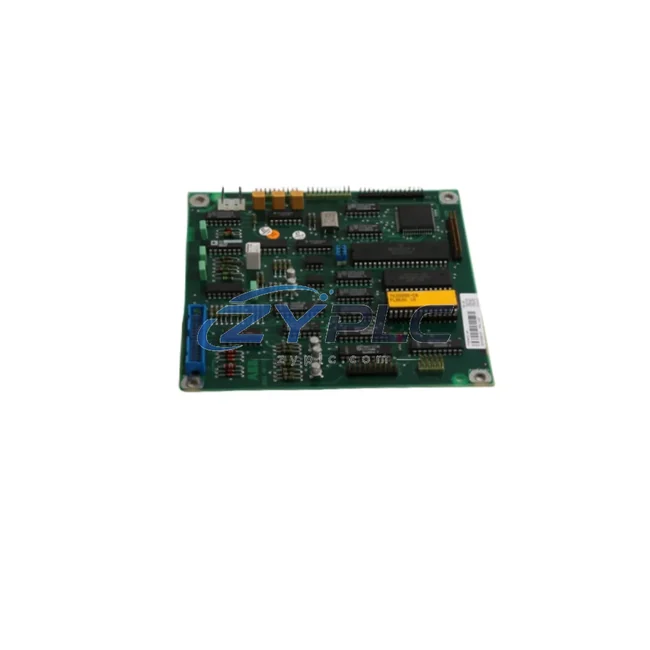

The ABB YPQ102F YT204001-KF is a precision-engineered field control board designed to operate at the heart of the AC800F Distributed Control System (DCS) architecture. Rather than functioning as a standalone component, this board is conceived as an integral node within a multi-layered automation hierarchy — bridging the control layer, I/O layer, and field device layer with deterministic signal processing and robust communication capability. In modern industrial environments where system uptime, signal fidelity, and architectural scalability are non-negotiable, the YPQ102F YT204001-KF delivers the structural reliability that process engineers and system integrators depend on.

Within the AC800F platform, the field control board occupies a critical position between the central processing unit and the distributed I/O modules. It receives conditioned signals from field transmitters, actuators, and sensors, processes them in accordance with the control logic defined at the CPU level, and returns command outputs to the execution layer with minimal latency. This tight integration with the AC800F controller backplane ensures that the YPQ102F YT204001-KF participates fully in the system’s redundancy architecture, supporting hot-standby configurations and seamless failover without process interruption.

Product Specification Table

System Compatibility Notes

The YPQ102F YT204001-KF achieves its full potential when deployed within a coherent AC800F system architecture. At the control layer, it operates in close coordination with the ABB PM803F or PM865 processor modules, which serve as the central intelligence of the DCS. These CPUs issue control commands that the field control board translates into precise field-level outputs, maintaining synchronization across all process loops.

On the I/O layer, the board interfaces with ABB AI810 analog input modules and AO810 analog output modules, as well as DI810 and DO810 digital I/O modules mounted on the S800 I/O station. This modular I/O architecture allows engineers to expand the system’s field connectivity without redesigning the control backbone, making the YPQ102F YT204001-KF a scalable foundation for both greenfield installations and brownfield upgrades.

Network-layer stability is maintained through the ABB CI854 PROFIBUS DP communication interface module, which connects the AC800F controller to field devices, remote I/O stations, and third-party instruments. The YPQ102F YT204001-KF’s compatibility with this communication infrastructure ensures that signal data flows reliably from the field to the supervisory layer without bottlenecks or protocol mismatches.

Power integrity across the system is provided by the ABB SD821 or SD823 power supply modules, which deliver regulated 24 VDC to the controller backplane and I/O stations. The field control board’s low power consumption profile makes it well-suited for high-density cabinet configurations where thermal management and power budgeting are critical engineering considerations.

At the human-machine interface layer, operators interact with the AC800F system through ABB Panel 800 series HMI terminals or through Freelance/800xA SCADA platforms. The YPQ102F YT204001-KF’s deterministic response characteristics ensure that process variable updates are reflected accurately and promptly on operator displays, supporting informed decision-making during both normal operations and alarm conditions.

For redundancy-critical applications, the board is designed to work alongside ABB TB820V2 PROFIBUS DP redundancy modules and TP830 termination panels, enabling dual-channel signal paths that protect against single-point failures. This redundancy architecture is particularly valuable in continuous process industries where unplanned shutdowns carry significant operational and safety consequences.

Industrial Application Notes

The ABB YPQ102F YT204001-KF field control board is deployed across a wide spectrum of industrial sectors where process reliability and system architecture integrity are paramount.

In power generation and electrical utilities, the board supports turbine control, boiler management, and grid synchronization applications within AC800F-based DCS environments. Its stable signal processing ensures that critical control loops — including temperature, pressure, and flow regulation — maintain accuracy under high-load operating conditions.

In petrochemical and refinery operations, the YPQ102F YT204001-KF is integrated into distillation column control, reactor management, and pipeline monitoring systems. The board’s compatibility with PROFIBUS DP field devices allows seamless integration with smart transmitters, control valves, and safety instrumented systems (SIS) operating under IEC 61511 functional safety requirements.

In water and wastewater treatment facilities, the board manages pump sequencing, chemical dosing, and filtration process control within multi-station DCS architectures. Its modular design supports phased system expansion as treatment capacity grows, reducing capital expenditure on control infrastructure upgrades.

In mining and metallurgical processing, the YPQ102F YT204001-KF handles ore conveyor control, crusher management, and flotation circuit automation. The board’s robust construction and wide operating temperature range make it suitable for the demanding environmental conditions typical of mineral processing facilities.

In packaging and discrete manufacturing environments, the board coordinates with servo drives, vision systems, and robotic end-effectors through the AC800F control platform, enabling high-speed, high-precision production line management with full traceability and recipe management capability.

Product Compatibility FAQ

Q1: Is the ABB YPQ102F YT204001-KF compatible with both redundant and non-redundant AC800F configurations?
Yes. The YPQ102F YT204001-KF is designed to operate within both standard and redundant AC800F system architectures. In redundant configurations, it works in conjunction with redundancy modules such as the TB820V2 to support hot-standby operation, ensuring continuous process control without manual intervention during primary module failure. In non-redundant configurations, it functions as a standalone field control node with full I/O and communication capability.

Q2: What commissioning steps are required when integrating the YPQ102F YT204001-KF into an existing AC800F system?
Integration typically involves verifying backplane slot compatibility, confirming firmware version alignment with the resident PM803F or PM865 CPU, and configuring the I/O channel assignments within the AC800F engineering tool (Control Builder F). Signal loop checks should be performed for all connected analog and digital channels prior to live commissioning. ZYPLC provides pre-shipment functional testing and can supply configuration documentation to support on-site engineering teams.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance?
The warranty terms confirmed during quotation covers manufacturing defects, functional failures under normal operating conditions, and component-level quality issues identified during the warranty period. ZYPLC maintains a dedicated inventory of AC800F series components to support rapid replacement and minimize system downtime. For long-term maintenance planning, ZYPLC offers sourcing support for obsolete and hard-to-find ABB modules, ensuring that aging AC800F installations can be sustained without forced platform migration.
