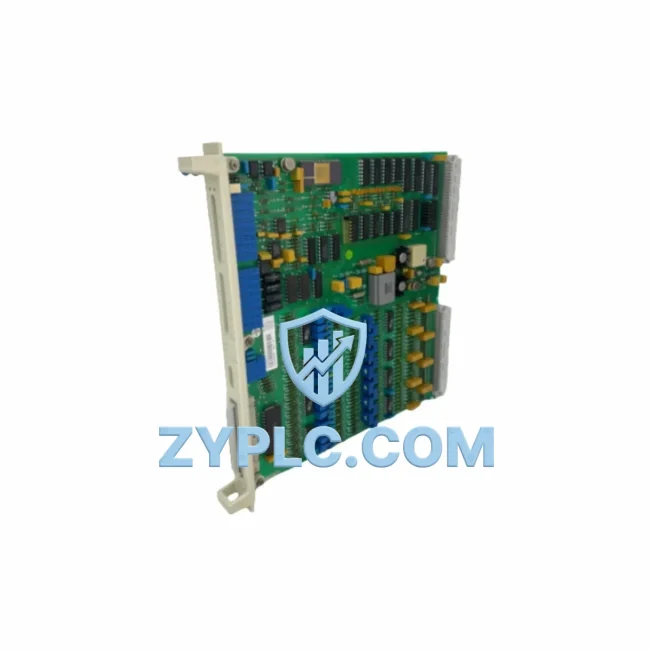

ABB YXU168F Industrial Network Interface for AC500 Systems

ABB YXU168F Industrial Network Interface for AC500 Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices and supervisory systems is not a luxury — it is the backbone of operational efficiency. The ABB YXU168F is a dedicated PROFIBUS DP Communication Interface Module engineered for the ABB AC500 PLC platform, delivering deterministic, high-speed protocol communication across complex industrial network architectures. Whether you are integrating remote I/O clusters, coordinating drive systems, or feeding real-time process data into a SCADA platform, the YXU168F provides the reliable data link that modern automation demands.

The YXU168F plugs directly into the AC500 CPU communication slot, enabling the PLC to act as a PROFIBUS DP master or slave on the fieldbus network. This eliminates the need for external protocol converters in most AC500-based architectures, reducing panel footprint, wiring complexity, and potential failure points. With a transmission rate of up to 12 Mbit/s and support for up to 125 PROFIBUS DP slave nodes, the module is equally suited to compact machine-level networks and large-scale plant-wide bus segments.

Network Communication Table

Connected Automation Data Flow

The ABB YXU168F sits at the heart of a layered industrial communication architecture. At the field level, it connects directly to PROFIBUS DP slave devices — including ABB CI840A remote I/O communication interfaces, ABB TB811 I/O terminal units, and distributed sensor clusters — polling process values at cyclic intervals defined by the DP master configuration. These values, whether analog signals from pressure transmitters, digital states from proximity switches, or diagnostic data from smart field instruments, are transferred to the AC500 CPU in real time without polling delays that would compromise control loop performance.

Moving up the automation pyramid, the AC500 CPU — equipped with the YXU168F on the PROFIBUS segment — exchanges data with ABB CP600 HMI panels via Ethernet, providing operators with live process visualization. Simultaneously, the PLC communicates upstream to ABB System 800xA SCADA/DCS platforms through OPC-UA or Modbus TCP gateways, enabling plant-wide supervisory control and historian data logging. In drive-intensive applications, the YXU168F manages cyclic communication with ABB ACS880 variable frequency drives and ACS580 general-purpose drives, transmitting speed references, torque commands, and fault status words across the PROFIBUS segment at millisecond cycle times.

For installations requiring network segmentation or protocol bridging, the YXU168F works alongside ABB CI873 PROFINET communication interface modules and CI854 PROFIBUS DP interface modules within the same AC500 rack, allowing engineers to build hybrid network topologies that bridge legacy PROFIBUS field devices with modern PROFINET or Industrial Ethernet backbones. Edge gateway devices — such as industrial IoT gateways running MQTT or REST APIs — can then aggregate data from the AC500 and forward it to cloud analytics platforms, completing the data chain from sensor to cloud without any manual data extraction.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A plant may operate legacy PROFIBUS DP field devices alongside newer PROFINET-capable controllers, with no native path for data to flow between them. The ABB YXU168F directly addresses this by providing a standards-compliant PROFIBUS DP interface on the AC500 platform, allowing engineers to retain existing field device investments while upgrading the control layer.

Data silos — where process information is trapped within a single machine or production cell and cannot be accessed by plant-level SCADA or MES systems — are eliminated when the YXU168F is deployed as part of a structured network architecture. By centralizing PROFIBUS DP communication through the AC500 CPU, all field data becomes accessible to upstream systems through the PLC’s Ethernet ports, removing the need for separate data acquisition hardware at each machine.

Remote monitoring and diagnostics are significantly enhanced. Maintenance engineers can use ABB Automation Builder engineering software to perform online diagnostics on the PROFIBUS segment, reading slave device status, bus load statistics, and communication error counters without physical access to the panel. This capability reduces mean time to repair (MTTR) in fault scenarios and supports predictive maintenance strategies by flagging degraded communication links before they cause production stoppages.

Production line transparency — a core requirement for Industry 4.0 compliance — is achieved by ensuring that every field device on the PROFIBUS segment contributes its data to the plant historian. With the YXU168F maintaining a stable, high-speed PROFIBUS DP link, OEE (Overall Equipment Effectiveness) calculations, energy consumption monitoring, and quality traceability records can all be populated automatically from live PLC data, without manual operator entry.

System expansion is straightforward. Additional PROFIBUS DP slave devices — remote I/O stations, smart sensors, or additional drive units — can be added to the bus segment up to the 125-node limit without hardware changes to the AC500 rack. GSD (General Station Description) files for new devices are imported into Automation Builder, and the YXU168F automatically incorporates them into the cyclic data exchange on the next PLC scan cycle.

Every ABB YXU168F unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying PROFIBUS DP communication establishment, data exchange integrity, and module self-diagnostics before dispatch. Units are covered by a 12-month warranty, with stock available for immediate global shipment.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS DP transmission speed supported by the YXU168F?
The YXU168F supports PROFIBUS DP transmission rates from 9.6 kbit/s up to 12 Mbit/s, with automatic baud rate detection. The actual operating speed is determined by the slowest device on the bus segment and the total cable length, in accordance with PROFIBUS EN 50170 specifications.

Q2: Can the YXU168F operate as both a PROFIBUS DP master and a slave?
Yes. The YXU168F is configurable as either a DP master or a DP slave, depending on the network topology requirements. In master mode, it manages cyclic data exchange with up to 125 slave devices. In slave mode, it allows the AC500 PLC to be integrated as a subordinate node within a higher-level PROFIBUS network controlled by a third-party master.

Q3: Is the YXU168F compatible with PROFIBUS DP-V1 and DP-V2 acyclic services?
Yes. The module supports PROFIBUS DP-V0 cyclic communication as well as DP-V1 acyclic read/write services for parameter access and DP-V2 isochronous mode for time-critical motion control applications, providing full compatibility with modern PROFIBUS slave devices that utilize extended DP services.

Q4: What warranty and supply conditions apply to the YXU168F?
All YXU168F units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and communication failures. Units are pre-tested prior to shipment and are available from stock for immediate global delivery. For volume pricing, lead time confirmation, or technical pre-sales support, contact ZYPLC directly.
