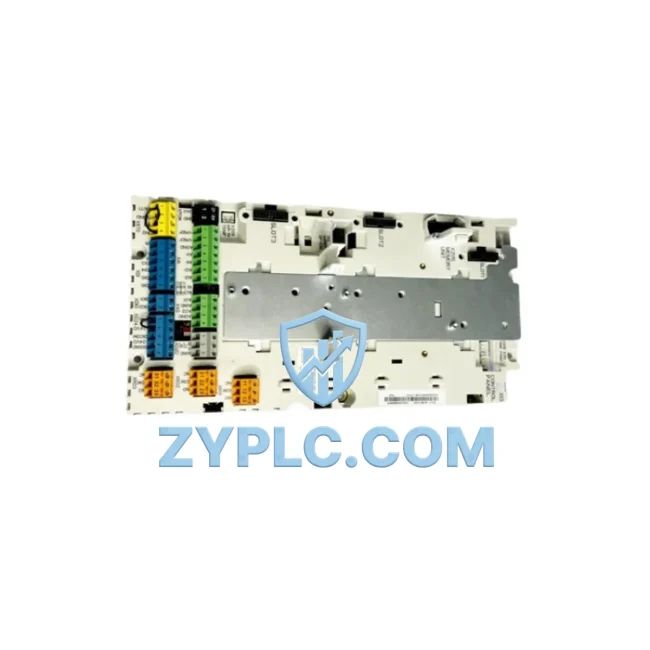

ABB ZCU-12 3AXD50000005751 Drive Control for ACS880

ABB ZCU-12 3AXD50000005751 Drive Control for ACS880: Compatibility and Replacement Notes

In modern industrial automation, the reliability of a complete drive system depends not on any single component, but on the seamless coordination between every layer of the control architecture. The ABB ZCU-12 (part number 3AXD50000005751) is the dedicated drive control unit for the ACS880 series, engineered to serve as the intelligent core of variable speed drive systems deployed across manufacturing, power generation, petrochemical processing, water treatment, mining, metallurgy, and continuous process control environments. Rather than functioning as a standalone module, the ZCU-12 is designed from the ground up to integrate within a layered automation hierarchy — bridging the gap between high-level PLC command logic and the physical execution of motor control at the field level.

The ACS880 platform, of which the ZCU-12 is a central element, is ABB’s industrial drives series built for demanding process applications. The ZCU-12 control unit manages the drive’s core functions: motor control algorithms, fieldbus communication, I/O signal processing, fault diagnostics, and parameter management. When deployed within a coordinated system architecture, it enables engineers to achieve consistent drive behavior, predictable response times, and simplified commissioning across multi-drive installations. Its compatibility with ABB’s Direct Torque Control (DTC) technology ensures high dynamic performance without the need for encoder feedback in many applications, reducing system complexity while maintaining precision.

From a system architecture perspective, the ZCU-12 occupies the drive control layer — positioned between the supervisory PLC or DCS and the power electronics of the inverter unit. It receives setpoint commands via fieldbus (PROFIBUS-DP, PROFINET, EtherNet/IP, Modbus RTU, or CANopen through optional fieldbus adapter modules such as the FPBA-01 PROFIBUS adapter or FENA-21 Ethernet adapter), processes them through its internal control logic, and outputs precise PWM signals to the IGBT power stage. This architecture ensures that the ZCU-12 acts as a deterministic, real-time controller capable of responding to process demands within milliseconds — a critical requirement in applications such as compressor control, pump regulation, conveyor synchronization, and crane hoist management.

Product Specification Table

System Compatibility Notes

The ZCU-12 achieves its full potential when integrated within a complete ACS880 system architecture. At the supervisory level, an ABB AC500 PLC or a third-party Siemens S7-300/S7-1500 controller issues speed and torque references via the fieldbus network. The ZCU-12 receives these commands through an optional FPBA-01 PROFIBUS-DP adapter or FENA-21 EtherNet/IP adapter, translating network telegrams into real-time motor control actions. This communication layer ensures deterministic cycle times and eliminates the latency that would otherwise compromise process synchronization in multi-drive systems.

At the power layer, the ZCU-12 interfaces directly with the ACS880 inverter unit’s IGBT gate driver board, coordinating the switching sequences that produce the variable frequency output delivered to the motor. In regenerative or multi-drive configurations, the ZCU-12 works in conjunction with the ACS880 common DC bus architecture, enabling energy sharing between motoring and braking drives — a design that reduces operating load and minimizes the need for braking resistors. The APBU-44C branching unit or similar DC bus components are typically deployed alongside the ZCU-12 in such architectures.

For I/O expansion, the ZCU-12 supports ABB’s FIO-01 digital I/O extension module and FIO-11 analog I/O extension module, allowing engineers to connect additional process signals — limit switches, pressure transmitters, temperature sensors — without routing them back to the main PLC I/O rack. This distributed I/O approach reduces cabinet wiring complexity and improves signal integrity in electrically noisy industrial environments. The FDIO-01 digital I/O module and FAIO-01 analog I/O module are also compatible within the ACS880 I/O extension framework.

At the human-machine interface layer, the ZCU-12 supports connection to the ABB ACS-AP-I or ACS-AP-W control panel, providing local parameter access, fault history review, and drive commissioning without requiring a laptop or engineering workstation. In distributed installations, the drive parameters managed by the ZCU-12 can be backed up and restored via the control panel’s memory function, significantly reducing recommissioning time following a control unit replacement. Integration with ABB’s Drive Composer PC tool via the USB port on the ZCU-12 enables advanced parameter management, signal monitoring, and adaptive programming for complex process applications.

Industrial Application Notes

In manufacturing and packaging lines, the ZCU-12 enables precise speed synchronization between multiple ACS880 drives controlling conveyor sections, winding stations, and tension control zones. Its DTC algorithm delivers fast torque response — critical in applications where web tension must be maintained within tight tolerances to prevent material breakage or quality defects. The fieldbus integration allows the line PLC to adjust drive parameters on-the-fly in response to product changeovers, eliminating manual intervention and reducing downtime.

In power generation and utilities, the ZCU-12 is deployed in pump and fan drive systems where energy efficiency is paramount. Its compatibility with the ACS880’s maintenance planning functions — including flux optimization and sleep/wake control — allows the drive system to reduce motor losses during partial-load operation. In water treatment facilities, multiple ZCU-12-equipped drives control variable-speed pumps across different process stages, with the supervisory SCADA system coordinating flow rates through the fieldbus network.

In petrochemical and process industries, the ZCU-12 supports applications requiring SIL-rated safety functions through the ACS880’s optional FSO-12 safety functions module. This allows the drive system to implement Safe Torque Off (STO), Safe Stop 1 (SS1), and Safe Limited Speed (SLS) functions without requiring external safety relays — simplifying the safety architecture and reducing panel space. The ZCU-12’s robust fault diagnostics and event logging capabilities support the maintenance and audit requirements typical of hazardous area installations.

In mining and metallurgy, the ZCU-12 is used in high-inertia applications such as ball mill drives, conveyor systems, and hoist controls. Its DTC technology provides full torque at zero speed — essential for controlled starting of heavily loaded conveyors — while the redundant control architecture supported by the ACS880 platform ensures continuous operation even in the event of a control unit fault, with automatic switchover to a standby ZCU-12 in dual-control configurations.

Product Compatibility FAQ

Q1: Is the ZCU-12 (3AXD50000005751) compatible with all ACS880 drive variants, and what fieldbus adapters are supported?
The ZCU-12 is the standard control unit for the ACS880-01, ACS880-07, ACS880-11, and ACS880-17 drive variants. Fieldbus communication is achieved through optional adapter modules mounted on the ZCU-12’s slot D: supported adapters include the FPBA-01 (PROFIBUS-DP), FENA-21 (EtherNet/IP / PROFINET / Modbus TCP), FCNA-01 (CANopen), and FDNA-01 (DeviceNet). Each adapter is hot-swappable during commissioning, and the ZCU-12 automatically detects the installed adapter type on power-up, simplifying system configuration in multi-protocol environments.

Q2: How does the ZCU-12 support long-term maintenance and spare parts management in large multi-drive installations?
The ZCU-12 stores all drive parameters internally in non-volatile memory, enabling a replacement unit to be commissioned by restoring the parameter backup from the ACS-AP control panel or Drive Composer tool — typically within 15–30 minutes. This parameter portability eliminates the need for a laptop on-site during emergency replacements and ensures that the replacement drive resumes operation with identical behavior to the original. ZYPLC maintains stock of the ZCU-12 (3AXD50000005751) with a 12-Month Warranty, supporting planned maintenance programs and emergency breakdown response for facilities operating ACS880 drive systems.

Q3: Can the ZCU-12 be used in redundant control architectures, and what are the installation requirements for dual-control configurations?
The ACS880 platform supports redundant control configurations in which two ZCU-12 units are installed — one active and one in standby — with automatic switchover logic managed by the drive’s internal firmware. This configuration is particularly relevant in critical process applications where drive downtime is not acceptable. Installation requires that both ZCU-12 units share the same parameter set and firmware version, and that the switchover logic is configured via the drive’s parameter group 96 (System Info) and group 95 (Hardware Configuration). ZYPLC’s technical team can provide commissioning guidance for redundant ZCU-12 architectures as part of the 12-Month Warranty support package.
