ABB ZCU-12L Drive Control Unit for ACS880

ABB ZCU-12L Drive Control Unit for ACS880

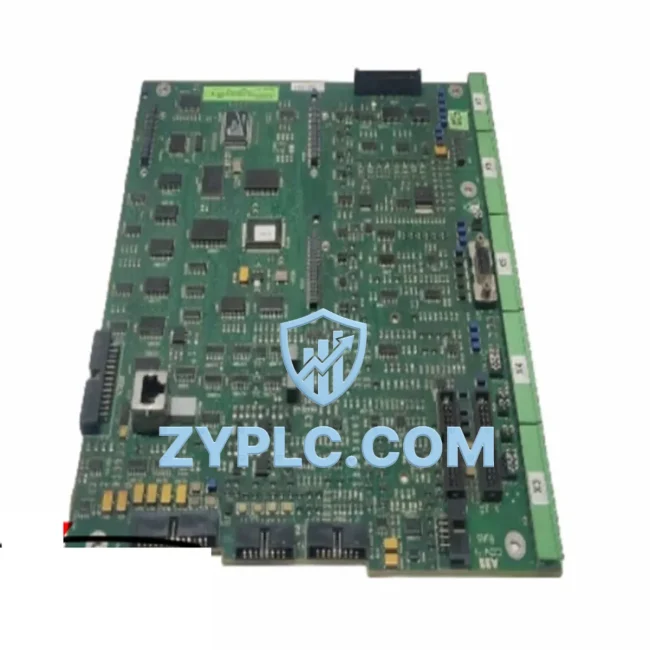

The ABB ZCU-12L is a dedicated drive control unit engineered for seamless integration within the ACS880 industrial drive platform. In modern layered automation architectures, the control unit is not merely a standalone component — it is the central intelligence that coordinates signal flow between the control layer, I/O layer, communication network, power supply layer, HMI interface, and the final execution layer. The ZCU-12L fulfills this role with precision, ensuring that every upstream command and downstream feedback signal is processed with the consistency and reliability that mission-critical industrial environments demand.

Designed to operate within ABB’s ACS880 single drive and multidrive cabinet systems, the ZCU-12L provides the processing backbone that governs motor control algorithms, encoder feedback interpretation, fieldbus communication handling, and real-time parameter management. Its architecture supports both direct torque control (DTC) and scalar control modes, making it adaptable across a wide range of motor types and load profiles. When deployed alongside the ACS880-01, ACS880-07, or ACS880-17 drive variants, the ZCU-12L ensures that the entire drive system operates as a unified, coherent platform rather than a collection of isolated modules.

Product Specification Table

System Compatibility Notes

The ZCU-12L does not operate in isolation. Its value is fully realized when it is considered as part of a coordinated system architecture. In a typical ACS880-based cabinet drive installation, the ZCU-12L interfaces directly with the ZPOW power supply board, which provides the regulated internal voltages required for stable control unit operation. Any instability at the power layer — such as ripple or undervoltage — will directly affect the ZCU-12L’s processing reliability, which is why the ZPOW and ZCU-12L are always evaluated together during system commissioning.

At the I/O layer, the ZCU-12L communicates with FAIO-01 analog I/O extension modules and FDIO-01 digital I/O modules, enabling the system to handle complex process signals including 4–20 mA analog references, digital start/stop commands, and fault relay outputs. These I/O modules plug directly into the ZCU-12L’s option slots, maintaining a clean, modular architecture that simplifies both initial installation and long-term maintenance.

For encoder-based closed-loop speed and torque control, the FEN-11 or FEN-21 encoder interface modules connect to the ZCU-12L, providing high-resolution shaft position feedback to the DTC algorithm. This is particularly important in applications such as winding machines, cranes, and extruders where precise torque linearity is required across the full speed range.

At the network layer, fieldbus adapter modules such as the FPBA-01 PROFIBUS-DP adapter or FENA-21 EtherNet/IP/PROFINET adapter mount onto the ZCU-12L’s option slots, enabling the drive to participate in plant-wide SCADA and DCS communication networks. This allows the ZCU-12L to receive speed references, torque limits, and control word commands directly from a Siemens S7-300/S7-400 PLC or ABB AC500 controller over a deterministic fieldbus, eliminating the need for hardwired analog signal cables and reducing susceptibility to electrical noise.

At the HMI layer, the ACS-AP-I or ACS-AP-W control panel connects to the ZCU-12L via the panel bus port, providing operators with real-time drive status, parameter access, and fault history. In remote monitoring configurations, the ZCU-12L’s Ethernet service port enables connection to ABB’s Drive Composer Pro software for advanced diagnostics, trend logging, and parameter backup — a critical capability for predictive maintenance programs in continuous process industries.

Industrial Application Notes

The ZCU-12L finds application across a broad spectrum of industrial sectors where reliable, scalable drive control is essential to process continuity.

In power generation and utilities, the ZCU-12L is deployed within ACS880 multidrives controlling boiler feed pumps, cooling water circulation pumps, and induced draft fans. Its ability to maintain stable DTC operation under fluctuating load conditions makes it well-suited for variable-torque pump and fan applications where energy efficiency is a primary operational objective.

In oil, gas, and petrochemical facilities, the ZCU-12L supports compressor drives and pipeline pump stations where continuous, uninterrupted operation is mandatory. The unit’s non-volatile parameter storage ensures that drive configuration is preserved through power cycling events, and its compatibility with SIL-rated safety function modules supports functional safety requirements under IEC 62061 and ISO 13849.

In metals and mining applications, the ZCU-12L is integrated into ACS880 multidrives controlling conveyor systems, ball mills, and hoisting equipment. The DTC control mode provides the high starting torque and precise speed regulation required for heavy-load starting cycles, while the modular I/O architecture allows the system to interface with process instrumentation including load cells, speed sensors, and temperature transmitters.

In water and wastewater treatment plants, the ZCU-12L enables energy-optimized pump control through PID process control functions embedded within the drive firmware. Multiple ZCU-12L-equipped drives can be coordinated in a master-follower configuration, enabling pump staging and load balancing across parallel pump trains without requiring external PLC logic.

In packaging and material handling lines, the ZCU-12L supports high-cycle-rate applications including servo-class positioning, tension control, and synchronization between multiple drive axes. Its fast communication cycle with the fieldbus adapter ensures that speed reference updates from the line controller are executed within the drive’s control cycle time, maintaining tight synchronization across multi-axis systems.

Product Compatibility FAQ

Q1: Is the ZCU-12L compatible with both ACS880 and ACS800 drive platforms?
The ZCU-12L is primarily designed for the ACS880 drive platform. While certain ACS800 variants share architectural similarities, direct interchangeability is not guaranteed without verification of the specific drive type code and hardware revision. ZYPLC recommends confirming the target drive’s type code before ordering. Our technical team can assist with compatibility verification at no charge.

Q2: Can the ZCU-12L be replaced in the field without full drive recommissioning?
Yes. The ZCU-12L supports parameter backup and restore via the ACS-AP control panel or Drive Composer Pro software. Before replacement, the existing parameter set should be backed up to the control panel memory or a PC. After installing the replacement ZCU-12L, parameters can be restored in full, significantly reducing recommissioning time. The 12-Month Warranty provided by ZYPLC covers the replacement unit from the date of shipment, ensuring that your maintenance budget is protected.

Q3: What fieldbus protocols does the ZCU-12L support, and how are they configured?
The ZCU-12L supports all major industrial fieldbus protocols through ABB’s FXXX series option modules, including PROFIBUS-DP (FPBA-01), PROFINET/EtherNet/IP (FENA-21), Modbus RTU (FMBA-01), and DeviceNet (FDNA-01). Protocol selection and node addressing are configured through the drive’s parameter groups 50–54 using the ACS-AP panel or Drive Composer Pro. ZYPLC supplies both the ZCU-12L and compatible fieldbus adapter modules, enabling customers to source a complete, pre-verified communication stack from a single supplier.
