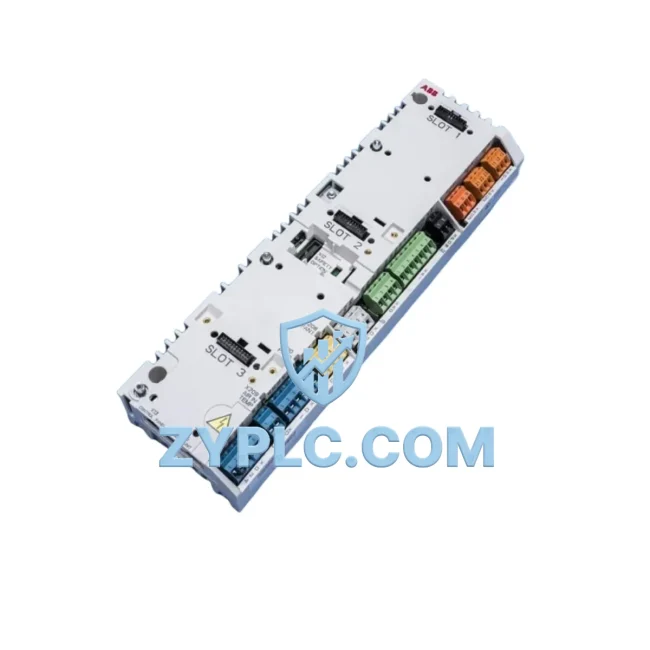

ABB ZCU-14 3AXD50000182992 Industrial Network Interface for ACS800

ABB ZCU-14 3AXD50000182992: Industrial Data Link for ACS800 Drive Systems

The ABB ZCU-14 (3AXD50000182992) is a high-performance drive control unit engineered for the ACS800 series variable frequency drive platform. In modern smart factory environments, the ZCU-14 serves as the critical intelligence layer between field-level power electronics and upper-level automation networks — bridging real-time motor control data with SCADA systems, PLC controllers, and HMI interfaces across the plant floor.

As industrial sites evolve toward fully connected architectures, the ZCU-14 enables seamless data flow from the drive’s inverter section through to supervisory control layers. Whether integrated with an ABB AC500 PLC via DDCS fiber-optic communication or connected to a Profibus DP network through an RPBA-01 adapter module, the ZCU-14 ensures that torque references, speed feedback, fault codes, and energy consumption data are continuously available to the control system in real time.

Network Communication Table

Connected Automation Data Flow

In a typical ACS800 drive system deployment, the ZCU-14 sits at the heart of the drive’s control architecture, managing the data pipeline between the motor, the drive’s AINT inverter control board, and the plant-wide automation network. Signal acquisition begins at the motor encoder or resolver, where speed and position data are fed back to the ZCU-14 for closed-loop vector control. This real-time feedback loop is essential for high-precision applications such as paper machine drives, crane hoisting systems, and extruder lines.

Upstream, the ZCU-14 communicates with an ABB AC500 PLC (such as the PM591 or PM595 CPU module) via the DDCS fiber-optic link, transmitting drive status words, actual speed values, and fault registers at millisecond cycle times. For sites running a Profibus DP backbone, an RPBA-01 Profibus adapter mounted on the ZCU-14’s fieldbus slot enables the drive to appear as a standard DP slave on the network, allowing a Siemens S7-300 or S7-400 PLC to read and write drive parameters directly through the bus.

Where EtherNet/IP connectivity is required — for example, when integrating with a Rockwell Automation ControlLogix system or an Ignition SCADA platform — the RETA-01 EtherNet/IP adapter pairs with the ZCU-14 to deliver drive data over standard TCP/IP infrastructure. This enables plant engineers to monitor drive load, output frequency, DC bus voltage, and thermal status from any SCADA workstation or MES dashboard without additional protocol conversion hardware.

For multi-drive systems, the ZCU-14 supports ABB’s DrivesBus DDCS ring topology, where multiple ACS800 drives — including AINT-02 inverter units and AINP-01 input sections — are daisy-chained via fiber-optic cables and coordinated by a master drive or an NDBU-95 DDCS branching unit. This architecture is common in coordinated winder, unwinder, and sectional drive applications where precise speed ratio control between multiple motors is critical.

At the field level, the ZCU-14’s standard I/O terminals interface directly with proximity sensors, pressure transmitters, and temperature probes, while its analog output channels can drive panel meters or feed signals to a Beijer Electronics HMI or Weintek cMT series touchscreen for local operator visualization. Remote diagnostic access is supported through the ABB Drive Composer software tool, which connects to the ZCU-14 via the drive’s USB service port or through the fieldbus network, enabling parameter backup, fault history analysis, and firmware updates without interrupting production.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial installations is protocol fragmentation — drives, PLCs, remote I/O modules, and SCADA systems from different generations and vendors that cannot communicate natively. The ABB ZCU-14 directly addresses this by supporting multiple fieldbus adapter options in a single hardware slot, allowing plant engineers to select the protocol that matches their existing network infrastructure without replacing the drive or rewiring the control panel.

Data silos are eliminated when the ZCU-14 is integrated into a unified automation architecture. Drive parameters that were previously accessible only through a local keypad — such as the ACS800 CDP312R control panel — can now be read and written remotely by the SCADA system, enabling centralized alarm management, predictive maintenance scheduling, and energy reporting across all drive assets on the production line.

For remote monitoring applications, the ZCU-14’s fieldbus connectivity allows drive fault events to be forwarded automatically to the plant’s alarm management system, triggering maintenance work orders in the CMMS without operator intervention. Combined with an edge gateway such as the Moxa MGate MB3170 or an HMS Anybus X-gateway, the ZCU-14 can bridge legacy DDCS data into modern IIoT platforms, enabling cloud-based analytics and remote diagnostics from anywhere in the world.

Production line transparency is further enhanced by mapping ZCU-14 drive data — including output power, running hours, and fault counters — into the plant’s OEE (Overall Equipment Effectiveness) reporting system. This gives production managers real-time visibility into drive health and availability, supporting proactive maintenance strategies that reduce unplanned downtime and extend equipment service life.

System expansion is straightforward: additional ACS800 drives equipped with ZCU-14 control units can be added to the DDCS ring or Profibus segment without modifying the existing network configuration, making the ZCU-14 a scalable foundation for phased automation upgrades.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB ZCU-14 (3AXD50000182992) support?
The ZCU-14 natively supports ABB’s DDCS fiber-optic protocol for drive-to-drive and drive-to-PLC communication. Additional fieldbus protocols — including Profibus DP, DeviceNet, Modbus RTU, and EtherNet/IP — are supported through optional adapter modules (RPBA-01, RDNA-01, RMBA-01, RETA-01) installed in the ZCU-14’s fieldbus adapter slot.

Q2: Is the ZCU-14 compatible with third-party PLCs and SCADA systems?
Yes. Via its fieldbus adapter options, the ZCU-14 can integrate with PLCs from Siemens, Rockwell Automation, Schneider Electric, and other major vendors, as well as SCADA platforms such as Ignition, WinCC, and iFIX. EtherNet/IP and Profibus DP adapters provide the broadest compatibility with modern automation infrastructure.

Q3: How is network stability ensured in multi-drive DDCS ring configurations?
The DDCS fiber-optic ring topology provides inherent noise immunity and electrical isolation between drives, eliminating ground loop interference common in copper-based networks. The ZCU-14 supports automatic ring fault detection, and the NDBU-95 branching unit can be used to create redundant star topologies for critical applications where network continuity is essential.

Q4: What does the 12-month warranty cover, and has the unit been tested before shipment?
Every ABB ZCU-14 unit supplied by ZYPLC undergoes functional testing prior to shipment, verifying communication interfaces, I/O channels, and firmware integrity. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Our technical team provides pre-sales application support and post-sales troubleshooting assistance to ensure successful integration into your automation system.
