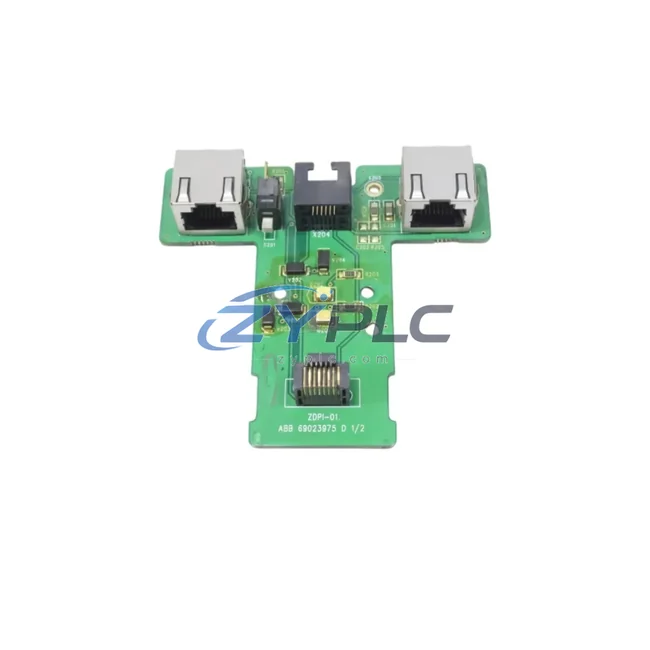

ABB ZDPI-01 3AUA0000058712 Encoder Interface for ACS

ABB ZDPI-01 3AUA0000058712 Encoder Interface for ACS Series

The ABB ZDPI-01 (part number 3AUA0000058712) is a pulse encoder adapter board engineered for seamless integration within ABB ACS series variable frequency drive architectures. Rather than functioning as a standalone accessory, the ZDPI-01 occupies a critical position in the closed-loop control layer of modern industrial automation systems — bridging the gap between rotary encoder feedback devices and the drive’s internal speed and position regulation logic. In multi-axis or process-critical environments, the accuracy and reliability of encoder signal transmission directly determines the quality of torque control, speed synchronization, and dynamic response across the entire drivetrain.

Designed to mount directly onto compatible ACS drive control boards, the ZDPI-01 accepts incremental pulse encoder signals and conditions them for real-time processing by the drive’s firmware. This hardware-level integration eliminates the latency and signal degradation risks associated with external signal converters, ensuring that the drive’s closed-loop algorithms receive clean, time-stamped feedback data at every control cycle. For applications demanding sub-millisecond speed regulation — such as winding lines, extruders, hoists, and precision conveyors — this level of signal fidelity is non-negotiable.

Within a complete ABB ACS control architecture, the ZDPI-01 works in close coordination with a range of platform components. The ACS880 primary control unit or ACS580 drive module provides the processing backbone, while the ZPOW-01 power supply module ensures stable auxiliary voltage to the adapter and its connected encoder. The RDCO-03 or RDCO-04 communication adapter modules handle fieldbus connectivity — typically via PROFIBUS-DP or Modbus RTU — allowing the drive system to report encoder-derived speed and position data upstream to a PLC or DCS. On the I/O layer, RAIO-01 analog I/O extension modules and RDIO-01 digital I/O modules complement the encoder feedback channel by providing additional process variable inputs and output control signals. The RCAN-01 CANopen adapter further extends the system’s network integration capability in multi-drive cabinet configurations.

From a system architecture perspective, the ZDPI-01 enables the ACS drive to transition from open-loop scalar control (V/Hz) to full closed-loop vector control, unlocking significantly higher dynamic performance and torque accuracy at low speeds. This is particularly valuable in applications where load inertia varies — such as paper machine sections, metal rolling mills, or centrifuge drives — where open-loop control would result in unacceptable speed droop or instability. The adapter’s compatibility with standard HTL and TTL incremental encoders also means that existing encoder infrastructure can be retained when upgrading drive hardware, reducing retrofit costs and commissioning time.

In layered automation architectures, the ZDPI-01 sits at the intersection of the field device layer and the drive control layer. Above it, SCADA systems and DCS platforms — connected via the drive’s fieldbus adapter — consume the speed and position data for process optimization and alarm management. Below it, the physical encoder mounted on the motor shaft or driven machine provides the raw pulse train that the ZDPI-01 conditions and forwards. This vertical integration across automation layers is what makes the ZDPI-01 not merely a signal adapter, but a structural component of the control hierarchy.

For cabinet-level installations, the ZDPI-01 is typically deployed alongside ABB’s ACS drive mounting frames, with encoder cables routed through dedicated cable management channels to minimize EMI interference. Proper shielding and grounding of encoder cables — in accordance with ABB’s installation guidelines — is essential to maintaining signal integrity in electrically noisy environments such as steel plants, chemical processing facilities, and water treatment stations. The adapter’s compact form factor and direct plug-in installation onto the drive’s option slot simplify both initial commissioning and future maintenance interventions.

Long-term maintainability is a core design principle of the ZDPI-01. Because it is a discrete, replaceable module rather than an integrated circuit on the main control board, field replacement can be performed without returning the entire drive unit for repair. Maintenance engineers can carry ZDPI-01 spares as part of a standard drive maintenance kit, enabling rapid restoration of closed-loop control capability following an adapter fault. This modularity also supports predictive maintenance strategies, where periodic inspection of the adapter’s connector integrity and signal quality can be incorporated into scheduled drive servicing routines.

All ZDPI-01 units supplied by ZYPLC are sourced from verified industrial channels, subjected to functional verification testing prior to dispatch, and covered by a warranty terms confirmed during quotation. Each unit is tested for encoder signal pass-through integrity, power supply compatibility, and mechanical connector condition. This quality assurance process ensures that every adapter delivered to your facility is ready for immediate installation and commissioning, without the risk of latent defects that can compromise system availability in critical production environments. system integration support is available for customers requiring application-specific configuration guidance, helping engineering teams validate encoder parameter settings within their specific ACS drive firmware version and control application.

Product Specification Table

System Compatibility Notes

The ZDPI-01 achieves its full performance potential when deployed as part of a coordinated ABB ACS drive system rather than as an isolated component. In a typical closed-loop drive cabinet, the ACS880-01 single drive module serves as the primary power conversion and control unit, with the ZDPI-01 installed in its option slot 1 or slot 2 position to enable encoder feedback. The ZPOW-01 auxiliary power supply module provides the regulated +24 VDC required by both the adapter and the connected encoder, ensuring stable operation even during main supply fluctuations.

Fieldbus connectivity is handled by the FPBA-01 PROFIBUS-DP adapter module or the FENA-21 Ethernet/IP and PROFINET adapter, which transmit drive status, speed reference, and encoder-derived position data to the plant PLC — typically an ABB AC500 or Siemens S7-300/400 series controller. On the I/O expansion side, the RAIO-01 analog I/O extension module provides additional 4–20 mA process inputs, while the RDIO-01 digital I/O module handles start/stop, fault reset, and speed preset signals from the control panel or safety relay system. For multi-drive synchronization applications, the RDCO-04 drive-to-drive communication adapter enables master-follower speed coordination between multiple ACS drives sharing a common mechanical load — a configuration where the ZDPI-01’s encoder feedback accuracy is critical to maintaining synchronization within tight tolerances.

At the human-machine interface layer, the ACS-AP-I assistant control panel provides local parameter access and diagnostic display, allowing commissioning engineers to verify encoder pulse counts, speed feedback values, and closed-loop control performance directly at the drive cabinet without requiring a laptop connection. This combination of hardware components — drive module, encoder adapter, power supply, fieldbus adapter, I/O modules, communication adapter, and HMI panel — constitutes a complete, production-ready closed-loop drive system built around the ZDPI-01 as its feedback foundation.

Industrial Application Notes

The ZDPI-01 encoder adapter finds application across a broad spectrum of industrial sectors where precise speed and position control is a process requirement rather than a performance enhancement. In manufacturing and assembly automation, the adapter enables ACS drives to maintain exact conveyor speeds during product transfer between stations, ensuring consistent cycle times and preventing product damage from speed mismatches at transfer points. In metal processing and rolling mills, closed-loop speed control via the ZDPI-01 allows rolling stands to maintain precise surface speed ratios, directly affecting product thickness consistency and surface quality.

In the power generation and utilities sector, ACS drives equipped with ZDPI-01 adapters control boiler feed pumps, cooling water circulation pumps, and induced draft fans with the speed accuracy required to meet process efficiency targets and grid frequency response requirements. Water and wastewater treatment facilities deploy the ZDPI-01 in pump and blower drive systems where flow rate precision and maintenance planning are managed through closed-loop PID control loops that depend on accurate speed feedback. In oil, gas, and petrochemical processing, the adapter supports compressor and agitator drive systems operating in hazardous area cabinets, where the reliability of the encoder feedback channel is directly linked to process safety and regulatory compliance.

For mining and minerals processing applications — including conveyor drives, crusher drives, and hoist systems — the ZDPI-01 provides the speed feedback accuracy needed for load-sharing control between parallel drives and for anti-rollback protection in inclined conveyor systems. In packaging and printing machinery, the adapter enables register control and web tension management by providing the drive with real-time shaft speed data that the tension control algorithm uses to adjust torque output dynamically. Across all these sectors, the warranty terms confirmed during quotation and system integration support provided by ZYPLC ensure that engineering teams can deploy the ZDPI-01 with confidence in both the hardware quality and the application configuration support available throughout the system’s operational life.

Product Compatibility FAQ

Q1: Is the ZDPI-01 compatible with all ACS series drives, and how do I verify option slot compatibility before ordering?
The ZDPI-01 is designed for use with ABB ACS series drives that feature the standard option slot interface, including the ACS880, ACS580, ACS550, and ACS800 platforms. Compatibility depends on the specific drive type code and firmware version. Before ordering, customers should confirm the drive’s option slot designation (slot 1, slot 2, or slot 3) and cross-reference with ABB’s option module compatibility matrix for their drive type code. ZYPLC’s technical team can assist with compatibility verification as part of the system integration support service, ensuring the correct adapter variant is selected for your specific drive configuration.

Q2: What encoder specifications are supported by the ZDPI-01, and can it interface with existing third-party encoders already installed on the machine?
The ZDPI-01 supports standard incremental pulse encoders with HTL (High Threshold Logic, 10–30 VDC) and TTL (5 VDC) output levels, with A, B, and Z channel inputs for direction detection and zero-pulse reference. Maximum input frequency is application-dependent but typically supports encoders up to 1024 PPR at full motor speed without signal degradation. Third-party encoders from manufacturers such as Heidenhain, Sick, and Baumer are generally compatible provided their electrical output specifications match the adapter’s input requirements. Customers are advised to verify encoder supply voltage and output type against the ZDPI-01 datasheet before installation to avoid signal level mismatches that could cause erratic speed feedback.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims or technical support during the commissioning phase?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects, functional failures under normal operating conditions, and connector integrity issues identified during the warranty period. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified operating environment. For warranty claims, customers should contact ZYPLC with the unit’s serial number, purchase documentation, and a description of the fault symptom. During the commissioning phase, system integration support is available to assist with parameter configuration, encoder signal verification using the drive’s diagnostic tools, and closed-loop tuning guidance — helping engineering teams achieve stable speed control performance from first power-up. Contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com for warranty and technical support inquiries.
