ABB ZINT-541 3AUA0000065896R PROFINET Interface for ACS880

ABB ZINT-541 3AUA0000065896R PROFINET Interface for ACS880: Compatibility and Replacement Notes

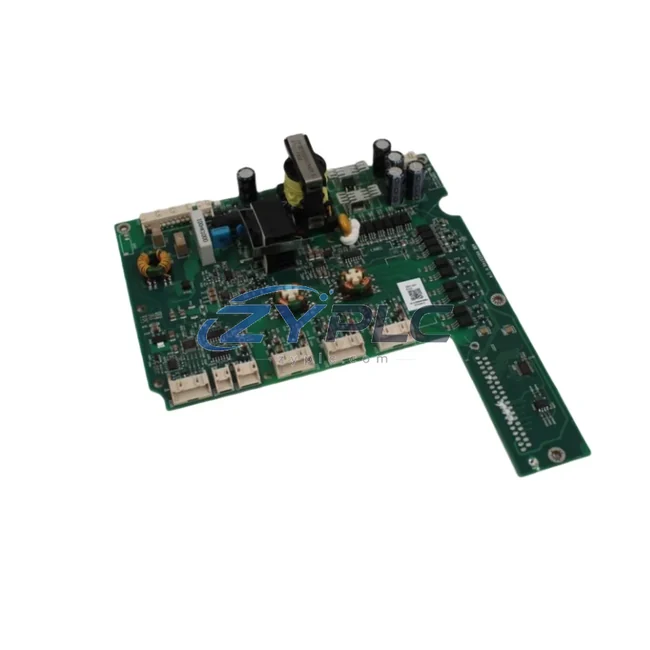

The ABB ZINT-541 (part number 3AUA0000065896R) is a dedicated PROFINET communication board engineered for seamless integration into the ACS880 industrial drive series. Within a layered automation architecture, this module occupies a critical position at the network communication layer, bridging the drive’s internal control logic with the plant-wide PROFINET IO network managed by a supervisory PLC or DCS controller. Its role is not merely connectivity — it is the enabler of real-time cyclic data exchange, deterministic command delivery, and synchronized motion coordination across the entire control hierarchy.

In modern industrial control system design, the communication interface module defines the quality of integration between the drive layer and the control layer. The ZINT-541 supports PROFINET IO conformance class B, enabling both cyclic process data and acyclic parameter access via the PROFINET protocol. This allows the ACS880 drive to participate fully in a PROFINET-based automation cell, receiving speed references, torque commands, and control words from the master controller while returning actual values, fault codes, and status words in real time. The result is a tightly coupled, high-availability drive network that supports predictive maintenance, remote diagnostics, and centralized supervisory control without additional hardware gateways.

From a system architecture perspective, the ZINT-541 is installed into the option slot of the ACS880 drive frame, making it a native extension of the drive’s internal DDCS (Drive-to-Drive Communication System) architecture. This native integration eliminates the latency and reliability risks associated with external protocol converters, ensuring that the drive responds to network commands within the deterministic cycle times required by high-speed process control applications. Engineers designing systems for continuous process industries — including chemical processing, pulp and paper, metals, and water treatment — will find that the ZINT-541 provides the communication backbone necessary for coordinated multi-drive operation.

Product Specification Table

System Compatibility Notes

The ZINT-541 achieves its full value when considered within the complete ACS880 control system architecture rather than as a standalone component. At the controller layer, a Siemens S7-1500 PLC or ABB AC500 PLC series controller acts as the PROFINET IO master, issuing cyclic setpoints and receiving drive feedback at scan rates as low as 1 ms. The ZINT-541 connects the ACS880 drive directly to this master without any intermediate gateway, preserving signal integrity and minimizing cycle jitter.

At the power layer, the ACS880 drive is typically paired with an ABB APOW-01 power supply unit or a compatible DC bus supply module, ensuring stable DC link voltage under variable load conditions. The ZINT-541 communicates drive load data back to the controller, enabling dynamic power management strategies across multi-drive installations. In cabinet-based systems, the ACS880 multidrive architecture uses a shared DC bus with individual inverter modules (such as the ACS880-104 inverter unit), and the ZINT-541 provides unified PROFINET visibility for all inverter nodes through a single network segment.

For I/O coordination, the ACS880 drive’s onboard I/O — including the AIAO-01 analog I/O extension module and ADIO-01 digital I/O extension module — works in conjunction with the ZINT-541 to provide local signal conditioning while the PROFINET interface handles high-level command and status exchange. This layered I/O strategy reduces network traffic while maintaining full supervisory visibility. In applications requiring safety integration, the FSO-21 safety functions module can be installed alongside the ZINT-541 in the drive’s option slots, enabling STO (Safe Torque Off) and SS1 (Safe Stop 1) functions to be coordinated through the same PROFINET network using PROFIsafe protocol extensions.

At the human-machine interface layer, an ABB CP600 HMI panel or a Siemens TP1200 Comfort Panel connected to the PROFINET network can display real-time drive parameters — including output frequency, motor current, DC link voltage, and fault history — sourced directly from the ACS880 via the ZINT-541. This eliminates the need for dedicated drive panel wiring and simplifies cabinet design. For distributed installations, the ZINT-541’s integrated two-port switch supports daisy-chain network topology, reducing cabling costs and simplifying network commissioning across multi-drive lines.

Industrial Application Notes

The ZINT-541 is deployed across a wide range of industrial sectors where PROFINET-based drive integration is the standard architecture. In manufacturing and automotive assembly, the module enables coordinated multi-axis conveyor control, where multiple ACS880 drives must synchronize speed and torque in real time under PLC supervision. The PROFINET cyclic data exchange ensures that speed references are updated every scan cycle, eliminating the speed drift that can occur with analog reference signals.

In power generation and utilities, the ZINT-541 supports integration of ACS880 drives into SCADA-connected PROFINET networks for pump and fan control in cooling water systems, boiler feed systems, and auxiliary power systems. The acyclic parameter access capability allows maintenance engineers to read and write drive parameters remotely without interrupting the process, reducing planned downtime during parameter optimization campaigns.

In petrochemical and oil & gas applications, the ZINT-541 enables the ACS880 drive to participate in safety-instrumented system architectures where drive status must be continuously monitored by the safety PLC. The PROFINET IO conformance class B certification ensures compatibility with leading safety controllers, and the module’s operating temperature range supports installation in climate-controlled drive rooms adjacent to process areas.

In water and wastewater treatment, multiple ACS880 drives equipped with ZINT-541 modules are networked to a central PROFINET master, enabling centralized pump scheduling, maintenance planning, and fault alarming across large pumping stations. The daisy-chain topology supported by the ZINT-541’s integrated switch simplifies network installation in long pump galleries where star topology cabling would be impractical.

In mining and minerals processing, the ZINT-541 supports high-power ACS880 drives used in conveyor, crusher, and mill applications, where reliable communication between the drive and the process control system is critical for production continuity. The module’s robust design and wide operating temperature range ensure reliable operation in the harsh electromagnetic environments typical of mining facilities.

Product Compatibility FAQ

Q1: Is the ZINT-541 compatible with all ACS880 drive frame sizes, and can it coexist with other option modules in the same drive?
The ZINT-541 is compatible with ACS880 single drives and multidrive inverter modules across all standard frame sizes (R1 through R11 and cabinet-mounted variants). It installs into the drive’s option slot 1 or slot 2 depending on the frame configuration. It can coexist with other option modules such as the FSO-21 safety functions module, AIAO-01 analog I/O extension, and ADIO-01 digital I/O extension, provided that slot assignments are planned according to the ACS880 hardware manual. Engineers should verify the specific slot compatibility matrix for their drive frame size before finalizing the option module configuration.

Q2: What steps are required to commission the ZINT-541 in a PROFINET IO network, and how is the drive’s GSDML file managed?
Commissioning the ZINT-541 requires importing the ABB-provided GSDML (General Station Description Markup Language) file into the PROFINET engineering tool (such as Siemens TIA Portal or Rockwell Studio 5000 with PROFINET support). The GSDML file defines the drive’s IO data structure, including the process data words for speed reference, control word, status word, and actual value feedback. After importing the GSDML, the engineer assigns the drive’s PROFINET device name using the engineering tool’s online device naming function, then downloads the IO configuration to the PLC. The ACS880 drive parameters for PROFINET communication (parameter group 51 in the ACS880 firmware) must be configured to match the IO data mapping defined in the GSDML. ZYPLC provides pre-sales technical support to assist engineers with GSDML configuration and parameter setup as part of the service package.

Q3: What does the cover for the ZINT-541, and what is the process for warranty claims or long-term spare parts supply?
ZYPLC’s for the ZINT-541 covers manufacturing defects, component failures under normal operating conditions, and firmware-related communication faults attributable to the module hardware. The warranty period begins from the date of shipment. In the event of a warranty claim, ZYPLC’s technical team conducts a remote diagnostic assessment to determine the fault cause before initiating a replacement or repair process. For long-term maintenance planning, ZYPLC maintains dedicated inventory of ZINT-541 modules and compatible ACS880 option modules to support customers requiring fast replacement in production-critical applications. Customers with ongoing maintenance contracts can arrange priority stock reservation. For warranty claims or spare parts enquiries, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691.
