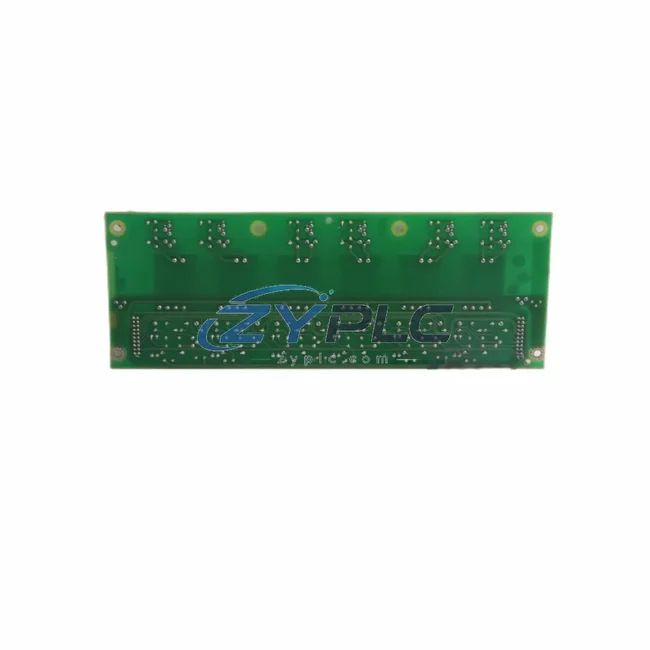

The ABB ZINT-592 is a dedicated interface board engineered for seamless integration within the ACS880 drive architecture. Designed to bridge the communication gap between the drive’s internal control layer and external fieldbus or automation networks, the ZINT-592 plays a critical role in maintaining system coherence across multi-tier industrial control environments. Whether deployed in a standalone drive cabinet or embedded within a distributed control system, this interface board ensures that signal flow, command execution, and diagnostic feedback remain consistent and reliable across every layer of the automation hierarchy.

In modern industrial control architecture, the interface layer is not a peripheral concern — it is the connective tissue that determines whether a system operates as a unified whole or as a collection of isolated components. The ZINT-592 addresses this directly by providing a stable, low-latency communication path between the ACS880 drive platform and the broader control infrastructure. When paired with the ACS880-01 or ACS880-07 cabinet-built drives, the board enables real-time parameter exchange, fault relay, and status monitoring without introducing communication bottlenecks that could compromise production continuity.

Product Specification Table

System Compatibility Notes

The ZINT-592 does not operate in isolation. Its value is realized when it functions as part of a coordinated control system where every layer — from the CPU down to the field device — communicates with precision and consistency. In a typical ACS880-based drive system, the ZINT-592 occupies the option slot of the drive and interfaces directly with the drive’s RDCU-02C control unit, enabling the host PLC or DCS to issue speed references, torque commands, and enable signals through a standardized fieldbus protocol.

At the control layer, the ZINT-592 connects to automation controllers such as the ABB AC500 PLC series or third-party Siemens S7-300/S7-400 systems via PROFIBUS-DP, allowing the drive to appear as a standard fieldbus node. This integration eliminates the need for hardwired analog signal chains, reducing wiring complexity and improving signal integrity across long cable runs in large plant environments. The FPBA-01 PROFIBUS adapter or FENA-21 EtherNet/IP adapter can be used in conjunction with the ZINT-592 to extend protocol compatibility depending on the network topology in use.

At the I/O layer, the ZINT-592 works alongside the AIMA-01 I/O extension module and AINT-02 inverter interface boards to distribute control signals across multi-drive configurations. In multi-drive cabinet systems — such as those built around the ACS880-107 or ACS880-207 regenerative drive platforms — the ZINT-592 ensures that each drive unit receives synchronized command data from the master controller, maintaining coordinated motion profiles and preventing torque conflicts between parallel drive axes.

For human-machine interface integration, the ZINT-592 supports diagnostic data forwarding to ABB CP600 HMI panels or third-party SCADA systems via the fieldbus backbone. Operators can monitor drive status, fault codes, and energy consumption data in real time without requiring direct serial connections to each drive unit. This centralized visibility is essential in facilities where drive cabinets are distributed across multiple production zones.

At the power and redundancy layer, the ZINT-592 is compatible with drive systems equipped with the APBU-44C branching unit, which supports parallel inverter configurations for high-power applications. In redundant drive architectures, the interface board’s ability to maintain communication continuity during switchover events is critical to preventing unplanned production stops. The board’s internal watchdog and fault reporting functions ensure that any communication interruption is immediately flagged to the supervisory control layer.

Industrial Application Notes

The ZINT-592 finds application across a wide range of process-critical industries where drive communication reliability directly impacts production output and safety compliance. In the petrochemical sector, it is used to integrate ACS880 drives controlling compressor motors and pump stations into DCS platforms, where precise speed regulation and fault transparency are non-negotiable. In water treatment facilities, the board enables remote speed control of aeration blowers and sludge pump drives from centralized SCADA systems, reducing the need for on-site operator intervention.

In metallurgical and mining applications, the ZINT-592 supports the integration of high-power ACS880 drives into multi-axis hoisting and conveyor systems, where coordinated torque control across multiple drive nodes is essential for load balancing and mechanical safety. In packaging and discrete manufacturing lines, the board enables tight synchronization between drive-controlled conveyor sections and upstream PLC logic, ensuring that product flow rates match the line’s designed throughput without manual speed adjustments.

In power generation and utility substations, the ZINT-592 is deployed in auxiliary drive systems — such as cooling fan drives and feedwater pump drives — where integration with the plant’s protection relay network and maintenance planning system is required. The board’s fieldbus connectivity allows these drives to participate in load-shedding schemes and demand-response programs managed by the plant’s energy control system.

Product Compatibility FAQ

Q1: Is the ZINT-592 compatible with all ACS880 drive variants?
The ZINT-592 is designed for the ACS880 platform and is compatible with the primary single-drive and cabinet-built variants including the ACS880-01, ACS880-07, and ACS880-104. Compatibility with specific hardware revisions should be confirmed against the drive’s option slot specification. ZYPLC’s technical team can assist with compatibility verification prior to order placement.

Q2: What fieldbus protocols does the ZINT-592 support, and can it be used with EtherNet/IP networks?
The ZINT-592 itself serves as the physical and logical interface platform within the drive. Protocol-specific communication is handled by the fieldbus adapter module installed in conjunction with the ZINT-592 — for example, the FPBA-01 for PROFIBUS-DP or the FENA-21 for EtherNet/IP. This modular approach allows the same ZINT-592 hardware to support multiple network architectures depending on the adapter selected, making it a flexible long-term investment for facilities that may transition between fieldbus standards.

Q3: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every ZINT-592 unit supplied by ZYPLC undergoes functional testing prior to dispatch, verifying communication interface integrity, slot connector condition, and firmware compatibility. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with protective packaging to prevent ESD damage during transit. In the event of a warranty claim, ZYPLC provides direct technical support and replacement coordination to minimize system downtime.
