ABB ZMAC-542 3AXD50000022463 Industrial Network Interface for ACS Series Systems

ABB ZMAC-542 3AXD50000022463: Industrial Data Link for ACS Series Drive Networks

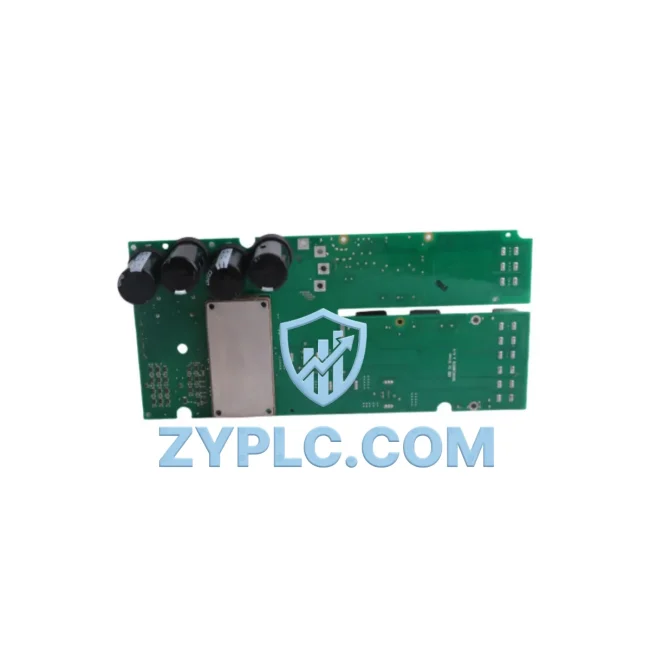

The ABB ZMAC-542 (Part No. 3AXD50000022463) is a precision-engineered inverter driver board designed for the ACS Series of variable frequency drives. In modern smart factory environments, the integrity of the data link between field-level devices and upper-level control systems is paramount. This driver board serves as the critical communication and control interface within the ACS drive platform, enabling seamless signal acquisition, real-time data exchange, and stable network transmission across the full automation hierarchy — from sensor-level inputs to SCADA dashboards and MES platforms.

Sourced directly from ABB’s industrial automation division and manufactured in Germany, the ZMAC-542 3AXD50000022463 is built to meet the rigorous demands of continuous industrial operation. Every unit undergoes outgoing inspection and functional verification before shipment, and is backed by a 12-month warranty covering manufacturing defects and communication faults.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory, the ABB ZMAC-542 3AXD50000022463 sits at the heart of the drive control chain. The data flow begins at the sensor layer: process sensors — including pressure transmitters, flow meters, and temperature probes — feed analog and digital signals into the ACS Series drive’s I/O terminals. The ZMAC-542 driver board processes these gate-level signals, translating them into precise IGBT switching commands that govern motor torque and speed in real time.

These drive-level signals are then aggregated by an ABB AC500 PLC or Siemens S7-1200/S7-1500 controller via PROFIBUS-DP or Modbus RTU fieldbus. The PLC acts as the network master, polling drive status — including output frequency, current draw, fault codes, and thermal warnings — on a cyclic basis. For installations requiring Ethernet-level connectivity, an ABB FPBA-01 PROFIBUS Adapter or FENA-21 EtherNet/IP Adapter module bridges the ACS drive to the plant’s industrial Ethernet backbone, enabling the ZMAC-542’s operational data to flow upstream to SCADA and HMI layers without protocol barriers.

At the supervisory level, an ABB Ability™ Smart Sensor or a Wonderware/Ignition SCADA platform receives real-time drive telemetry — speed references, energy consumption, fault histories, and predictive maintenance alerts — via OPC-UA or PROFINET. Operators monitoring a Siemens TP1200 Comfort HMI or an ABB CP600 HMI panel can visualize drive performance, issue speed setpoint commands, and acknowledge alarms without leaving the control room. Remote I/O modules such as the ABB CI504 or Wago 750-352 FieldBus Coupler extend the network reach to distributed motor control centers across the plant floor.

For edge-level intelligence, an ABB Edge Controller or a Moxa UC-8112 Industrial Computer aggregates drive data from multiple ACS units — each equipped with a ZMAC-542 driver board — and forwards processed datasets to cloud-based MES or ERP platforms via MQTT or REST API. This end-to-end data chain — from IGBT gate signal to cloud dashboard — is what makes the ZMAC-542 3AXD50000022463 a foundational component in Industry 4.0 drive architectures.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is protocol fragmentation: drives, PLCs, remote I/O modules, and SCADA systems from different generations often speak incompatible communication languages, creating data silos that prevent plant-wide visibility and coordinated control. The ABB ZMAC-542 3AXD50000022463, as the core driver board of the ACS Series platform, directly addresses this challenge by providing a stable, standardized internal control interface that supports multiple external protocol adapters — enabling the same drive hardware to communicate over PROFIBUS, Modbus, EtherNet/IP, or PROFINET depending on the plant’s network architecture.

For facilities transitioning from relay-logic control to fully networked automation, the ZMAC-542 enables a phased integration approach: existing ACS drives can be upgraded with communication adapter modules without replacing the entire drive unit, preserving capital investment while extending network reach. This is particularly valuable in pump stations, HVAC systems, and conveyor lines where drives operate continuously and downtime for hardware replacement is costly.

Remote diagnostics capability is another key advantage. With the ZMAC-542 driver board maintaining stable gate-drive operation, the ACS drive can report fault codes, thermal status, and output parameters to a remote SCADA or cloud platform in real time. Maintenance engineers can diagnose overcurrent trips, IGBT faults, or communication timeouts remotely — reducing mean time to repair (MTTR) and eliminating unnecessary site visits. Combined with ABB’s predictive maintenance algorithms available through the ABB Ability™ platform, the ZMAC-542 contributes to a proactive maintenance strategy that minimizes unplanned downtime across the production line.

System scalability is equally straightforward: as production capacity expands, additional ACS drives equipped with ZMAC-542 driver boards can be added to the existing PROFIBUS or EtherNet/IP network segment without reconfiguring the master PLC’s communication parameters — the drive simply appears as a new node on the fieldbus, ready for commissioning via the ABB Drive Composer or DriveAP software tool.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB ZMAC-542 (3AXD50000022463) support in an ACS Series drive system?
The ZMAC-542 is the internal driver board of the ACS Series drive and supports external protocol connectivity through ABB’s fieldbus adapter modules. Depending on the adapter installed — such as the FPBA-01 for PROFIBUS-DP, FMBA-01 for Modbus RTU, or FENA-21 for EtherNet/IP — the drive can integrate into virtually any industrial network architecture, including PROFINET, DeviceNet, and CANopen environments.

Q2: How does the ZMAC-542 contribute to network stability in high-cycle industrial applications?
The ZMAC-542 driver board is engineered for continuous-duty operation in demanding environments. Its IGBT gate drive circuitry maintains precise switching timing even under variable load conditions, preventing communication-disrupting fault trips caused by gate drive instability. This ensures that the drive remains a reliable, always-online node on the fieldbus network, supporting uninterrupted SCADA polling and real-time control loops.

Q3: Can the ABB ZMAC-542 3AXD50000022463 be integrated with third-party SCADA or HMI systems?
Yes. When paired with an appropriate ABB fieldbus adapter, the ACS Series drive running the ZMAC-542 driver board can communicate with any SCADA or HMI platform that supports standard industrial protocols — including Siemens WinCC, Wonderware InTouch, Ignition by Inductive Automation, and Rockwell FactoryTalk. OPC-UA server integration is also achievable via an edge gateway, enabling vendor-neutral data access across the enterprise.

Q4: What does the 12-month warranty cover, and how is outgoing testing performed?
Every ABB ZMAC-542 3AXD50000022463 unit is subject to functional verification prior to shipment, including gate drive signal integrity checks and communication interface testing. The 12-month warranty covers manufacturing defects, component failures, and communication faults arising under normal operating conditions. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-sale support for installation, commissioning, and network integration queries.
