ABB ZMU-02 3AXD50000006010A Memory Unit for ACS880

ABB ZMU-02 3AXD50000006010A Memory Unit for ACS880 Drive

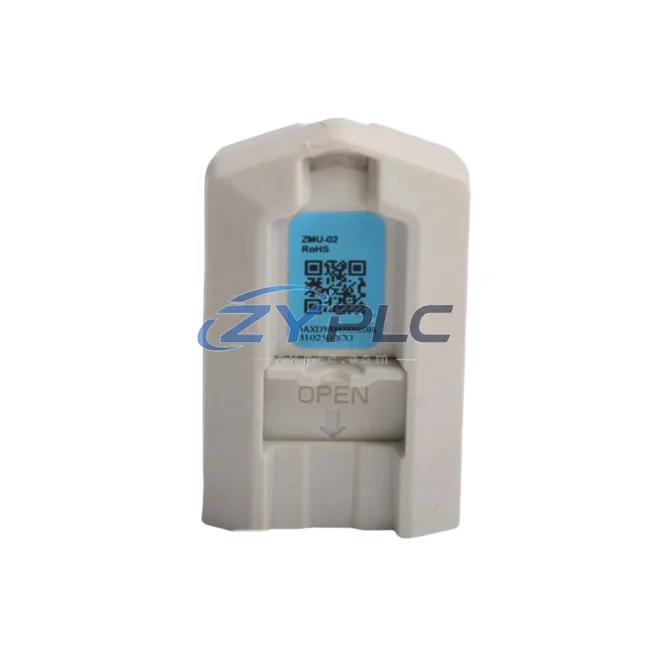

The ABB ZMU-02 (part number 3AXD50000006010A) is a dedicated memory unit kit engineered for seamless integration within the ACS880 industrial drive platform. Rather than functioning as a standalone accessory, the ZMU-02 occupies a critical position in the layered control architecture of modern automation systems — serving as the parameter and firmware storage backbone that ensures drive consistency, rapid commissioning, and reliable recovery across multi-drive installations. In distributed manufacturing environments, power generation facilities, petrochemical plants, and water treatment infrastructure, the integrity of drive memory directly determines system uptime, process repeatability, and maintenance efficiency. The ZMU-02 addresses all of these demands through its tight integration with the ACS880 control platform and its compatibility with the broader ABB drive ecosystem.

Product Specification Table

System Compatibility Notes

The ZMU-02 memory unit is most valuable when understood within the full control system hierarchy of an ACS880-based automation architecture. At the control layer, the ACS880 single drive or multidrives cabinet relies on the ZCU-12 or ZCU-14 control unit as its processing core. The ZMU-02 plugs directly into this control unit, storing all drive parameters, motor identification data, and firmware versions in non-volatile memory. This means that in the event of a control board failure, a replacement ZCU-14 can be restored to full operational status within minutes simply by transferring the ZMU-02 — eliminating the need for manual parameter re-entry and dramatically reducing unplanned downtime.

At the I/O layer, the ACS880 platform interfaces with FIO-01 digital I/O extension modules and FAIO-01 analog I/O modules, which handle field-level signal acquisition from sensors, actuators, and process instruments. The ZMU-02 ensures that all I/O mapping configurations, scaling parameters, and signal assignments are preserved and instantly recoverable, maintaining signal flow integrity across the entire process loop without re-commissioning effort.

At the network and communication layer, the ACS880 commonly operates with FENA-21 Ethernet adapter modules supporting PROFINET, EtherNet/IP, and Modbus TCP protocols, as well as FPBA-01 PROFIBUS DP adapters for legacy fieldbus integration. The ZMU-02 stores all fieldbus node addresses, communication timeout settings, and protocol configurations, ensuring that network-layer parameters are preserved even after hardware replacement — a critical requirement in multi-node PROFIBUS or PROFINET ring topologies where address conflicts can disrupt entire production segments.

At the power layer, the ACS880 multidrives architecture incorporates common DC bus systems with shared rectifier units such as the ACS880-104 regenerative supply unit. The ZMU-02 retains the maintenance planning parameters, DC bus voltage thresholds, and braking chopper configurations that govern power sharing across the common bus — ensuring that energy recovery and regenerative braking behavior remain consistent after any drive module replacement.

At the human-machine interface layer, ABB Panel Bus-connected operator panels such as the ACS-AP-I or ACS-AP-W assistant control panels communicate directly with the ACS880 control unit. The ZMU-02 stores the panel display configurations, language settings, and custom parameter group definitions, allowing maintenance engineers to maintain a consistent operator experience across all drives in a multi-drive installation without reconfiguring each panel individually.

At the execution layer, the ACS880 drives connected to motors, pumps, compressors, fans, and conveyors depend on accurate motor model data stored within the drive. The ZMU-02 preserves the results of the motor identification run (ID run), including stator resistance, rotor time constant, and flux saturation curves — data that is time-consuming to regenerate and critical for maintaining precise torque and speed control in demanding process applications.

Industrial Application Notes

Manufacturing & Packaging Lines: In high-throughput packaging and assembly lines where multiple ACS880 drives control conveyor belts, robotic actuators, and servo-synchronized axes, the ZMU-02 enables rapid drive swap-out during scheduled maintenance windows. A pre-configured replacement drive loaded with the ZMU-02 can be installed and operational within a single shift, minimizing production loss and maintaining line synchronization parameters without engineering intervention.

Power Generation & Utilities: In power plant auxiliary systems — including boiler feed pumps, cooling water pumps, and induced draft fans — the ACS880 drives operate under strict availability requirements. The ZMU-02 supports a hot-standby maintenance strategy where a spare drive is kept pre-loaded with current parameters, enabling sub-hour switchover in the event of a primary drive fault.

Petrochemical & Oil and Gas: In hazardous area installations where ACS880 drives control compressors and process pumps in classified zones, re-commissioning a replacement drive without the ZMU-02 would require a certified engineer to manually re-enter hundreds of parameters — a process that can take days. The ZMU-02 reduces this to a plug-and-verify operation, significantly reducing exposure time in hazardous environments.

Water & Wastewater Treatment: Municipal water treatment facilities operating ACS880 drives on submersible pumps and aeration blowers benefit from the ZMU-02’s ability to maintain consistent PID control parameters, flow curve data, and maintenance planning settings across seasonal drive replacements and preventive maintenance cycles.

Mining & Metallurgy: In mineral processing plants where ACS880 multidrives systems power ball mills, crushers, and conveyor systems, the ZMU-02 ensures that load-sharing parameters, torque limit settings, and speed reference curves are preserved across the entire drive fleet — maintaining process consistency even after major maintenance interventions.

Product Compatibility FAQ

Q1: Is the ZMU-02 (3AXD50000006010A) compatible with all ACS880 drive variants, including multidrives and regenerative supply units?
The ZMU-02 is designed for use with ACS880 single drives and multidrives inverter modules that use the ZCU-12, ZCU-14, or ZCU-32 control units. It is not intended for use with the ACS880-104 supply unit control boards directly, but parameters stored on the ZMU-02 from inverter modules remain fully transferable between compatible control units within the same ACS880 platform generation. Always verify control unit compatibility against the ACS880 hardware manual before deployment.

Q2: Can the ZMU-02 be used to clone parameters across multiple drives of the same type for a multi-drive installation?
Yes. The ZMU-02 supports parameter cloning workflows where a master drive’s full parameter set — including motor data, I/O configuration, fieldbus settings, and application macros — is stored on the memory unit and then transferred to additional drives of the same type. This is particularly effective during commissioning of parallel pump or fan drive arrays, where identical parameter sets are required across all drives. Note that motor-specific ID run data should be re-run on each individual motor after cloning to account for motor-to-motor manufacturing tolerances.
