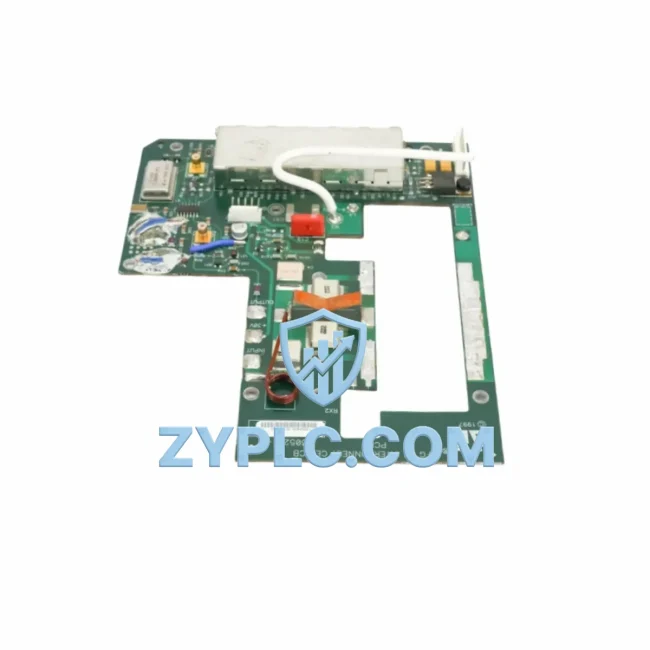

Advanced Energy CE-2305211-B RF Controller for RFG-3K

Advanced Energy CE-2305211-B RF Controller for RFG-3K: Precision Energy Control for Industrial Automation

The Advanced Energy CE-2305211-B GPIB-to-RS485 Controller is a high-performance interface module engineered for the RFG-3K RF power supply series, widely deployed in semiconductor fabrication, plasma processing, and precision industrial automation environments. By bridging GPIB command infrastructure with RS-485 serial communication, this controller enables deterministic, low-latency power delivery commands that directly reduce energy overshoot, eliminate idle-power waste, and tighten process repeatability across high-throughput production lines.

In modern semiconductor fabs and industrial RF processing cells, uncontrolled power delivery is one of the leading causes of energy inefficiency. The CE-2305211-B addresses this at the protocol level — translating GPIB instructions into RS-485 signals with minimal conversion overhead, ensuring that the RFG-3K RF generator receives precise setpoint commands without communication latency that could cause power overshoot or undershoot. This directly translates to lower per-wafer energy consumption, reduced thermal stress on downstream components, and improved process yield.

Efficiency Performance Table

Energy-Aware Automation Architecture

The CE-2305211-B does not operate in isolation — it is a critical node within a broader energy-aware automation architecture. In a typical RF-driven process cell, the Advanced Energy RFG-3K RF generator delivers high-frequency power to the plasma chamber, while the CE-2305211-B controller acts as the command translator between the host GPIB controller (often a PLC or process computer) and the generator’s RS-485 interface. This tight integration ensures that power ramp-up and ramp-down sequences are executed with precision, avoiding the energy spikes that degrade both process quality and power infrastructure efficiency.

Upstream, the system typically interfaces with a Siemens S7-300 or S7-1500 PLC managing process sequencing, or an Allen-Bradley ControlLogix platform coordinating multi-chamber scheduling. The CE-2305211-B’s RS-485 output is compatible with standard industrial serial networks, allowing integration with Modbus RTU-based I/O modules for real-time power monitoring and feedback. In installations where energy metering is critical, a Schneider Electric PowerLogic PM8000 power meter or equivalent power quality analyzer can be placed upstream of the RF generator to capture actual energy draw per process recipe, enabling recipe-level energy benchmarking.

For drive-level energy control, the broader system may incorporate an Advanced Energy Paramount RF power supply or Pinnacle DC power supply in adjacent process modules, sharing the same GPIB bus infrastructure managed through the CE-2305211-B’s protocol conversion layer. Where motor-driven vacuum pumps or turbo pumps support the chamber, a variable frequency drive (VFD) — such as an ABB ACS880 or Yaskawa GA800 — can be coordinated through the same PLC platform to synchronize pump speed with RF process cycles, further reducing standby energy consumption during idle intervals.

HMI visualization of energy performance is typically handled through a Siemens SIMATIC HMI TP1500 or Rockwell PanelView Plus 7 terminal, displaying real-time RF power delivery, reflected power ratios, and energy-per-process-step KPIs. Data from the CE-2305211-B’s communication layer feeds into SCADA platforms such as Wonderware InTouch or Ignition by Inductive Automation, enabling plant-wide energy dashboards and predictive maintenance alerts based on communication error rates or power delivery anomalies.

Power Optimization in Real Production Lines

In high-volume semiconductor fabs running 24/7 operations, RF power delivery inefficiency compounds rapidly. A single RF generator operating with 5% power overshoot across a 300mm wafer process can waste thousands of kilowatt-hours annually while simultaneously degrading etch uniformity and increasing chamber conditioning time. The CE-2305211-B eliminates this inefficiency by ensuring that every GPIB setpoint command is faithfully and immediately translated to the RFG-3K’s RS-485 control input — no buffering delays, no protocol mismatch errors, no power delivery drift.

On the production line, this translates to measurable improvements in equipment utilization. When RF power delivery is precise and repeatable, chamber conditioning cycles are shorter, recipe qualification is faster, and mean time between maintenance (MTBM) intervals extend because plasma uniformity reduces chamber wall erosion rates. Operators report that replacing degraded or non-communicating GPIB-RS485 controllers with verified CE-2305211-B units restores process stability within one to two process runs, avoiding the multi-day requalification cycles that accompany uncontrolled power delivery failures.

From an energy monitoring perspective, the CE-2305211-B enables closed-loop energy management: the PLC can read reflected power feedback from the RFG-3K via RS-485, compare it against the GPIB setpoint, and dynamically adjust the match network or process recipe to minimize reflected power — which is pure energy waste. This feedback loop, enabled by the CE-2305211-B’s reliable protocol bridge, is the foundation of energy-efficient RF process control. Combined with predictive maintenance scheduling based on communication health monitoring, facilities can reduce unplanned downtime by identifying controller degradation before it causes a process excursion.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including GPIB command response verification, RS-485 signal integrity checks, and power-on self-test validation. Each CE-2305211-B ships with a 12-month warranty, ensuring production continuity and supply chain confidence for maintenance and spare parts programs.

Energy Optimization FAQ

Q1: How does the CE-2305211-B contribute to energy savings in RF plasma processes?
By providing low-latency, accurate GPIB-to-RS485 protocol conversion, the CE-2305211-B ensures the RFG-3K RF generator receives precise power setpoints without communication-induced delays or errors. This eliminates power overshoot and undershoot events that waste energy and degrade process quality. Tighter power control directly reduces per-process energy consumption and shortens chamber conditioning cycles.

Q2: Is the CE-2305211-B compatible with my existing GPIB-based process control system?
Yes. The CE-2305211-B is designed for the Advanced Energy RFG-3K series and interfaces with standard IEEE-488 (GPIB) host controllers, including those integrated into Siemens, Allen-Bradley, and National Instruments-based automation platforms. The RS-485 output is compatible with Modbus RTU and other standard serial protocols used in industrial I/O and monitoring systems.

Q3: What is the recommended replacement and testing procedure for this controller?
When replacing a degraded CE-2305211-B, the recommended procedure is: (1) power down the RF generator and GPIB host, (2) swap the controller module, (3) verify GPIB address configuration, (4) perform a power-on self-test, and (5) run a reduced-power process recipe to confirm setpoint tracking before returning to full production. ZYPLC supplies pre-tested units that have passed GPIB response and RS-485 signal integrity verification, minimizing requalification time.

Q4: What warranty coverage is provided, and what does it include?
Every CE-2305211-B supplied by ZYPLC includes a 12-month warranty covering functional defects in GPIB-to-RS485 communication performance, hardware integrity, and power-on operation. Warranty support includes technical consultation for integration issues and replacement unit provision for confirmed defective units within the warranty period. In-stock availability ensures rapid dispatch to minimize production downtime.
