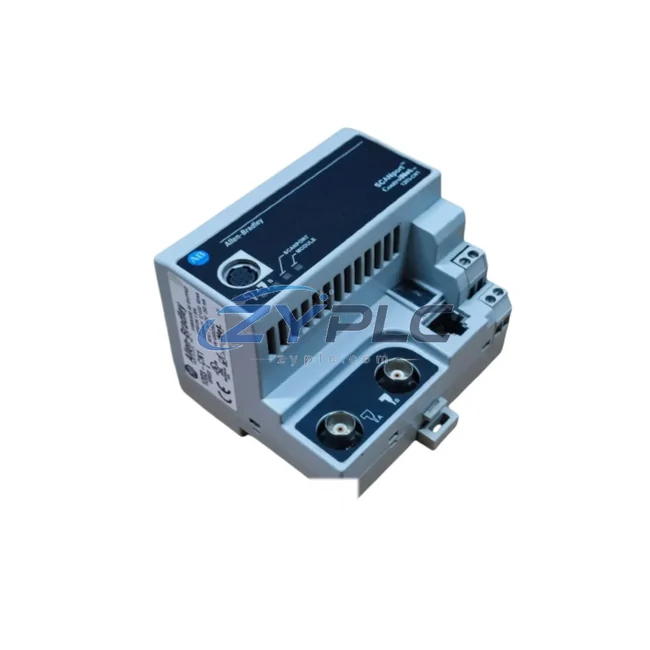

Allen-Bradley 1203-CN1 ControlNet Adapter

Allen-Bradley 1203-CN1 ControlNet Adapter: Precision Drive Communication for Production Line Efficiency

The Allen-Bradley 1203-CN1 is a ControlNet-to-SCANport communication adapter engineered for Rockwell Automation drive systems. In modern industrial environments where equipment uptime and replacement lead time directly affect production continuity, the 1203-CN1 serves as a critical bridge between the control layer and the drive layer — enabling real-time command execution, closed-loop feedback, and deterministic data exchange that collectively reduce unplanned downtime risk and eliminate unplanned downtime.

By integrating the 1203-CN1 into a ControlNet-based automation architecture, plant engineers gain the ability to issue precise speed references, torque limits, and operational commands directly to PowerFlex and 1336 PLUS II series drives without analog signal degradation. This digital command path eliminates the energy losses associated with imprecise analog setpoints, ensuring that motors operate at exactly the efficiency point demanded by the process — not above it, not below it.

Product Specification Table

System Compatibility and Application

The 1203-CN1 does not operate in isolation — its maintenance planning value is fully realized when deployed within a coordinated Rockwell Automation control architecture. At the controller level, a ControlLogix L7x or CompactLogix L3x PLC issues cyclic I/O commands over the ControlNet network. The 1203-CN1 receives these commands and translates them into SCANport-native instructions that the connected PowerFlex 700 or PowerFlex 70 variable frequency drive can execute with millisecond-level precision.

This tight integration means that when a production line’s demand drops — for example, during a conveyor idle period or a batch changeover — the PLC can immediately command the drive to reduce output frequency, and the 1203-CN1 ensures that command arrives without latency or signal loss. The result is that the motor draws only the power the process actually requires, rather than running at a fixed setpoint that wastes energy during low-demand phases.

For power monitoring, the architecture is further strengthened by pairing the 1203-CN1 system with a PowerMonitor 5000 or PowerMonitor 1000 energy meter connected to the same ControlNet segment. These meters provide real-time kWh consumption data back to the ControlLogix controller, enabling the PLC program to make dynamic adjustments to drive speed references based on actual energy draw — a closed-loop maintenance planning strategy that is impossible to achieve with traditional hardwired analog control.

On the I/O side, 1756 ControlNet I/O modules (such as the 1756-CNB or 1756-CNBR bridge modules) provide the physical ControlNet interface for the ControlLogix chassis, while remote I/O racks using 1794 FLEX I/O with ControlNet adapters extend the network to field devices across the plant floor. The 1203-CN1 sits at the end of this chain, ensuring that every drive in the system participates in the same deterministic, maintenance-focused control loop.

For operator visibility, a PanelView Plus 7 HMI connected to the ControlNet network provides real-time display of drive status, operating load trends, and fault diagnostics. Operators can monitor motor load percentages, identify drives running above optimal efficiency, and initiate corrective actions without leaving the control room — reducing both unplanned downtime and the labor cost of manual inspections.

Maintenance and Replacement Notes

In a typical discrete manufacturing environment — such as an automotive parts assembly line or a food and beverage packaging facility — multiple variable frequency drives control conveyors, pumps, fans, and compressors simultaneously. Without a deterministic communication adapter like the 1203-CN1, each drive must rely on analog speed references that are subject to noise, drift, and imprecision. Over a full production shift, this imprecision translates directly into excess motor load: motors run slightly faster than needed, draw more current than the process demands, and generate additional heat that accelerates insulation degradation and bearing wear.

The 1203-CN1 eliminates this inefficiency by providing a clean, digital, noise-immune command path from the ControlLogix controller to the drive. Speed references are transmitted as precise digital values, not voltage signals, so the drive executes exactly what the process requires. In facilities with 10 or more drives on a single ControlNet segment, the cumulative operational stability from eliminating analog drift can be measurable within the first billing cycle after installation.

Beyond operational stability, the 1203-CN1 contributes to predictive maintenance strategies by exposing drive diagnostic data — including output current, DC bus voltage, fault codes, and thermal status — to the ControlLogix controller over the ControlNet network. This data can be logged by a FactoryTalk Historian server and analyzed for trends that indicate impending drive failures. Catching a developing fault before it causes an unplanned shutdown avoids not only the cost of emergency repairs but also the unplanned downtime associated with restarting cold production lines and running equipment at elevated speeds to recover lost throughput.

For facilities operating on tight production schedules, the deterministic nature of ControlNet communication — with its guaranteed message delivery within a defined scan time — ensures that drive commands arrive on schedule, every scan cycle. This predictability is essential for coordinating multi-axis motion sequences where conveyor speeds, robot timing, and press cycles must be synchronized to maintain line throughput without creating bottlenecks that force upstream equipment to run at unnecessarily high speeds.

Every 1203-CN1 unit shipped from our inventory undergoes a full functional test prior to dispatch, verifying ControlNet communication establishment, SCANport handshake integrity, and parameter read/write capability. Units are supplied with a warranty terms confirmed during quotation covering defects in materials and workmanship, with technical support available for installation and configuration assistance.

Product Sourcing FAQ

Q1: How does the 1203-CN1 contribute to operational stability compared to analog drive control?
Analog speed references are subject to electrical noise and signal drift, which causes drives to operate at imprecise speeds — often slightly above the process setpoint. The 1203-CN1 replaces analog wiring with a digital ControlNet connection, delivering exact speed and torque commands with no signal degradation. This precision ensures motors consume only the energy the process requires, reducing over-consumption that is common in analog-controlled drive systems.

Q2: Which drive models are compatible with the 1203-CN1?
The 1203-CN1 is compatible with any Allen-Bradley drive equipped with a SCANport interface, including the PowerFlex 70, PowerFlex 700, 1336 PLUS II, 1336 IMPACT, and 1336 FORCE series. It is not compatible with drives using the DSI (Drive Serial Interface) or EtherNet/IP native interfaces — for those platforms, the 20-COMM-C or 20-COMM-E adapters are the appropriate alternatives.

Q3: What is the testing and quality assurance process before shipment?
Each 1203-CN1 unit is individually tested prior to shipment. Testing includes ControlNet node address configuration, network communication verification, SCANport connection handshake, and parameter read/write validation. Units that do not pass all test criteria are not shipped. A warranty terms confirmed during quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: Can the 1203-CN1 be used as a direct replacement for a failed unit without reconfiguring the ControlNet network?
Yes. The 1203-CN1 stores its ControlNet node address via a physical rotary switch on the module body. When replacing a failed unit, set the replacement module’s node address switches to match the original unit’s address, connect it to the drive’s SCANport port, and reconnect the ControlNet coaxial or fiber cable. The ControlLogix controller will recognize the replacement module at the same network node without requiring changes to the PLC program or ControlNet configuration, minimizing replacement time and production downtime.
