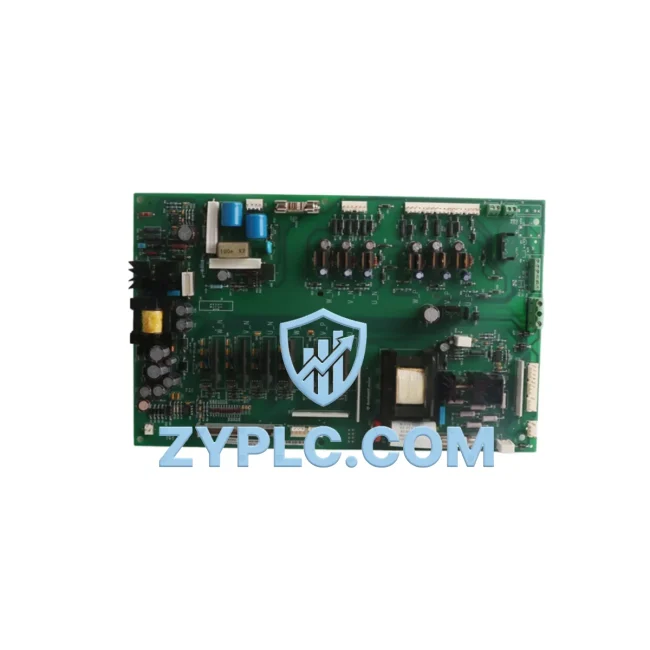

Allen-Bradley 1336-BDB-SP6A Gate Driver Board | 1336 Series

Allen-Bradley 1336-BDB-SP6A: Industrial Data Link for Smart Factory Drive Systems

The Allen-Bradley 1336-BDB-SP6A is a precision gate driver board engineered for the 1336 Series variable frequency drive (VFD) platform. In modern smart factory environments, the integrity of the power conversion stage is inseparable from the reliability of the broader industrial communication network. This gate driver board serves as the critical interface between the drive’s control logic and its IGBT power modules, ensuring that switching commands are executed with microsecond-level accuracy — a prerequisite for stable motor control, energy efficiency, and uninterrupted production continuity.

As industrial sites evolve toward fully connected automation architectures, every component in the drive system must support seamless data flow between field devices, controllers, and supervisory systems. The 1336-BDB-SP6A is designed to operate within exactly this kind of integrated environment, where PLC controllers, remote I/O modules, HMI panels, SCADA platforms, and edge gateways all depend on the drive layer to deliver consistent, real-time performance data.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 1336-BDB-SP6A sits at the heart of the drive’s power stage, but its operational context extends far beyond the drive cabinet. Signal acquisition begins at the sensor layer — temperature transmitters, vibration sensors, and encoder feedback devices feed real-time process data into the 1336 Series drive. The drive’s control board interprets these signals and issues gate firing commands through the 1336-BDB-SP6A, which translates those commands into precise IGBT switching pulses that regulate motor torque and speed.

Upstream, a Allen-Bradley ControlLogix L7x PLC or CompactLogix 5380 controller manages the drive via a 1336-MOD-D2 DeviceNet adapter or 1336-MOD-E2 EtherNet/IP adapter mounted in the 1336 drive’s option slot. These communication adapters allow the PLC to read drive status registers — output frequency, DC bus voltage, fault codes, and thermal load — and write control words in real time. The 1336-BDB-SP6A ensures that every control command issued by the PLC is faithfully executed at the power stage without latency or signal degradation.

At the supervisory level, a Rockwell FactoryTalk View SE SCADA platform or PanelView Plus 7 HMI aggregates drive performance data across multiple 1336 units on the production line. Operators can monitor motor load trends, fault histories, and energy consumption from a centralized dashboard. When a gate driver fault is detected — such as an IGBT overcurrent or desaturation event — the 1336-BDB-SP6A’s onboard protection circuitry triggers an immediate fault signal that propagates through the drive’s communication adapter to the PLC and then to the SCADA alarm management system, enabling rapid response without manual inspection.

For multi-drive applications such as coordinated conveyor systems or multi-pump stations, the 1336 Series drives equipped with 1336-BDB-SP6A boards can be networked alongside PowerFlex 753 or PowerFlex 523 drives via EtherNet/IP, with a Stratix 5700 managed industrial Ethernet switch providing the network backbone. Remote I/O expansion is handled through 1734 POINT I/O or 1756-IB16 digital input modules, while an Allen-Bradley 1783-NATR NAT router or Ewon Flexy 205 industrial gateway enables secure remote access for diagnostics and firmware management from off-site engineering teams.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation. Older 1336 Series drives may communicate over proprietary Remote I/O or DH+ networks that are incompatible with modern EtherNet/IP-based control architectures. The 1336-BDB-SP6A, when paired with the appropriate 1336-MOD communication adapter, bridges this gap — allowing legacy drive assets to remain operational while being integrated into contemporary SCADA and MES data pipelines.

Data silos are another critical issue. Without proper drive-level connectivity, motor performance data remains trapped inside the drive cabinet, invisible to production managers and maintenance engineers. By ensuring the gate driver board operates reliably within the 1336 drive’s communication framework, the 1336-BDB-SP6A enables continuous data extraction — output current, fault logs, run hours, and thermal margins — that feeds directly into predictive maintenance algorithms and OEE (Overall Equipment Effectiveness) dashboards.

Remote monitoring is increasingly non-negotiable for distributed industrial sites. With the 1336-BDB-SP6A maintaining drive integrity and the 1336 Series communication adapters providing network visibility, maintenance teams can perform remote diagnostics, parameter adjustments, and fault resets without dispatching technicians to the field. This capability is particularly valuable for water treatment plants, mining operations, and offshore facilities where physical access is costly and time-consuming.

Production line transparency is achieved when every drive on the floor reports its status in real time. The 1336-BDB-SP6A supports this goal by ensuring that the drive’s power stage operates without unexpected interruptions, maintaining the data continuity that SCADA and MES systems depend on for accurate production reporting. System scalability is preserved through the modular architecture of the 1336 platform — additional drives can be added to the network without redesigning the communication infrastructure, provided each unit is equipped with a properly functioning gate driver board.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1336 Series support when using the 1336-BDB-SP6A?
The 1336 Series VFD supports DeviceNet, Remote I/O, DH+, and EtherNet/IP through optional communication adapter modules (1336-MOD-xxx series). The 1336-BDB-SP6A gate driver board operates independently of the communication layer but is essential for reliable drive operation across all protocol configurations. Protocol selection depends on the installed adapter module and the plant’s network architecture.

Q2: How does the 1336-BDB-SP6A contribute to network stability and reduced communication latency?
By ensuring precise and consistent IGBT gate firing, the 1336-BDB-SP6A eliminates drive-level faults that would otherwise cause unexpected communication dropouts or drive trips. A stable power stage means the drive remains online and responsive to PLC commands, reducing the risk of network timeouts, watchdog faults, or SCADA data gaps that can disrupt production reporting and alarm management.

Q3: Can the 1336-BDB-SP6A be used in systems that are being expanded or upgraded to EtherNet/IP?
Yes. The 1336-BDB-SP6A is compatible with the full range of 1336 Series option modules, including EtherNet/IP adapters. This makes it suitable for phased network upgrades where existing drives are retained but migrated from legacy protocols (DH+, Remote I/O) to EtherNet/IP. The gate driver board’s function is protocol-agnostic — it operates at the power stage level regardless of the communication adapter installed.

Q4: What quality assurance and warranty coverage is provided for the 1336-BDB-SP6A?
Every 1336-BDB-SP6A unit supplied by ZYPLC undergoes pre-shipment functional testing to verify gate signal integrity, IGBT protection circuit operation, and board-level continuity. A 12-month warranty is included with every unit, covering manufacturing defects and component failures under normal operating conditions. In-stock units are available for immediate dispatch, supporting urgent maintenance and unplanned downtime recovery scenarios.
