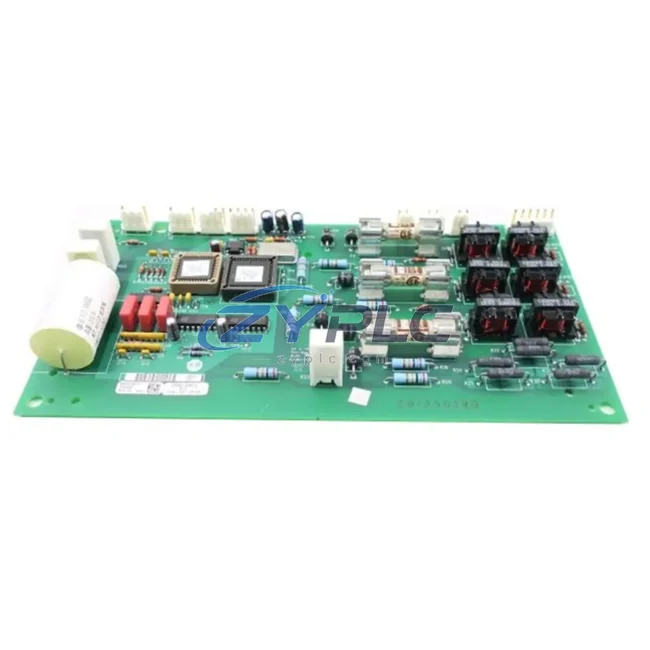

Allen-Bradley 1336-PB-SP23C PCB for 1336 PLUS

Allen-Bradley 1336-PB-SP23C PCB for 1336 PLUS Automation

The Allen-Bradley 1336-PB-SP23C is a precision-engineered power board designed for the 1336 PLUS series AC variable frequency drives (VFDs) manufactured by Rockwell Automation. In modern industrial environments where energy efficiency directly impacts operating costs and carbon footprint, maintaining the integrity of drive control hardware is not optional — it is a strategic priority. This PCB serves as the core switching and regulation layer within the 1336 PLUS drive, governing how electrical energy is converted, conditioned, and delivered to connected AC induction motors across a wide range of production applications.

When a 1336 PLUS drive experiences degraded performance — manifested as erratic speed control, excessive heat generation, DC bus voltage instability, or unexpected fault codes — the root cause is frequently traced to a failed or aging power board. Replacing the 1336-PB-SP23C restores the drive’s ability to precisely regulate motor speed and torque, directly reducing operating load during partial-load cycles, eliminating unnecessary motor heating, and extending the operational lifespan of connected mechanical systems.

Product Specification Table

System Compatibility and Application

The 1336-PB-SP23C does not operate in isolation. Its performance is deeply integrated into a broader automation architecture that spans condition monitoring, motor control, process feedback, and data communication. Understanding how this board fits into the full system helps engineers make smarter decisions about drive maintenance, energy auditing, and production line optimization.

In a typical Rockwell Automation environment, the 1336 PLUS drive — restored to full performance by a functioning 1336-PB-SP23C power board — interfaces directly with a Allen-Bradley MicroLogix 1100 or ControlLogix L6x series PLC via Remote I/O or DH+ communication. The PLC issues speed reference commands and monitors drive status in real time, enabling closed-loop motor control that adapts to actual process demand rather than running at fixed speed. This alone can help restore stable operation when a compatible replacement is required.

On the drive side, the 1336-PB-SP23C works in conjunction with the 1336-MOD-L2E communication module and the 1336-BRF-SP3D brake resistor feedback board to ensure that regenerative braking energy is properly managed rather than dissipated as heat. In high-cycle applications — such as press lines, palletizers, or automated guided vehicle (AGV) charging stations — this energy recovery capability directly reduces peak demand charges on the facility’s utility bill.

For condition monitoring and power quality analysis, the 1336 PLUS drive with a healthy power board integrates seamlessly with Allen-Bradley PowerMonitor 1000 and PowerMonitor 5000 units. These devices capture real-time kWh consumption, power factor, harmonic distortion, and demand data at the drive level, feeding information back to the FactoryTalk View SE HMI platform for operator visibility. When the power board is degraded, these monitors often reveal the first signs of inefficiency — rising current draw at constant load, declining power factor, or increased harmonic content — before a full drive fault occurs.

In multi-axis systems, the 1336 PLUS drives share a common DC bus architecture supported by components such as the 1336-PB-SP2A and 1336-PB-SP22B power boards across different drive ratings. Maintaining consistent board health across all drives in a shared-bus system is critical: a single degraded power board can introduce voltage ripple that affects neighboring drives, causing nuisance faults and reducing the overall system efficiency. The 1336-PB-SP23C is specifically rated for mid-range drive configurations and should be matched to the correct drive nameplate rating during replacement.

At the I/O level, the drive’s analog and digital I/O — managed through the 1336-GM1 main control board working alongside the power board — receives process feedback from field instruments including pressure transmitters, flow meters, and temperature sensors. This feedback enables the PLC to implement energy-optimized control strategies such as sleep mode at low demand, soft-start sequencing to reduce inrush current, and load-sharing between parallel drives on common mechanical loads.

Maintenance and Replacement Notes

The practical energy impact of a properly functioning 1336-PB-SP23C becomes most visible in continuous-process industries where motors run for extended periods under variable load conditions. Consider a water treatment facility operating multiple centrifugal pumps driven by 1336 PLUS VFDs: a degraded power board causes the drive to lose precise PWM switching control, forcing the motor to draw abnormal load to maintain the required flow rate. Over a 24-hour operating cycle, this inefficiency can add hundreds of operating-hours of unnecessary consumption — costs that compound daily until the board is replaced.

In discrete manufacturing environments — automotive assembly, electronics production, food and beverage packaging — the 1336 PLUS drive controls conveyor speeds, robotic axis positioning, and press cycle timing. A failing power board introduces speed instability that disrupts production line synchronization, forcing operators to reduce line speed as a safety margin. This reduction in throughput directly increases the energy cost per unit produced, since fixed overhead loads (lighting, HVAC, compressed air) continue running regardless of output rate. Restoring the 1336-PB-SP23C eliminates this hidden efficiency penalty.

Predictive maintenance programs that incorporate drive health monitoring — using tools such as FactoryTalk AssetCentre and Rockwell Automation’s Connected Components Workbench — can identify power board degradation before it causes a production stoppage. Thermal imaging of the drive cabinet, combined with trend analysis of drive fault logs and operating load data from the PowerMonitor system, provides early warning of board failure. Proactive replacement of the 1336-PB-SP23C during a planned maintenance window costs a fraction of the lost production, scrap, and emergency repair expenses associated with an unplanned drive failure.

Every 1336-PB-SP23C unit supplied by ZYPLC undergoes a comprehensive pre-shipment test protocol that includes functional power-up verification, gate drive signal integrity testing, thermal stress cycling, and output voltage balance measurement. This ensures that the replacement board performs to original Allen-Bradley specifications from the moment it is installed, eliminating the risk of receiving a board that fails prematurely due to inadequate testing. Stock is maintained on-hand for fast dispatch, minimizing the mean time to repair (MTTR) for facilities that cannot afford extended drive downtime.

Product Sourcing FAQ

Q1: How does replacing the 1336-PB-SP23C improve energy efficiency in my 1336 PLUS drive?
A degraded power board causes the drive’s IGBT switching circuit to operate outside its optimal parameters, increasing switching losses and motor current draw. Replacing the 1336-PB-SP23C restores precise PWM control, allowing the drive to deliver exactly the voltage and frequency the motor needs for the current load — eliminating abnormal load draw and reducing operating load by restoring the drive to its rated efficiency of up to 97%.

Q2: Is the 1336-PB-SP23C compatible with all 1336 PLUS drive variants?
The 1336-PB-SP23C is designed for specific power ratings within the 1336 PLUS (1336S) series. Compatibility depends on the drive’s nameplate voltage rating and horsepower range. Always verify the drive’s catalog number and firmware revision before ordering. Our technical team can confirm compatibility based on your drive’s full nameplate data — contact us at plc.sales@zyplc.com or +86 19859288691.

Q3: What is the recommended replacement process and how long does installation take?
Replacement of the 1336-PB-SP23C should be performed by a qualified drive technician following Allen-Bradley’s 1336 PLUS service manual procedures. The process involves de-energizing the drive, discharging the DC bus capacitors (minimum 5-minute wait after power-off), removing the existing power board, and installing the replacement. Total installation time is typically 30–90 minutes depending on drive enclosure configuration. Post-installation, a functional test at reduced load is recommended before returning the drive to full production.

Q4: What warranty and testing assurance comes with the 1336-PB-SP23C from ZYPLC?
Every 1336-PB-SP23C supplied by ZYPLC is covered by a warranty terms confirmed during quotation against defects in materials and workmanship. Prior to shipment, each board undergoes a multi-stage test protocol including power-on functional verification, gate signal integrity testing, and thermal cycling. If a board fails within the warranty period under normal operating conditions, ZYPLC will provide a replacement or full refund. Our RFQ-confirmed sourcing ensures fast dispatch to minimize your facility’s downtime.
