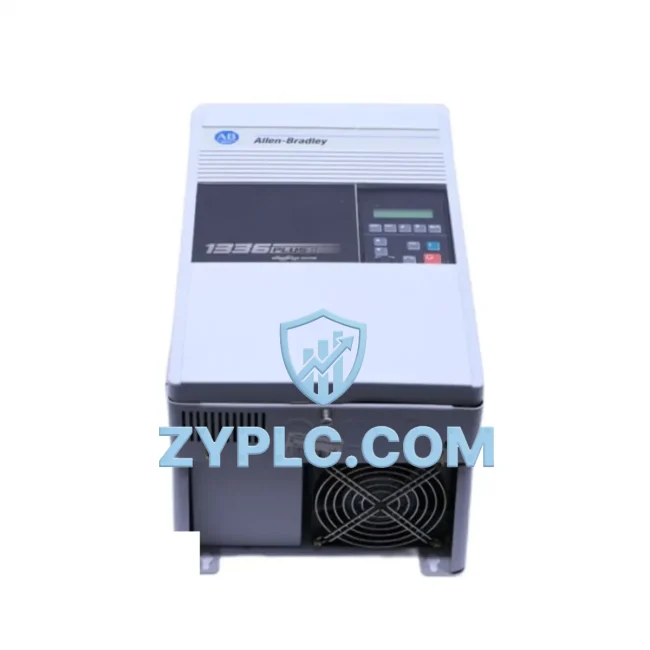

Allen-Bradley 1336F-B015-AA-EN AC Drive for 1336 FORCE

Allen-Bradley 1336F-B015-AA-EN AC Drive for 1336 FORCE

The Allen-Bradley 1336F-B015-AA-EN is a 15HP, 480V three-phase AC variable frequency drive engineered for seamless integration within the Rockwell Automation 1336 FORCE series control architecture. Rather than functioning as a standalone component, this drive is designed to operate as a coordinated execution-layer element within a layered automation system — working in concert with programmable logic controllers, distributed I/O modules, communication gateways, and human-machine interfaces to deliver consistent, scalable, and maintainable motion control across demanding industrial environments.

In modern industrial control architectures, the execution layer — where drives, actuators, and field devices reside — must maintain precise synchronization with the control layer above it. The 1336F-B015-AA-EN achieves this through its native compatibility with Rockwell Automation’s control ecosystem, supporting integration with ControlLogix and SLC 500 platform controllers via Remote I/O (RIO) communication. This enables the drive to receive speed references, start/stop commands, and fault acknowledgment signals directly from the PLC control layer without requiring additional protocol conversion hardware, reducing system complexity and improving overall communication reliability.

From a system architecture perspective, the 1336F-B015-AA-EN occupies a critical position between the I/O layer and the physical process. Its analog and digital I/O terminals interface directly with field sensors, proximity switches, and process transmitters, while its serial communication port allows parameter monitoring and diagnostics to be surfaced at the HMI layer — typically a PanelView or FactoryTalk View terminal — giving operators real-time visibility into drive status, output frequency, motor current, and fault history without interrupting production.

Power layer design is equally important in any robust control cabinet. The 1336F-B015-AA-EN operates on a 480V AC, three-phase input and delivers a regulated variable-frequency output to the connected motor. When deployed alongside a properly sized 1321 line reactor or 1321-3R line filter, the drive’s input harmonic distortion is significantly reduced, protecting upstream power distribution equipment and extending the service life of both the drive and the motor. For applications requiring enhanced power quality, pairing with a 1336-MOD-L2 dynamic braking module provides controlled deceleration capability, particularly valuable in high-inertia load applications such as centrifuges, conveyors, and compressors.

Redundancy and fault tolerance are foundational requirements in critical process industries. While the 1336F-B015-AA-EN is a single-drive unit, system architects frequently deploy it within a primary/standby drive configuration using a 1336-GM1 bypass contactor module, allowing automatic transfer to a direct-on-line motor start in the event of a drive fault. This architecture ensures process continuity in applications where unplanned downtime carries significant operational or safety consequences. The drive’s built-in fault logging and parameter retention further support rapid recovery — technicians can restore a replacement unit to full operational configuration in minutes using the 1336-MOD-L1 remote operator interface or a compatible DriveExplorer software session.

For distributed control architectures spanning large plant floors or multiple process zones, the 1336F-B015-AA-EN integrates naturally into multi-drop Remote I/O networks alongside other 1336 FORCE drives, 1746 SLC I/O modules, and 1771 PLC-5 I/O racks. This network topology allows a single ControlLogix L6x or SLC 5/05 processor to manage dozens of drive nodes with deterministic scan times, maintaining tight coordination between speed-controlled axes, process interlocks, and safety relay outputs. The result is a unified control architecture where every layer — from the 1756-L85E ControlLogix controller at the top to the 1336F-B015-AA-EN at the execution layer — operates as part of a coherent, engineered system rather than a collection of independent devices.

Engineering teams responsible for long-term plant maintenance will appreciate the 1336F-B015-AA-EN’s standardized parameter structure, which is consistent across the 1336 FORCE product family. This consistency reduces technician training requirements, simplifies spare parts management, and enables cross-referencing of drive configurations between similar installations. Combined with our 12-Month Warranty coverage, which includes functional testing, parameter verification, and documented quality inspection prior to shipment, procurement teams can confidently specify this drive for both new installations and replacement applications without compromising system reliability or warranty continuity.

Product Specification Table

System Compatibility Notes

The 1336F-B015-AA-EN achieves its full performance potential when deployed as part of a coordinated control system rather than as an isolated drive. In a typical 1336 FORCE architecture, the drive operates under the command of a 1756-L85E ControlLogix controller or a SLC 5/05 processor, which issues speed references and process interlocks via a structured Remote I/O network. The I/O layer is typically populated with 1746-IB16 digital input modules and 1746-OB16 digital output modules mounted in a 1746 SLC chassis, providing the discrete signal interface between field devices and the control program.

Power quality at the drive input is managed by a 1321-3RA line reactor, which limits inrush current and reduces harmonic distortion on the 480V bus. For applications requiring controlled deceleration, a 1336-MOD-L2 dynamic braking module is mounted adjacent to the drive within the control cabinet, dissipating regenerative energy through a braking resistor assembly. Cabinet power distribution is handled through a 1606-XLP power supply providing 24VDC logic power to I/O modules, communication adapters, and relay coils throughout the enclosure.

At the network layer, a 1761-NET-ENI Ethernet interface module bridges the drive’s serial port to the plant Ethernet backbone, enabling remote parameter access and fault diagnostics from a centralized SCADA workstation. The HMI layer is served by a 2711P-T10C21D8S PanelView Plus 7 terminal, which displays real-time drive status, output frequency, motor current, and alarm history. Safety functions are implemented through a 1791DS-IB12 GuardLink safety I/O module, which monitors emergency stop circuits and safety gate interlocks, issuing a controlled stop command to the drive upon safety event detection. This complete, coordinated architecture ensures that the 1336F-B015-AA-EN operates not as a standalone device, but as a fully integrated member of a deterministic, maintainable, and scalable control system.

Industrial Application Notes

The 1336F-B015-AA-EN is deployed across a broad range of industrial sectors where precise motor speed control and system-level integration are essential operational requirements.

In manufacturing and assembly lines, the drive controls conveyor belt speeds, rotary indexing tables, and material handling systems, synchronizing motor output with upstream and downstream process equipment under PLC coordination. In water and wastewater treatment facilities, it manages pump and blower motor speeds in response to flow demand signals from process instrumentation, reducing energy consumption and extending pump service intervals through soft-start and variable-speed operation.

In oil, gas, and petrochemical processing, the drive is integrated into compressor and fan control loops within hazardous-area control panels, where its stable V/Hz control and fault logging capabilities support both process safety and regulatory compliance. Mining and mineral processing applications leverage the drive’s robust overload capacity for crusher feed conveyors, ball mill drives, and slurry pump systems, where load variability demands reliable torque delivery across the full speed range.

In power generation and utilities, the 1336F-B015-AA-EN is used in auxiliary motor control applications including cooling tower fans, boiler feed pumps, and forced-draft blowers, where energy efficiency and remote supervisory control are primary design objectives. Packaging and bottling lines utilize the drive for precise speed matching between filling, capping, and labeling stations, ensuring product quality and minimizing changeover time. Across all these sectors, the drive’s compatibility with Rockwell Automation’s control platform ensures that system integrators can deploy, commission, and maintain it using familiar tools and standardized engineering practices.

Product Compatibility FAQ

Q1: Is the 1336F-B015-AA-EN compatible with ControlLogix and SLC 500 controllers for direct network integration?
Yes. The 1336F-B015-AA-EN supports Remote I/O (RIO) communication, which is natively compatible with both ControlLogix and SLC 500 platforms. When connected to a 1747-SN Remote I/O scanner or a 1756-DHRIO ControlLogix communication module, the drive appears as a standard I/O rack node on the RIO network, allowing the PLC program to read drive status words and write command words using standard ladder logic instructions. No additional protocol conversion hardware is required for basic speed and direction control, significantly simplifying system commissioning and reducing panel wiring complexity.

Q2: How does the 12-Month Warranty apply to replacement installations, and what does it cover?
Our 12-Month Warranty covers the 1336F-B015-AA-EN against functional defects arising from component failure or workmanship issues for a period of twelve months from the date of shipment. Prior to dispatch, each unit undergoes functional power-on testing, parameter verification, and visual inspection, with results documented in a quality inspection record that ships with the unit. The warranty applies equally to new installation and direct replacement scenarios. In the event of a warranty claim, we provide technical support to assist with fault diagnosis and, where applicable, unit replacement or repair at no additional cost to the customer.

Q3: What commissioning steps are recommended when integrating the 1336F-B015-AA-EN into an existing 1336 FORCE multi-drive architecture?
When adding the 1336F-B015-AA-EN to an existing multi-drive RIO network, the commissioning sequence should begin with assigning a unique RIO node address using the drive’s onboard DIP switches, ensuring no address conflicts with existing nodes on the network. The drive’s parameter set — including motor nameplate data, acceleration/deceleration ramps, current limit, and fault response configuration — should be programmed using DriveExplorer software or the 1336-MOD-L1 remote operator interface before the drive is placed under PLC control. Following parameter entry, a no-load motor run should be performed to verify direction of rotation and speed reference scaling before connecting the driven load. Finally, the PLC program should be verified to confirm correct mapping of the drive’s status and command words within the I/O image table, and a full functional test under load should be conducted with process interlocks active.
