Allen-Bradley 1336T-MCB-SP34B Industrial Network Interface for PLUS II Systems

Allen-Bradley 1336T-MCB-SP34B Industrial Network Interface for PLUS II Systems

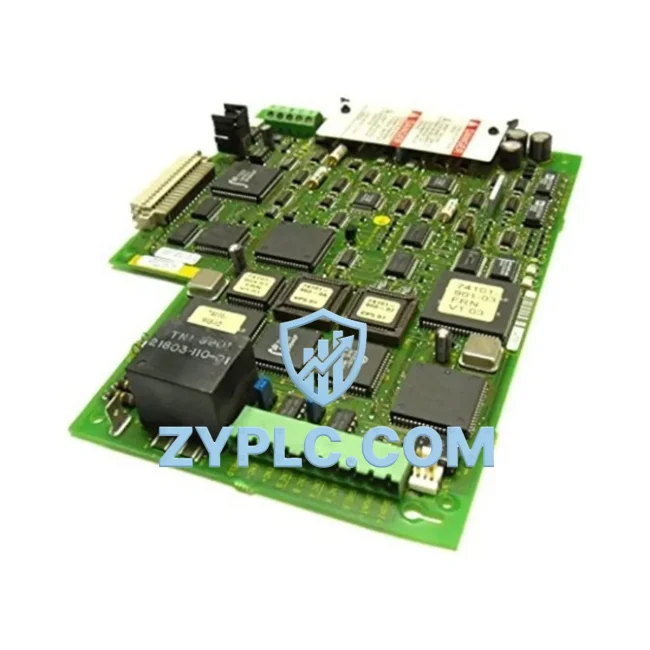

The Allen-Bradley 1336T-MCB-SP34B (Part No. 74101-772-54) is the Main Control Board engineered for the 1336 PLUS II series of AC variable-frequency drives. As the central intelligence of the drive platform, this board governs all critical data pathways between field-level devices and upper-layer control systems — making it a foundational component in any modern smart factory architecture. Whether you are maintaining an existing Rockwell Automation infrastructure or expanding a multi-node industrial network, the 1336T-MCB-SP34B delivers the communication reliability, protocol compatibility, and real-time data throughput that demanding production environments require.

In today’s connected manufacturing landscape, the ability to move accurate process data from the motor shaft to the SCADA dashboard without latency or packet loss is non-negotiable. The 1336T-MCB-SP34B sits at the heart of this data chain, interfacing directly with the drive’s power section while simultaneously maintaining bidirectional communication with supervisory systems. Its architecture supports integration with Allen-Bradley’s broader 1336 PLUS II ecosystem, enabling seamless coordination across multi-drive production lines, conveyor systems, pump stations, compressor banks, and precision motion applications.

Network Communication Table

Connected Automation Data Flow

Understanding the 1336T-MCB-SP34B requires viewing it within the full industrial data chain rather than as a standalone component. In a typical smart factory deployment, the data journey begins at the sensor and actuator layer — where encoders, thermocouples, pressure transmitters, and proximity switches feed raw process signals into the drive’s I/O terminals. The 1336T-MCB-SP34B processes these signals internally and translates them into structured network data packets that travel upstream through the plant’s communication backbone.

At the field bus layer, the board communicates natively with Allen-Bradley 1203-GD1 DeviceNet Communication Adapter modules, enabling the drive to participate as a node on a DeviceNet segment alongside other field devices. This allows a ControlLogix L7x or CompactLogix L3x PLC to poll drive speed, current draw, fault codes, and output frequency in real time — without requiring dedicated point-to-point wiring for each parameter. On legacy installations, the 1336T-MCB-SP34B interfaces with DH+ networks through 1336-GM1 or 1336-BDB-SP1B gateway modules, preserving backward compatibility with SLC 500 and PLC-5 control platforms that remain active in many process industries.

Moving up the architecture, the drive data aggregated by the 1336T-MCB-SP34B feeds into Rockwell Automation FactoryTalk View SE SCADA servers and PanelView Plus HMI terminals. Operators can monitor real-time drive parameters — including output voltage, DC bus voltage, motor speed, and thermal overload status — directly on the HMI screen, with alarm thresholds configured to trigger automatic notifications when values exceed safe operating limits. This closed-loop visibility is critical in applications such as water treatment pump stations, where undetected drive faults can result in process shutdowns or equipment damage.

For multi-drive installations, the 1336T-MCB-SP34B enables coordinated control across parallel drive strings. In a conveyor synchronization application, for example, multiple 1336 PLUS II drives — each equipped with a properly functioning MCB — can receive synchronized speed references from a master PLC, ensuring belt tension and product flow remain consistent across all zones. The 1336-L11E or 1336-L13E power modules paired with this control board are designed to operate within this coordinated framework, and their performance is directly dependent on the integrity of the MCB’s communication logic.

At the edge layer, data from the 1336T-MCB-SP34B can be routed through Allen-Bradley 1783-NATR NAT Router modules or third-party edge gateways to cloud-based analytics platforms, enabling predictive maintenance algorithms to analyze drive performance trends over time. This remote diagnostic capability reduces unplanned downtime by identifying early indicators of bearing wear, insulation degradation, or cooling fan failure before they escalate into critical faults.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is protocol fragmentation — the coexistence of multiple incompatible communication standards across different generations of equipment. A plant that has evolved over two or three decades may simultaneously operate DeviceNet, Modbus RTU, Profibus DP, and proprietary serial protocols across its drive and controller inventory. When a 1336 PLUS II drive with a failed or outdated MCB cannot communicate with the plant’s control network, it effectively becomes a data island — visible to operators only through local keypad readouts, with no integration into the SCADA historian or alarm management system.

Replacing or restoring the 1336T-MCB-SP34B directly resolves this isolation. Once the board is operational, the drive re-establishes its network node identity, resumes reporting to the ControlLogix or SLC 500 PLC, and restores its parameter data to the FactoryTalk historian. Production managers regain full visibility into that drive’s contribution to the process — including energy consumption data that feeds into ISO 50001 energy management reporting.

For facilities undergoing digital transformation, the 1336T-MCB-SP34B also serves as a bridge between legacy drive infrastructure and modern IIoT architectures. By maintaining the drive’s network presence, the board enables data aggregation platforms to collect historical performance data that informs capital expenditure decisions — helping plant engineers determine whether a drive should be refurbished, replaced, or retained as part of a phased modernization plan.

Remote monitoring is another critical benefit. With the 1336T-MCB-SP34B restoring full network communication, maintenance teams can access drive diagnostics remotely through FactoryTalk Remote Access or VPN-connected SCADA clients — eliminating the need for on-site inspection during off-hours fault events. This capability is particularly valuable in geographically distributed operations such as pipeline pump stations, water distribution networks, and multi-site manufacturing campuses.

System scalability is also preserved. A functioning MCB ensures that the 1336 PLUS II drive can be reconfigured, re-parameterized, and integrated into expanded control architectures without requiring hardware replacement. As production lines are reconfigured or new equipment is added, the drive remains a flexible, network-addressable asset rather than a fixed, manually operated component.

Every 1336T-MCB-SP34B unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, parameter read/write capability, and fault response behavior. Units are shipped with a 12-month warranty covering manufacturing defects and communication failures, with global logistics via DHL and FedEx ensuring rapid delivery to maintenance teams worldwide.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1336T-MCB-SP34B support?
The 1336T-MCB-SP34B supports DeviceNet and DH+ (Data Highway Plus) natively, with ControlNet capability available through compatible adapter modules such as the 1203-CN1. RS-232 and RS-485 serial interfaces are also supported for direct HMI or programming terminal connections. This multi-protocol capability ensures compatibility with a wide range of Rockwell Automation PLC platforms, including ControlLogix, CompactLogix, SLC 500, and PLC-5 systems.

Q2: How does this board affect SCADA and HMI integration?
The 1336T-MCB-SP34B is the primary enabler of SCADA and HMI integration for the 1336 PLUS II drive. Without a functioning MCB, the drive cannot transmit real-time parameter data to FactoryTalk View SE servers or PanelView Plus terminals. Restoring or replacing the MCB immediately re-establishes the drive’s network presence, allowing operators to monitor speed, current, fault status, and energy consumption from any connected HMI or SCADA workstation.

Q3: What is the network stability and communication latency of this board?
The 1336T-MCB-SP34B is designed for deterministic communication on DeviceNet and DH+ networks, with typical scan cycle times in the range of 5–20 ms depending on network load and node count. This latency profile is suitable for closed-loop speed control, process monitoring, and alarm management applications. Network stability is maintained through the board’s onboard watchdog logic, which detects communication timeouts and triggers configurable fault responses to protect the drive and connected machinery.

Q4: Does ZYPLC provide testing and warranty coverage for this part?
Yes. Every 1336T-MCB-SP34B unit supplied by ZYPLC is pre-tested for communication functionality, parameter integrity, and fault response prior to shipment. All units are covered by a 12-month warranty against manufacturing defects and communication failures. In-stock units are available for immediate dispatch via DHL or FedEx to destinations worldwide. For volume orders or urgent requirements, contact ZYPLC directly at +86 19859288691 or [email protected].
