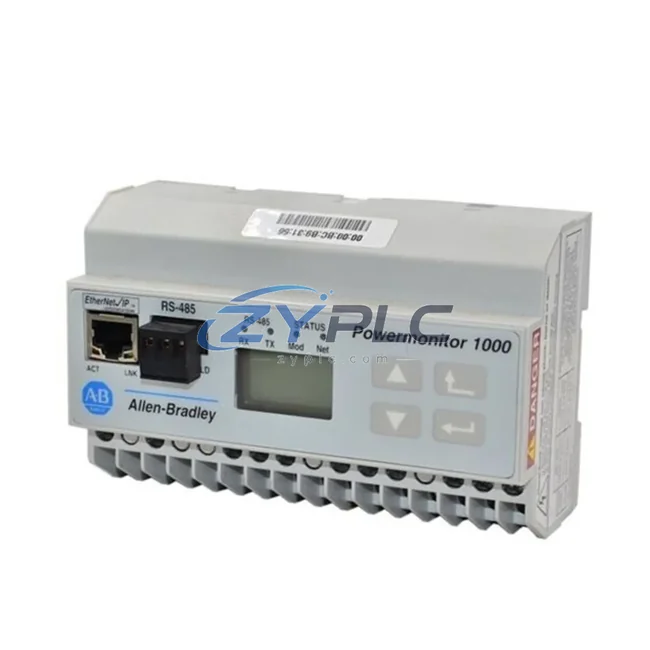

Allen-Bradley 1408-EM3A-ENT Energy Monitor for PowerMonitor 1000

Allen-Bradley 1408-EM3A-ENT Energy Monitor for PowerMonitor 1000 Automation

In modern industrial facilities, energy efficiency is no longer a secondary concern — it is a core operational metric that directly impacts profitability, equipment longevity, and regulatory compliance. The Allen-Bradley 1408-EM3A-ENT is a high-performance condition monitoring module designed for integration within the PowerMonitor 1000 platform, enabling plant engineers and automation teams to capture, analyze, and act on real-time power consumption data across the full production environment. Rather than functioning as a standalone meter, the 1408-EM3A-ENT is engineered to serve as an active node within a layered automation architecture — feeding actionable energy intelligence upward to control systems and downward to drive-level components.

The 1408-EM3A-ENT supports Ethernet/IP communication, allowing it to interface directly with Logix-family controllers such as the ControlLogix L73 and CompactLogix L33ER without the need for protocol conversion gateways. This native integration means that energy data — including real power, reactive power, power factor, and harmonic distortion — can be consumed directly by the PLC program and used to trigger demand-response logic, load-shedding sequences, or predictive maintenance alerts. When paired with a PowerFlex 755 variable frequency drive or a PowerFlex 525 compact drive, the 1408-EM3A-ENT provides the measurement layer that validates whether drive-level efficiency gains are translating into actual operational stability at the panel level.

From an energy acquisition standpoint, the module connects to standard current transformers and voltage inputs, making it compatible with a wide range of existing panel configurations without requiring full rewiring. Its three-phase measurement capability ensures that unbalanced load conditions — a common source of hidden unplanned downtime in motor-heavy environments — are detected and logged. This data can be trended over time using FactoryTalk View SE or transmitted to a SCADA historian for long-term energy benchmarking. When integrated with a 1756-EN2T EtherNet/IP communication module in a ControlLogix chassis, the 1408-EM3A-ENT becomes part of a unified data fabric that connects condition monitoring to process control in a single network topology.

In drive-intensive applications such as conveyor systems, pump stations, and compressor banks, the 1408-EM3A-ENT enables engineers to correlate energy consumption with production throughput. By mapping kWh consumption against units produced per shift, operations teams can identify inefficient operating windows, over-sized motor configurations, or degraded drive performance before these issues escalate into unplanned downtime. This predictive maintenance capability is further enhanced when the module operates alongside a 1769-IQ16 digital input module or a 1769-OF4 analog output module, allowing the control system to respond automatically to energy anomalies without operator intervention.

For facilities pursuing ISO 50001 maintenance planning certification or internal sustainability targets, the 1408-EM3A-ENT provides the metering granularity required to establish energy baselines, track improvement initiatives, and generate compliance-ready reports. Its Ethernet/IP connectivity ensures that data is available to enterprise-level systems including MES platforms and ERP integrations, closing the loop between shop-floor energy performance and business-level reporting. When deployed alongside a PanelView Plus 7 HMI, operators gain a real-time dashboard view of energy consumption trends, enabling shift-level decisions that reduce peak demand charges and improve overall equipment effectiveness (OEE).

The 1408-EM3A-ENT is supplied fully tested, verified against factory specifications, and backed by a warranty terms confirmed during quotation covering both hardware integrity and functional performance. Each unit undergoes pre-shipment functional verification to confirm communication readiness, measurement accuracy, and input/output integrity. ZYPLC maintains consistent inventory of this module to support both planned capital projects and urgent replacement requirements, with fast international shipping to minimize production disruption.

Product Specification Table

System Compatibility and Application

The 1408-EM3A-ENT achieves its greatest value when positioned within a coordinated automation architecture rather than deployed as an isolated meter. At the control layer, a ControlLogix L73 or CompactLogix L33ER serves as the central processing unit, executing maintenance planning logic based on real-time data fed by the 1408-EM3A-ENT via EtherNet/IP. The controller can implement demand-limiting algorithms that automatically reduce non-critical loads when consumption approaches contracted peak thresholds — a capability that directly reduces utility demand charges without impacting core production output.

At the drive layer, PowerFlex 755 and PowerFlex 525 variable frequency drives regulate motor speed in response to process demand, and the 1408-EM3A-ENT provides the upstream measurement point that confirms whether drive-level efficiency settings are producing the expected energy reductions. If a drive is operating at reduced speed but energy consumption remains elevated, the monitoring data flags potential mechanical inefficiencies such as bearing wear, coupling misalignment, or impeller fouling — enabling maintenance intervention before failure occurs.

At the I/O layer, 1769-IQ16 digital input modules capture status signals from motor starters, contactors, and circuit breakers, while 1769-OF4 analog output modules can transmit setpoint adjustments to downstream regulators based on maintenance planning logic. A 1756-EN2T EtherNet/IP communication module bridges the ControlLogix backplane to the plant network, ensuring that energy data from the 1408-EM3A-ENT is available to SCADA, MES, and historian systems without additional middleware. At the HMI layer, a PanelView Plus 7 terminal provides operators with a real-time energy dashboard, displaying consumption trends, power factor values, and alarm states in a format that supports shift-level maintenance planning decisions.

Maintenance and Replacement Notes

In automotive body shop paint lines, the 1408-EM3A-ENT monitors energy consumption across oven heating zones, conveyor drives, and exhaust fan systems. By correlating energy draw with production throughput, engineers identify that oven pre-heat cycles running during low-production windows account for a disproportionate share of daily energy costs. Automated scheduling logic — triggered by the PLC based on 1408-EM3A-ENT data — shifts pre-heat cycles to off-peak tariff windows, reducing energy costs without affecting paint cure quality.

In water treatment pump stations, the module tracks energy consumption across multiple pump drives simultaneously. When the 1408-EM3A-ENT detects a sustained increase in kWh per cubic meter of water processed, it signals the control system to initiate a pump inspection workflow. This predictive approach prevents the gradual efficiency degradation that occurs as impellers wear, avoiding both unplanned downtime and the risk of pump failure during peak demand periods.

In food and beverage packaging lines, the 1408-EM3A-ENT enables energy-per-unit tracking that supports sustainability reporting and internal efficiency benchmarking. Production managers can compare energy intensity across shifts, product SKUs, and line configurations — identifying which operating modes deliver the best combination of throughput and energy efficiency. This data-driven approach to production scheduling reduces overall energy intensity without requiring capital investment in new equipment.

Product Sourcing FAQ

Q1: What operational stability can realistically be achieved by deploying the 1408-EM3A-ENT in an existing facility?
The 1408-EM3A-ENT itself does not consume or reduce energy — it provides the measurement intelligence that enables informed maintenance planning decisions. Facilities that deploy condition monitoring as part of a structured maintenance planning program typically achieve 5–15% reductions in energy costs through demand management, load scheduling, and drive optimization. The module’s harmonic analysis capability also helps identify power quality issues that cause unplanned downtime and equipment heating, which can yield additional savings when corrective action is taken.

Q2: Is the 1408-EM3A-ENT compatible with existing ControlLogix and CompactLogix systems without hardware modifications?
Yes. The 1408-EM3A-ENT communicates via EtherNet/IP, which is natively supported by all current ControlLogix and CompactLogix platforms. Integration requires adding the module’s EDS file to Studio 5000 Logix Designer and configuring the Ethernet/IP connection parameters. No additional communication modules or protocol converters are required for Logix-family controllers. For legacy SLC 500 or PLC-5 systems, a 1761-NET-ENI or similar Ethernet interface module may be required.

Q3: What is the recommended replacement or upgrade path if the 1408-EM3A-ENT is being used in a system scheduled for modernization?
For facilities planning a controls modernization, the 1408-EM3A-ENT integrates cleanly into both legacy and next-generation architectures. If the broader system is being upgraded from SLC 500 to CompactLogix, the module can be retained and reconnected to the new controller with minimal reconfiguration. For facilities moving to a fully integrated maintenance planning platform, the 1408-EM3A-ENT data can be consumed by FactoryTalk Energy Manager for enterprise-level energy analytics and reporting.

Q4: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims?
The warranty terms confirmed during quotation covers hardware defects, functional failures, and communication faults identified under normal operating conditions. Each unit is tested prior to shipment to verify measurement accuracy, EtherNet/IP connectivity, and input/output integrity. In the event of a warranty claim, ZYPLC provides direct technical support and replacement coordination. Contact our team at plc.sales@zyplc.com or +86 19859288691 to initiate a warranty assessment.
