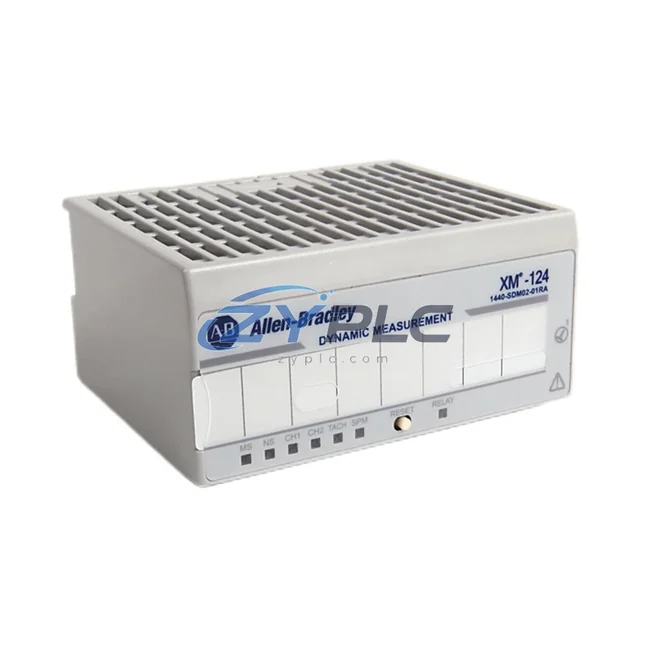

Allen-Bradley 1440-SDM02-01RA Dynamic Measurement Module for XM Series Systems

Allen-Bradley 1440-SDM02-01RA: Industrial Data Link for XM Series Smart Factory Systems

The Allen-Bradley 1440-SDM02-01RA is a high-performance XM Series Dynamic Measurement Module engineered to serve as a critical industrial network interface within condition monitoring and predictive maintenance architectures. Designed for seamless integration across field devices, PLC controllers, remote I/O systems, HMI panels, SCADA platforms, variable frequency drives, and edge gateways, the 1440-SDM02-01RA delivers real-time vibration and dynamic signal data across the full automation data chain — from raw signal acquisition at the sensor level to actionable intelligence at the supervisory layer.

In modern smart factory environments, the ability to continuously capture, transmit, and analyze dynamic measurement data without latency or data loss is non-negotiable. The 1440-SDM02-01RA addresses this requirement by providing a robust, protocol-compatible measurement node that bridges the gap between rotating machinery, field instrumentation, and upper-level control systems. Whether deployed in a standalone condition monitoring loop or embedded within a broader Rockwell Automation ControlLogix or CompactLogix control architecture, this module ensures that vibration, speed, and dynamic process data flow reliably from the machine to the control room.

Compatibility & Integration Notes

Connected Automation Data Flow

The 1440-SDM02-01RA operates at the heart of a layered industrial data architecture. At the field level, vibration sensors and accelerometers mounted on rotating equipment — motors, pumps, compressors, and gearboxes — feed raw dynamic signals directly into the module’s high-speed analog input channels. The module processes these signals locally, performing real-time FFT analysis and waveform capture before packaging the data for transmission across the XM expansion bus.

Within the XM Series ecosystem, the 1440-SDM02-01RA works in close coordination with the Allen-Bradley XM-120 Dynamic Measurement Module and the XM-220 Dynamic Measurement Module, sharing a common backplane and synchronizing measurement cycles to ensure time-coherent data across multiple measurement points. For applications requiring gateway-level protocol conversion, the Allen-Bradley XM-440 Master Relay Module serves as the network bridge, translating XM bus data into DeviceNet or EtherNet/IP packets consumed by upstream ControlLogix L7x or CompactLogix L3x PLC controllers.

At the control layer, the PLC processes incoming vibration and dynamic measurement data alongside signals from Allen-Bradley Point I/O remote I/O modules and 1734-AENT EtherNet/IP adapters, enabling coordinated machine control and condition-based logic execution. HMI panels — such as the Allen-Bradley PanelView Plus 7 — display real-time vibration trends, alarm states, and equipment health dashboards, giving operators immediate visibility into machine condition without requiring manual inspection.

At the SCADA and supervisory level, Rockwell Automation FactoryTalk View SE aggregates data from multiple 1440-SDM02-01RA nodes distributed across the plant floor, enabling plant-wide condition monitoring, historical trending, and alarm management. For facilities integrating third-party SCADA platforms, EtherNet/IP-to-Modbus TCP gateways and OPC-UA edge servers can be deployed to bridge the Rockwell ecosystem with external data historians and MES systems, ensuring that dynamic measurement data from the 1440-SDM02-01RA reaches every layer of the digital factory architecture.

Variable frequency drives — including the Allen-Bradley PowerFlex 755 — can be configured to receive speed reference signals derived from the 1440-SDM02-01RA’s tachometer inputs, enabling closed-loop vibration-controlled drive operation. This integration is particularly valuable in applications where resonance avoidance or critical speed bypass logic is required to protect rotating machinery from structural damage.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of condition monitoring data from the broader control and information network. Legacy vibration analyzers and standalone measurement instruments often operate in isolation, generating data that never reaches the PLC, SCADA, or ERP layer — creating data silos that undermine predictive maintenance programs and production transparency.

The 1440-SDM02-01RA directly addresses this challenge by functioning as a native network node within the Rockwell Automation ecosystem. Rather than requiring proprietary software or manual data export, the module transmits dynamic measurement data in real time over DeviceNet or EtherNet/IP — the same industrial Ethernet backbone used by PLCs, remote I/O, and HMI systems throughout the plant. This eliminates the protocol mismatch that typically isolates vibration data from process control data, enabling unified alarm management, coordinated shutdown logic, and integrated production reporting.

For facilities managing multiple production lines or geographically distributed assets, the 1440-SDM02-01RA supports remote diagnostics through the SCADA layer, allowing maintenance engineers to monitor equipment health, review waveform data, and acknowledge alarms from a central control room or remote workstation — without dispatching technicians to the field. This capability significantly reduces mean time to diagnosis (MTTD) and supports condition-based maintenance strategies that lower overall maintenance costs.

System scalability is another key advantage. Additional 1440-SDM02-01RA modules can be added to the XM expansion bus without requiring changes to the network infrastructure or PLC program architecture, allowing facilities to expand their condition monitoring coverage incrementally as production capacity grows. Each module added to the system is automatically recognized by the XM-440 master relay and integrated into the existing data flow, ensuring that system expansion is seamless and non-disruptive to ongoing production.

All units supplied by ZYPLC are sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a warranty terms confirmed during quotation. Availability confirmed by RFQ inventory ensures rapid order fulfillment and minimal lead times for both urgent replacement and planned project deployments.

Industrial Connectivity FAQ

Q1: What communication protocols does the 1440-SDM02-01RA support, and how does it integrate with EtherNet/IP networks?
The 1440-SDM02-01RA communicates natively over the XM expansion bus and integrates with DeviceNet and EtherNet/IP networks through the XM-440 Master Relay Module, which acts as the gateway between the XM backplane and the plant-wide industrial Ethernet infrastructure. This allows dynamic measurement data to be consumed directly by ControlLogix or CompactLogix PLCs without additional protocol conversion hardware.

Q2: How does the module ensure network stability and data integrity in high-vibration industrial environments?
The 1440-SDM02-01RA is designed for industrial-grade reliability, featuring DIN rail mounting, wide operating temperature tolerance, and noise-immune signal processing. The XM expansion bus uses deterministic communication timing to ensure that measurement data is transmitted at consistent intervals, preventing data loss or latency spikes that could compromise alarm response times or SCADA trending accuracy.

Q3: Can the 1440-SDM02-01RA be integrated with third-party SCADA or HMI systems outside the Rockwell Automation ecosystem?
Yes. While the module is natively optimized for Rockwell Automation platforms, EtherNet/IP-to-OPC-UA or EtherNet/IP-to-Modbus TCP gateways can be used to expose dynamic measurement data to third-party SCADA platforms, data historians, and MES systems. This makes the 1440-SDM02-01RA suitable for hybrid automation environments where multiple control system vendors are present.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every 1440-SDM02-01RA supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Pre-shipment testing includes power-on verification, communication bus integrity checks, and channel functionality validation to ensure that each unit performs to specification upon arrival. Replacement or repair is provided at no additional cost for units that fail within the warranty period under normal operating conditions.
