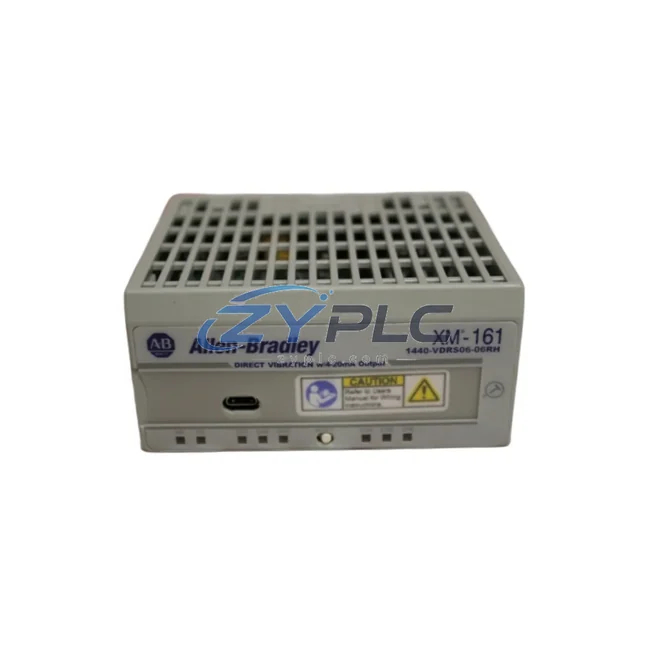

Allen-Bradley 1440-VDRS06-06RH Vibration Monitoring Module for XM Series Systems

Allen-Bradley 1440-VDRS06-06RH: Industrial Data Link for XM Series Condition Monitoring Networks

The Allen-Bradley 1440-VDRS06-06RH is a high-performance Overall Vibration Input Module within the Rockwell Automation XM Series condition monitoring platform. Designed for demanding smart factory environments, this module serves as a critical node in the industrial data chain — bridging raw vibration signals from rotating machinery directly into the plant-wide communication network. Whether integrated with a ControlLogix or CompactLogix PLC backbone, connected to a FactoryTalk View SCADA system, or feeding real-time data to a Plant PAx distributed control architecture, the 1440-VDRS06-06RH delivers the signal fidelity and network reliability that modern predictive maintenance strategies demand.

In a typical smart factory deployment, the 1440-VDRS06-06RH accepts analog vibration signals from accelerometers and velocity sensors mounted on motors, pumps, compressors, and gearboxes. These raw signals are conditioned, digitized, and transmitted over the EtherNet/IP industrial protocol — the same open-standard network backbone used by Allen-Bradley’s 1756 ControlLogix I/O modules, 1769 CompactLogix remote I/O racks, and 1734 POINT I/O distributed nodes. This protocol consistency eliminates the need for protocol conversion gateways at the field level, reducing network latency and simplifying system architecture.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the 1440-VDRS06-06RH’s role requires tracing the full data flow from field device to enterprise system. At the signal acquisition layer, industrial accelerometers and proximity probes feed raw vibration data into the module’s six input channels. The 1440-VDRS06-06RH processes these signals locally — computing overall vibration levels, peak values, and alarm thresholds — before packaging the results as EtherNet/IP data objects.

These data objects travel upstream through a managed industrial Ethernet switch — such as the Stratix 5700 or Stratix 2000 series — to the plant’s primary control network. Here, a 1756-L85E ControlLogix controller or a 1769-L36ERM CompactLogix controller receives the vibration data alongside process variables from other field devices: 4–20 mA temperature transmitters connected via 1734 POINT I/O analog input modules, pressure sensors wired to 1756-IF16 analog input cards, and motor speed feedback from PowerFlex 755 variable frequency drives communicating over the same EtherNet/IP segment.

At the supervisory layer, FactoryTalk View SE HMI servers poll the ControlLogix tags in real time, displaying vibration trends, alarm states, and machine health dashboards to operators on the plant floor. Simultaneously, a FactoryTalk Historian server archives time-stamped vibration records for long-term trend analysis and regulatory compliance. For multi-site operations, a FactoryTalk AssetCentre gateway aggregates condition monitoring data from multiple XM Series nodes across different production lines, enabling centralized remote diagnostics without requiring on-site personnel.

In more complex architectures, the 1440-VDRS06-06RH data stream can be routed through a 1783-ETAP EtherNet/IP Tap for passive network monitoring, or bridged to a 1788-EN2PAR EtherNet/IP-to-Parallel communication module for legacy system integration. Edge computing nodes — such as the Rockwell Automation Edge Gateway or third-party IIoT gateways — can subscribe to the EtherNet/IP data stream and forward selected vibration KPIs to cloud-based analytics platforms via MQTT or OPC-UA, completing the data journey from rotating shaft to enterprise dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is data isolation — the condition where critical machine health information exists only at the sensor level, invisible to the control system, SCADA platform, and maintenance team. The 1440-VDRS06-06RH directly addresses this problem by converting analog vibration signals into structured, network-accessible EtherNet/IP data that any authorized system on the plant network can consume.

Before deploying XM Series modules, many facilities relied on standalone vibration analyzers that required technicians to physically walk the plant floor with handheld instruments, collect data manually, and enter readings into spreadsheets. This approach introduced delays of days or weeks between data collection cycles, making it impossible to detect rapidly developing faults such as bearing spalling, shaft imbalance, or coupling misalignment before they caused unplanned downtime.

With the 1440-VDRS06-06RH integrated into the plant network, vibration data is continuously available to the ControlLogix controller, which can execute alarm logic, trigger automatic shutdowns, or initiate maintenance work orders through integration with a CMMS platform — all without human intervention. Production line transparency improves dramatically: supervisors can view real-time machine health status on FactoryTalk View dashboards, maintenance planners can schedule condition-based interventions rather than time-based replacements, and plant managers can access historical trend reports to justify capital investment decisions.

System scalability is another key advantage. The XM Series architecture allows additional 1440-series modules — such as the 1440-VDRP06-06RA dynamic measurement module or the 1440-TBS02-01RA temperature and speed input module — to be added to the same EtherNet/IP network segment without requiring changes to the existing network infrastructure. This modular expansion capability ensures that the condition monitoring system can grow alongside the facility’s production capacity and monitoring requirements.

All units supplied by ZYPLC are subject to pre-shipment functional testing, verifying channel integrity, network communication, and alarm output behavior before dispatch. Stock is maintained for rapid fulfillment, with international shipping via DHL Express and FedEx International Priority to support urgent maintenance and project timelines worldwide.

Industrial Connectivity FAQ

Q1: What communication protocol does the 1440-VDRS06-06RH use, and is it compatible with existing EtherNet/IP networks?
The 1440-VDRS06-06RH communicates exclusively over EtherNet/IP, Rockwell Automation’s standard industrial Ethernet protocol. It is fully compatible with any EtherNet/IP-capable controller, including ControlLogix, CompactLogix, and SoftLogix platforms, as well as third-party EtherNet/IP scanners. No protocol conversion gateway is required when integrating into an existing Allen-Bradley control network.

Q2: What is the typical network latency for vibration data transmission from the 1440-VDRS06-06RH to the controller?
In a properly configured EtherNet/IP network with a managed Stratix switch, the requested packet interval (RPI) for XM Series modules can be configured as low as 10 ms, providing near-real-time vibration data updates to the controller. Actual latency depends on network topology, switch configuration, and the number of devices on the segment, but typical deployments achieve sub-20 ms end-to-end data delivery.

Q3: Can the 1440-VDRS06-06RH be integrated with third-party SCADA systems, or is it limited to Rockwell Automation platforms?
While the module is optimized for Rockwell Automation ecosystems including FactoryTalk View and Plant PAx, its EtherNet/IP data can be accessed by any SCADA or HMI platform that supports EtherNet/IP implicit or explicit messaging — including Wonderware, Ignition by Inductive Automation, and Siemens WinCC via OPC-DA/UA bridging. For non-EtherNet/IP SCADA systems, an OPC-UA gateway or protocol converter can be used to translate the data stream.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 1440-VDRS06-06RH?
Every 1440-VDRS06-06RH unit supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing including channel input integrity checks, EtherNet/IP communication validation, and alarm output confirmation. Units are shipped in original or equivalent protective packaging with full export documentation to ensure compliance with international trade regulations.
