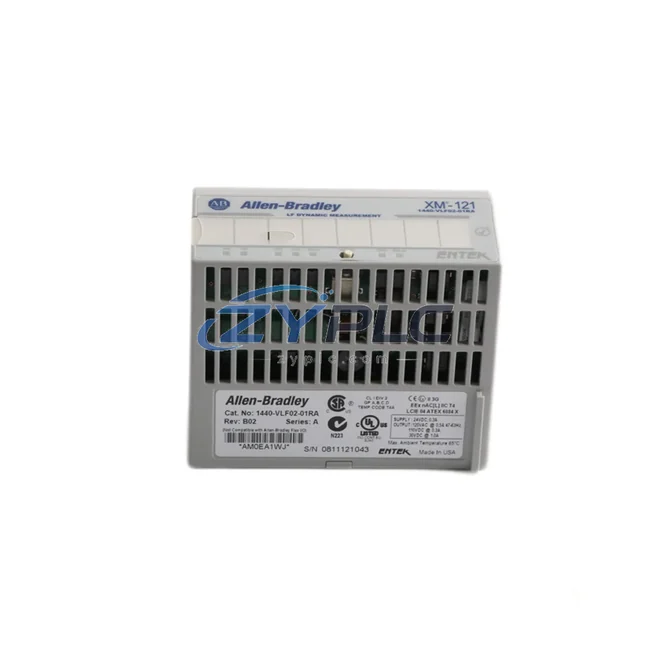

Allen-Bradley 1440-VLF02-01RA Vibration Monitor for XM Series

Allen-Bradley 1440-VLF02-01RA Vibration Monitor for XM Series

The Allen-Bradley 1440-VLF02-01RA is a precision dynamic measurement module within the XM-21 product family, engineered to occupy a critical role in layered industrial control system architectures. Rather than functioning as a standalone instrument, this module is designed to integrate seamlessly across the control layer, I/O layer, network layer, power layer, HMI layer, and execution layer of a complete automation system. Its primary function — continuous vibration and dynamic signal monitoring — feeds real-time condition data upward through the architecture, enabling predictive maintenance strategies, system-wide fault detection, and coordinated protective response across the entire control platform.

In modern industrial environments — spanning power generation, petrochemical processing, water treatment, mining, metallurgy, and continuous manufacturing — rotating machinery health is a foundational concern. The 1440-VLF02-01RA addresses this concern at the architecture level. By delivering high-resolution velocity and frequency measurements directly into the control network, it allows the supervisory control layer to make informed decisions without relying on manual inspection cycles. This reduces unplanned downtime, extends equipment service intervals, and supports the long-term maintenance efficiency that complex industrial facilities demand.

The module mounts within the XM Series DIN-rail chassis, sharing a common backplane with companion modules such as the 1440-VAQ02-01RA acceleration input module and the 1440-TBS02-01RA tachometer module. This shared backplane architecture ensures synchronized data acquisition across multiple measurement channels, which is essential when monitoring multi-bearing machinery or multi-shaft drive trains. The 1440-XMOD02 expansion module can extend the channel count without introducing additional communication latency, preserving the real-time integrity of the measurement network.

From a network integration perspective, the 1440-VLF02-01RA communicates via DeviceNet, enabling direct connection to Allen-Bradley ControlLogix or CompactLogix controllers through a 1756-DNB or 1769-SDN scanner module. This places the vibration data natively within the Logix tag database, where it can be consumed by ladder logic, function block diagrams, or structured text routines without requiring additional protocol conversion. For facilities already operating on EtherNet/IP backbones, the data path through the ControlLogix controller to a 1756-ENBT or 1756-EN2T communication module maintains full network transparency and supports remote monitoring via FactoryTalk View SE or equivalent SCADA platforms.

Power architecture compatibility is equally important in system design. The 1440-VLF02-01RA operates within the XM Series power distribution framework, typically supplied through a 1440-PSDC24-01RA DC power supply module. This dedicated power module isolates the measurement electronics from noise introduced by adjacent drive systems, relay outputs, or solenoid-driven actuators — a critical consideration in high-vibration environments where electrical interference can corrupt sensitive analog measurements. Redundant power configurations are supported at the chassis level, ensuring that the monitoring function remains active even during partial power system maintenance.

At the execution layer, the protective outputs of the 1440-VLF02-01RA can be wired to relay modules or directly to the digital input cards of the host controller, enabling automatic trip sequences for pumps, compressors, fans, or turbines when vibration thresholds are exceeded. This closed-loop protective architecture — from sensor to measurement module to controller to actuator — represents the full system integration value of the XM Series platform. Engineers commissioning this module should verify relay output wiring against the machine’s safety instrumented system (SIS) requirements and confirm that the trip setpoints are coordinated with the overall process safety logic.

For HMI integration, the vibration trend data collected by the 1440-VLF02-01RA is typically surfaced through PanelView Plus terminals or FactoryTalk View ME/SE applications, providing operators with real-time waveform displays, alarm annunciation, and historical trend analysis. This visibility layer is essential for maintenance teams who need to distinguish between normal operational vibration signatures and developing mechanical faults such as imbalance, misalignment, bearing wear, or resonance conditions.

Long-term system maintainability is a core design principle of the XM Series architecture. The 1440-VLF02-01RA supports hot-swap replacement within the chassis, minimizing process interruption during module servicing. Spare module inventory planning should account for the module’s role in the protective architecture — facilities with critical rotating assets typically maintain at least one spare unit on-site. ZYPLC supplies the 1440-VLF02-01RA with a warranty terms confirmed during quotation, supporting both immediate deployment needs and long-term inventory strategies for maintenance departments managing multi-site operations.

Product Specification Table

System Compatibility Notes

The 1440-VLF02-01RA achieves its full architectural value when deployed alongside a coordinated set of XM Series and ControlLogix platform components. A complete vibration monitoring and protective control system typically includes the following elements working in concert:

The 1440-VAQ02-01RA acceleration input module shares the same XM Series backplane, providing high-frequency acceleration data that complements the low-frequency velocity measurements of the 1440-VLF02-01RA — together covering the full vibration spectrum required for comprehensive machinery health assessment. The 1440-TBS02-01RA tachometer module supplies shaft speed reference signals, enabling the system to perform order-tracked analysis and distinguish speed-dependent vibration components from structural resonances.

At the controller level, a 1756-L73 ControlLogix CPU processes the DeviceNet data from the XM Series chassis through a 1756-DNB DeviceNet Bridge module, integrating vibration measurements directly into the plant-wide control strategy. The 1756-EN2T EtherNet/IP communication module extends this data to the SCADA layer, where FactoryTalk View SE provides operator visualization and alarm management. For facilities requiring redundant control, a 1756-SB ControlLogix SynchLink module supports controller redundancy configurations, ensuring that the protective monitoring function remains active during controller switchover events.

Power integrity across the XM Series chassis is maintained by the 1440-PSDC24-01RA power supply module, which provides filtered, regulated 24V DC to all measurement modules on the backplane. Terminal block assemblies and shielded sensor cables complete the field wiring architecture, ensuring signal integrity from the transducer to the measurement module input.

Industrial Application Notes

The 1440-VLF02-01RA is deployed across a wide range of heavy industrial applications where rotating machinery reliability is directly linked to production continuity and process safety.

In power generation facilities, the module monitors turbine bearing vibration, providing early warning of rotor imbalance or bearing degradation before catastrophic failure occurs. In petrochemical and refinery environments, it protects critical compressors and pumps that operate continuously under high process pressures, where unplanned shutdowns carry significant safety and financial consequences. Water treatment plants rely on the module to monitor large centrifugal pump stations, where vibration trending supports condition-based maintenance scheduling and reduces the risk of seal failures or impeller damage.

In mining and mineral processing operations, the 1440-VLF02-01RA is integrated into conveyor drive monitoring systems and crusher bearing protection circuits, where the harsh operating environment demands robust, reliable measurement hardware. Metallurgical and steel mill applications use the module to monitor rolling mill drive trains and continuous casting equipment, where vibration anomalies can directly affect product quality. In packaging and discrete manufacturing lines, the module supports predictive maintenance programs that minimize changeover downtime and extend the service life of high-speed rotating equipment.

Product Compatibility FAQ

Q1: Is the 1440-VLF02-01RA compatible with both ControlLogix and CompactLogix control platforms?
Yes. The 1440-VLF02-01RA communicates via DeviceNet, which is supported by both ControlLogix (via the 1756-DNB scanner) and CompactLogix (via the 1769-SDN scanner) platforms. The module’s data appears natively in the Logix tag database, enabling seamless integration with existing control programs regardless of which Logix platform is deployed. Verify DeviceNet node address assignments and scanner configuration during commissioning to ensure conflict-free network operation.

Q2: Can the 1440-VLF02-01RA be replaced without shutting down the entire XM Series chassis?
The XM Series architecture supports module-level hot-swap replacement, allowing the 1440-VLF02-01RA to be removed and replaced without powering down the entire chassis. However, the protective relay outputs associated with the module will be de-energized during replacement, which may affect the protective status of connected machinery. Coordinate module replacement with the operations team to ensure that appropriate manual protective measures are in place during the swap procedure. ZYPLC’s warranty terms confirmed during quotation covers the replacement module from the date of shipment.

Q3: What are the long-term spare parts and inventory considerations for facilities operating multiple XM Series systems?
For facilities with multiple XM Series installations, maintaining a standardized spare module inventory is strongly recommended. The 1440-VLF02-01RA is a common module type across XM-21 deployments, making it an efficient choice for consolidated spare parts programs. ZYPLC supports both single-unit and bulk procurement with consistent warranty terms confirmed during quotation coverage, enabling maintenance departments to manage spare inventory with confidence. Contact ZYPLC to discuss volume availability and lead time commitments for multi-site operations.
