Allen-Bradley 1444-DYN04-01RA Vibration Module

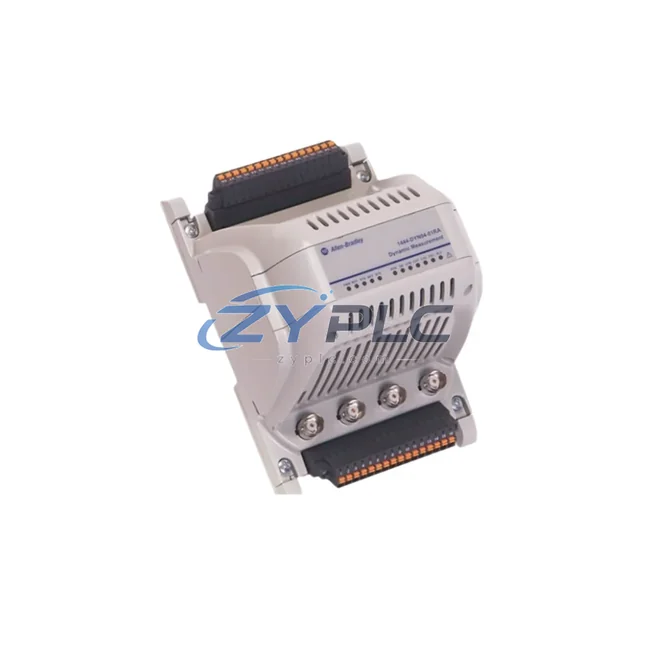

Allen-Bradley 1444-DYN04-01RA Vibration Module for Dynamix 1444 Automation

The Allen-Bradley 1444-DYN04-01RA is a high-precision vibration measurement module from the Rockwell Automation Dynamix 1444 series, engineered to deliver continuous, real-time asset health monitoring across demanding industrial environments. By capturing vibration signatures at the machine level, this module enables plant engineers to detect mechanical degradation early, reduce unplanned downtime, and systematically lower operating load across rotating equipment — from large induction motors to gearboxes, pumps, fans, and compressors.

In modern manufacturing, unplanned downtime is rarely caused by a single inefficient component. More often, it accumulates invisibly through misaligned shafts, worn bearings, unbalanced rotors, and resonance conditions that force motors to draw abnormal load just to maintain output. The 1444-DYN04-01RA addresses this at the source: by continuously monitoring vibration levels and feeding structured data into the control architecture, it allows the automation system to respond before mechanical stress translates into energy loss or catastrophic failure.

Product Specification Table

System Compatibility and Application

The 1444-DYN04-01RA is designed to integrate seamlessly into a layered industrial automation architecture where energy awareness is built into every control decision. At the controller level, it connects to a ControlLogix L73 or CompactLogix L33ER processor via EtherNet/IP, delivering structured vibration data that can be used directly in ladder logic or function block programs to trigger conditional actions — such as reducing drive speed, initiating a controlled shutdown, or flagging a maintenance alert.

On the drive side, the vibration data from the 1444-DYN04-01RA pairs naturally with a PowerFlex 755 or PowerFlex 525 variable frequency drive. When the module detects rising vibration amplitude on a pump or fan motor, the control system can instruct the VFD to reduce output frequency, lowering motor speed and cutting energy draw — often by Actual operating results depend on the installed system, load profile, and commissioning parameters. This closed-loop interaction between vibration sensing and drive control is one of the most effective operational-efficiency strategies available in modern process automation.

For servo-driven axes on precision production lines, the 1444-DYN04-01RA complements Kinetix 5700 servo drives by providing structural vibration context that helps distinguish between servo tuning issues and mechanical wear. This prevents unnecessary re-tuning cycles and reduces the unplanned downtimed in oscillating or hunting servo loops.

At the I/O and field level, the module works alongside POINT I/O 1734-AENT adapters and 1756-IB16 digital input modules to consolidate machine-level signals into a unified data stream. Operators monitoring the line through a PanelView Plus 7 HMI can view real-time vibration trends alongside production throughput and operating load metrics, enabling faster, more informed decisions on the shop floor.

For condition monitoring at the panel level, the 1444-DYN04-01RA integrates with PowerMonitor 5000 power quality meters to correlate vibration events with current draw spikes. When a bearing begins to fail, the PowerMonitor 5000 will often register a corresponding increase in motor current — and having both data streams in the same FactoryTalk Historian database allows maintenance teams to build predictive models that anticipate failures weeks in advance.

Maintenance and Replacement Notes

In a typical continuous process plant — such as a water treatment facility, a chemical blending line, or an automotive body shop — rotating equipment accounts for 60–70% of total electrical operating load. The majority of that energy is consumed by motors driving pumps, fans, conveyors, and compressors. When any of these machines develops a mechanical fault, energy efficiency drops immediately: a misaligned coupling increases bearing load and motor current; an unbalanced impeller creates vibration that the motor must overcome with additional torque; a worn gearbox introduces friction losses that compound over every operating hour.

The Allen-Bradley 1444-DYN04-01RA addresses these losses by providing continuous, high-resolution vibration data that makes mechanical degradation visible before it becomes costly. Plant engineers using this module in conjunction with Studio 5000 Logix Designer and FactoryTalk View SE can configure alarm thresholds based on ISO 10816 vibration severity standards, ensuring that any machine operating outside its optimal vibration envelope triggers an automated response — whether that is a speed reduction via the connected VFD, a maintenance work order in the CMMS, or a production line slowdown to protect downstream equipment.

The result is a measurable reduction in unplanned downtime, lower reactive maintenance costs, and a sustained improvement in overall equipment effectiveness (OEE). Plants that have deployed Dynamix 1444 modules across their critical rotating assets consistently report operational stability of 8–15% on monitored equipment, driven primarily by the elimination of mechanical inefficiencies that previously went undetected until failure.

Every 1444-DYN04-01RA unit supplied by ZYPLC is sourced from verified inventory channels, subjected to functional testing prior to shipment, and covered by a warranty terms confirmed during quotation. Stock is available for shipment arranged after confirmation, supporting both urgent replacement requirements and planned system upgrades.

Product Sourcing FAQ

Q1: How does the 1444-DYN04-01RA contribute to operational stability on the production line?
By detecting mechanical faults — such as bearing wear, imbalance, and misalignment — at an early stage, the module allows the control system to reduce motor load or schedule maintenance before the fault worsens. This prevents the abnormal load draw associated with degraded mechanical conditions and avoids the energy-intensive process of emergency repair and restart.

Q2: Is the 1444-DYN04-01RA compatible with existing ControlLogix and CompactLogix systems?
Yes. The module communicates via EtherNet/IP using the CIP protocol, making it fully compatible with ControlLogix and CompactLogix platforms programmed in Studio 5000 Logix Designer. It can be integrated into existing control programs without requiring a controller replacement or major architecture change.

Q3: Can this module replace a failed Dynamix 1444 unit already installed in our system?
The 1444-DYN04-01RA is a direct replacement for existing Dynamix 1444 series vibration modules. Configuration data stored in the controller project can typically be reused, minimizing recommissioning time. ZYPLC recommends verifying firmware compatibility with your existing controller revision before installation.

Q4: What does the warranty terms confirmed during quotation cover, and how is the unit tested before shipment?
Every unit undergoes functional verification testing prior to dispatch, confirming channel integrity, communication response, and power supply performance. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. ZYPLC’s technical team is available to support installation, configuration, and troubleshooting throughout the warranty period.
