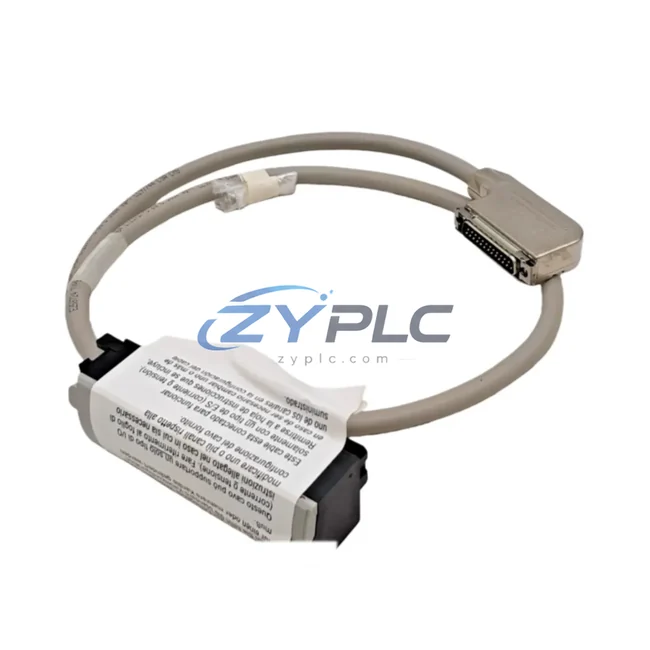

Allen-Bradley 1492-ACABLE010TB Analog Cable

Allen-Bradley 1492-ACABLE010TB Analog Cable for 1492 Series Automation

The Allen-Bradley 1492-ACABLE010TB is a precision-engineered analog cable module designed for the 1492 Series wiring system, purpose-built to reduce signal loss, minimize unplanned downtime, and streamline analog I/O connectivity in demanding industrial automation environments. As factories push toward leaner energy profiles and higher equipment utilization, the quality of every signal path matters — and the 1492-ACABLE010TB delivers exactly the low-resistance, high-integrity connection that modern industrial control architectures demand.

In production lines where analog signals govern variable-speed drives, servo positioning, and process feedback loops, even marginal cable inefficiencies translate into compounding energy losses and degraded control accuracy. The 1492-ACABLE010TB eliminates these inefficiencies by providing a direct, pre-terminated interface between Allen-Bradley analog I/O modules and field devices, reducing wiring time, connection errors, and the thermal losses associated with loose or improvised terminations.

Product Specification Table

System Compatibility and Application

The 1492-ACABLE010TB is most effective when deployed as part of a tightly integrated industrial control architecture. In a typical ControlLogix-based system, the 1756-IF16 analog input module receives 4–20 mA process signals from field transmitters — flow meters, pressure sensors, and temperature probes — that continuously report energy consumption data back to the controller. The 1492-ACABLE010TB provides the clean, pre-terminated signal path between the 1492-AIFM16-F-5 analog interface module and the I/O rack, eliminating the hand-wired termination points that introduce resistance and noise into these critical measurement loops.

On the drive side, accurate analog feedback is the foundation of efficient variable-frequency drive operation. When a PowerFlex 525 or PowerFlex 755 variable-frequency drive receives a clean, stable analog speed reference signal — delivered without distortion through a properly shielded cable like the 1492-ACABLE010TB — it can execute precise motor speed control that directly reduces energy consumption. A VFD running a pump or fan motor at 80% speed rather than full speed consumes roughly 51% of the energy, and that efficiency gain depends entirely on the integrity of the analog command signal. Signal noise or voltage drop caused by poor cabling forces the drive to hunt, overshoot, or default to conservative operating parameters, all of which erode operational stability.

For servo-driven axes on packaging lines, press feeders, or assembly stations, the Kinetix 5500 servo drive relies on analog and digital feedback to maintain precise torque and velocity profiles. The 1492-ACABLE010TB supports the clean analog interface needed between the 1769-OF4 analog output module and downstream drive command inputs, ensuring that servo motion profiles execute with the accuracy needed to maintain production line cycle times without energy-wasting overshoot or re-positioning moves.

At the system monitoring layer, energy data collected through 1756-IB16 digital input modules and analog modules connected via 1492-ACABLE010TB cables feeds into Studio 5000 Logix Designer condition monitoring routines or third-party SCADA platforms via EtherNet/IP. This closed-loop visibility allows maintenance teams to identify motors running above their efficiency curve, detect early bearing wear through current signature analysis, and schedule predictive maintenance before unplanned downtime disrupts production throughput. The 1783-ETAP EtherNet/IP tap further enables non-intrusive network monitoring without breaking the control loop, supporting continuous energy data collection across the automation network.

Power distribution integrity is equally important. The 1606-XLP power supply series provides stable 24 VDC to I/O racks and field devices, and the clean power delivery it enables is complemented by the signal integrity that the 1492-ACABLE010TB maintains in the analog wiring layer. Together, these components ensure that the energy data flowing through the control system accurately reflects actual field conditions rather than noise-corrupted approximations.

Maintenance and Replacement Notes

In a food and beverage bottling facility, analog signals from flow control valves and conveyor speed sensors are routed through 1492-ACABLE010TB cables to a CompactLogix controller managing line speed synchronization. By eliminating signal noise at the wiring layer, the controller can maintain tighter speed matching between conveyor zones, reducing the micro-stops and acceleration events that consume disproportionate energy. A single production line with ten conveyor drives, each avoiding two unnecessary acceleration cycles per hour, can recover meaningful kilowatt-hours over a production shift.

In an HVAC control application within a large manufacturing facility, the 1492-ACABLE010TB connects analog output modules to variable-frequency drives controlling air handling units. Clean analog signals allow the drives to respond accurately to building management system setpoints, avoiding the over-ventilation that occurs when drives receive noisy or drifting command signals. Facilities that have tightened their analog wiring infrastructure report 8–15% reductions in HVAC energy consumption — savings that accumulate continuously across every operating hour.

For predictive maintenance programs, the signal quality provided by the 1492-ACABLE010TB enables more reliable vibration and current signature data collection. When analog sensors monitoring motor current draw are connected through high-integrity cables, the subtle current waveform changes that indicate bearing wear or rotor imbalance are detectable earlier, allowing maintenance teams to intervene before a failure causes unplanned downtime. Unplanned downtime not only halts production but also generates unplanned downtime through emergency restart cycles, purge sequences, and the energy cost of restarting cold equipment.

Every unit shipped from our inventory undergoes outgoing functional testing to verify continuity, shielding integrity, and connector seating before dispatch. Combined with a warranty terms confirmed during quotation, this testing protocol ensures that the 1492-ACABLE010TB arrives ready to perform in your production environment without the commissioning delays associated with field-discovered wiring defects.

Product Sourcing FAQ

Q1: How does the 1492-ACABLE010TB contribute to operational stability in a VFD-controlled system?
By providing a low-resistance, shielded analog signal path between the I/O module and the variable-frequency drive command input, the 1492-ACABLE010TB ensures that speed reference signals are transmitted without noise or voltage drop. This allows the VFD to execute precise speed control, avoiding the energy-wasting hunting and overshooting that occur when drives receive degraded analog signals. Accurate speed control is the primary mechanism through which VFDs deliver their operational stability, and cable quality is a direct enabler of that accuracy.

Q2: Which Allen-Bradley analog I/O modules is the 1492-ACABLE010TB compatible with?
The 1492-ACABLE010TB is designed for use with Allen-Bradley 1492 Series analog interface modules, including the 1492-AIFM series, and is compatible with analog I/O modules in the 1756 ControlLogix and 1769 CompactLogix platforms such as the 1756-IF16, 1756-OF8, and 1769-OF4. For specific module compatibility, refer to the Allen-Bradley 1492 Wiring System selection guide or contact our technical team.

Q3: Can the 1492-ACABLE010TB replace an existing cable in a running production system?
Yes. The pre-terminated design of the 1492-ACABLE010TB allows for direct swap replacement of existing analog cables without rewiring the terminal block. Replacement should be performed during a scheduled maintenance window. After installation, verify analog signal values at the controller to confirm correct termination before returning the system to automatic operation.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
The warranty terms confirmed during quotation covers manufacturing defects, connector integrity, and cable continuity from the date of shipment. Before dispatch, each 1492-ACABLE010TB unit undergoes outgoing functional testing including continuity verification, shield continuity check, and connector seating inspection. Units that do not pass testing are not shipped. Warranty claims are processed through our standard RMA procedure; contact plc.sales@zyplc.com with your order reference and a description of the issue.
