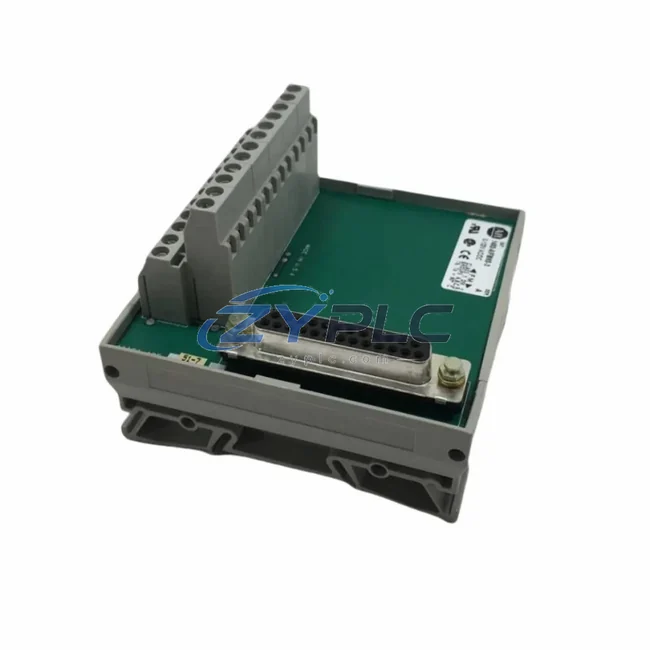

Allen-Bradley 1492-IFM40F-FS-2 Interface Module for 1492-IFM

Allen-Bradley 1492-IFM40F-FS-2 Interface Module: Control System and system integration

In modern industrial automation, every component within a control system must be selected not only for its individual specification, but for its role within the broader architecture. The Allen-Bradley 1492-IFM40F-FS-2 is a 40-point, fused, spring-clamp interface module engineered specifically for the 1492-IFM series wiring system — a platform designed to bridge the I/O layer of Rockwell Automation’s ControlLogix, CompactLogix, and FlexLogix controller families with field-level devices in a structured, maintainable, and scalable manner. Understanding this module’s position within the full control hierarchy is essential for engineers designing systems that demand long-term reliability, rapid commissioning, and simplified maintenance.

Product Specification Table

System Compatibility Notes

The 1492-IFM40F-FS-2 does not operate in isolation. Its value is realized when it is understood as a critical node within a layered automation architecture. In a typical ControlLogix-based system, the control layer is anchored by a 1756-L85E or 1756-L73 ControlLogix CPU, which manages program execution, data handling, and communication scheduling across the entire control network. This CPU resides in a 1756-A17 or 1756-A7 chassis, supported by a 1756-PA75 or 1756-PB75 power supply module that delivers stable, regulated DC power to all chassis-resident modules.

At the I/O layer, digital and analog I/O modules such as the 1756-IB32, 1756-OB32, or 1756-IF16 are installed within the same chassis or in remote I/O racks. These modules generate the physical I/O signals that must be routed to field devices — sensors, actuators, solenoids, and relay coils. This is precisely where the 1492-IFM40F-FS-2 delivers its architectural value: it provides a structured, fused, spring-clamp termination point that connects the I/O module’s 40-pin connector directly to individual field wiring terminals, eliminating the need for custom terminal block wiring and reducing the risk of miswiring during commissioning or maintenance.

The spring-clamp terminal design of the 1492-IFM40F-FS-2 is particularly significant in environments subject to vibration, thermal cycling, or frequent maintenance access — conditions common in mining, petrochemical, and heavy manufacturing facilities. Unlike screw-type terminals that can loosen over time, spring-clamp connections maintain consistent contact force throughout the product lifecycle, contributing directly to system uptime and reducing unplanned maintenance events.

Individual channel fusing on the output side provides an additional layer of protection. In the event of a field-side short circuit or overload, only the affected channel’s fuse is interrupted — the remaining channels and the I/O module itself continue to operate normally. This granular fault isolation is a key design principle in high-availability architectures, where a single field fault must never cascade into a broader system shutdown. When paired with a 1756-EN2T or 1756-EN3TR EtherNet/IP communication module, the control system can report I/O status and fault conditions in real time to a supervisory SCADA layer or historian, enabling predictive maintenance workflows.

At the human-machine interface layer, a PanelView Plus 7 or PanelView 5500 HMI provides operators with real-time visibility into I/O states, alarm conditions, and system diagnostics. The structured wiring approach enabled by the 1492-IFM40F-FS-2 ensures that I/O signal labeling and channel mapping remain consistent between the HMI tag database and the physical field wiring — a critical factor in reducing commissioning time and eliminating documentation errors during system handover.

For systems requiring redundancy, the 1492-IFM40F-FS-2 can be deployed in parallel wiring configurations alongside a 1756-SRM ControlLogix redundancy module, ensuring that switchover events between primary and secondary controllers do not disrupt field-level I/O connectivity. This system integration across control, I/O, communication, power, and interface layers is what defines a well-engineered automation architecture — and the 1492-IFM40F-FS-2 is a foundational component within that design philosophy.

Industrial Application Notes

The 1492-IFM40F-FS-2 finds application across a broad spectrum of industrial sectors where structured I/O wiring, channel-level fault protection, and long-term maintainability are non-negotiable requirements.

In discrete manufacturing and automotive assembly environments, the module is deployed in control panels managing conveyor systems, robotic end-of-arm tooling, and vision system triggers. The fused spring-clamp design allows maintenance technicians to replace individual channel fuses without disrupting adjacent circuits, minimizing line downtime during fault recovery.

In power generation and electrical substation applications, the 1492-IFM40F-FS-2 is used to interface ControlLogix I/O modules with protection relay contacts, breaker status signals, and transformer tap position indicators. The module’s ability to handle up to 250V AC/DC per channel makes it suitable for the mixed-voltage signal environments common in power infrastructure control panels.

In oil, gas, and petrochemical process plants, the module supports structured marshalling cabinet designs where I/O signals from field instruments — pressure transmitters, flow meters, and valve positioners — are terminated in a consistent, documented manner. This structured approach is essential for compliance with IEC 61511 functional safety requirements and simplifies the work of third-party safety auditors during plant commissioning and periodic safety reviews.

In water and wastewater treatment facilities, the 1492-IFM40F-FS-2 is integrated into pump station control panels and SCADA-connected RTU cabinets, where reliable I/O termination and ease of field wiring modification are critical for facilities operating with limited maintenance staff and extended service intervals.

In mining and mineral processing operations, the module’s vibration-resistant spring-clamp terminals and individual channel fusing make it a preferred choice for crusher control panels, conveyor drive interfaces, and ore sorting system I/O cabinets — environments where mechanical stress and electrical noise are constant challenges.

Product Compatibility FAQ

Q1: Which Allen-Bradley I/O modules are directly compatible with the 1492-IFM40F-FS-2, and how is the connection made?
The 1492-IFM40F-FS-2 is designed to connect directly to 40-pin I/O modules within the 1756 ControlLogix, 1769 CompactLogix, and 1794 Flex I/O families using a pre-wired 1492-CABLE series ribbon cable. The cable plugs into the I/O module’s 40-pin connector on one end and into the IFM module’s matching connector on the other, providing a fully documented, one-to-one channel mapping between the I/O module and the field wiring terminals. No additional terminal blocks or custom wiring are required, significantly reducing panel build time and the risk of wiring errors.

Q2: How does the 1492-IFM40F-FS-2 support long-term system maintainability and architecture consistency across multiple control panels?
By standardizing the I/O termination method across all panels in a facility, the 1492-IFM40F-FS-2 enables a consistent wiring architecture that simplifies training, documentation, and spare parts management. Maintenance technicians familiar with the IFM wiring system can work on any panel in the facility using the same procedures and tools. Individual channel fusing means that fault isolation is performed at the terminal level rather than at the I/O module level, preserving system uptime. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and have been functionally tested prior to shipment, ensuring that replacement modules integrate into the existing architecture without commissioning delays.

Q3: Can the 1492-IFM40F-FS-2 be used in safety-instrumented system (SIS) architectures or redundant control configurations?
The 1492-IFM40F-FS-2 is a passive wiring interface module and does not itself carry a SIL rating; however, it is fully compatible with safety I/O modules and redundant controller configurations when used as the field wiring termination point. In redundant ControlLogix architectures using the 1756-SRM redundancy module, the IFM module provides a stable, fused termination point that remains connected to field devices regardless of which controller chassis is active. For SIS applications, engineers should verify that the specific I/O module connected to the 1492-IFM40F-FS-2 carries the required SIL certification, and that the overall loop design — including field instruments and final elements — meets the target Safety Integrity Level as defined in IEC 61511.
