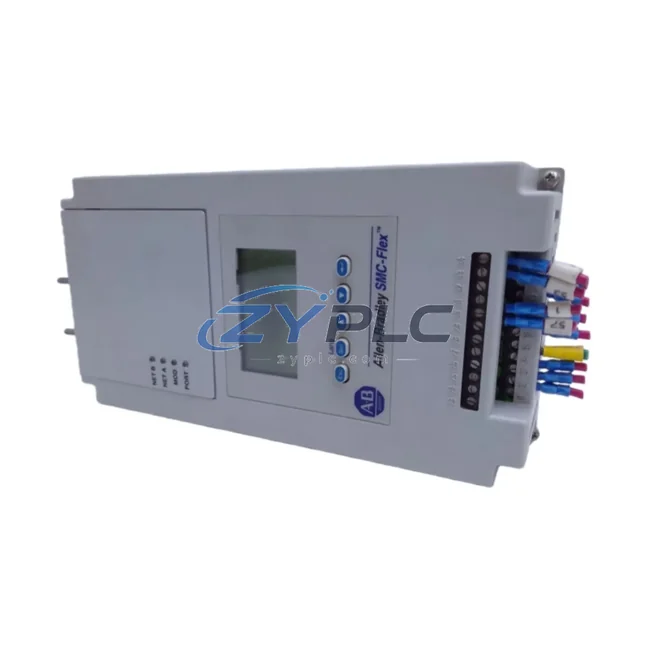

Allen-Bradley 150-FS1FX Soft Starter for SMC-Flex

Allen-Bradley 150-FS1FX Soft Starter for SMC-Flex

The Allen-Bradley 150-FS1FX is a dedicated control module within the SMC-Flex soft starter platform, engineered to deliver precise motor starting and stopping performance across demanding industrial automation environments. Rather than functioning as a standalone device, the 150-FS1FX is designed to operate as an integral node within a layered control system architecture — coordinating seamlessly between the control layer, I/O layer, power distribution layer, and field execution layer to ensure consistent, reliable motor management across the entire production system.

In modern industrial facilities — whether in automotive manufacturing, petrochemical processing, water treatment, mining operations, or heavy metallurgical plants — motor control is not an isolated function. It is a critical subsystem that must communicate upward to the PLC or DCS controller, respond to I/O signals from field sensors and safety interlocks, and coordinate with upstream power distribution and downstream mechanical actuators. The 150-FS1FX fulfills this role with precision, providing the SMC-Flex platform with the control intelligence needed to manage motor acceleration profiles, current limiting, and fault diagnostics within a unified system context.

When integrated into a Rockwell Automation ControlLogix or CompactLogix architecture, the 150-FS1FX communicates via DeviceNet or hardwired I/O connections, enabling the host PLC — such as a 1756-L73 or 1769-L33ER processor — to monitor motor status, issue start/stop commands, and log fault events in real time. This tight integration with the control layer eliminates the need for standalone motor protection relays and reduces panel wiring complexity, contributing to a more maintainable and diagnostically transparent control cabinet design.

Product Specification Table

System Compatibility Notes

The 150-FS1FX achieves its highest value when deployed as part of a coordinated, multi-layer control architecture. At the control layer, a 1756-L73 ControlLogix processor or 1769-L33ER CompactLogix controller serves as the system brain, issuing motor start/stop commands and monitoring feedback from the SMC-Flex module. The 150-FS1FX receives these commands and translates them into precise voltage ramp profiles that protect the motor and connected mechanical load during acceleration and deceleration cycles.

At the I/O layer, 1756-IB16 digital input modules and 1756-OB16E digital output modules provide the signal interface between field devices — pressure switches, flow sensors, thermal overloads — and the ControlLogix backplane. The 150-FS1FX integrates with these I/O signals to enforce safety interlocks and process permissives before allowing motor energization, ensuring that the soft starter only operates within validated process conditions.

At the network layer, a 1756-DNB DeviceNet Bridge module enables the 150-FS1FX to participate in the plant-wide DeviceNet network, allowing centralized SCADA systems and historian platforms to collect motor performance data — including current draw, fault codes, and operating hours — without additional field wiring. This network transparency is essential for predictive maintenance programs and maintenance planning initiatives in large-scale facilities.

At the power layer, the SMC-Flex system — including the 150-FS1FX control module — is typically installed within a Motor Control Center (MCC) alongside 1494V-DS fusible disconnect switches and 140M motor protection circuit breakers, which provide upstream overcurrent protection and safe isolation capability for maintenance personnel. The coordinated design of these power layer components ensures that the soft starter operates within a fully protected electrical environment.

At the human-machine interface layer, a 2711P-T10C21D8S PanelView Plus 7 terminal provides operators with real-time visibility into motor status, fault history, and operating parameters sourced directly from the ControlLogix controller. This HMI integration closes the loop between the field execution layer and the operator, enabling rapid fault response and reducing unplanned downtime. Additionally, 1492-CABLE series terminal block wiring systems and 700-HLT relay modules are commonly used in the same control cabinet to manage auxiliary control circuits and signal conditioning alongside the 150-FS1FX installation.

Industrial Application Notes

The 150-FS1FX is deployed across a wide range of industrial sectors where controlled motor starting is critical to process integrity and equipment longevity. In water and wastewater treatment facilities, the module manages pump motor starting sequences to prevent water hammer and pressure surge events in distribution pipelines. The soft start capability reduces mechanical stress on pump impellers and shaft couplings, extending equipment service life and reducing maintenance intervals.

In petrochemical and refinery applications, the 150-FS1FX controls compressor and blower motor starting within hazardous area control panels, where precise current limiting during startup is essential to avoid voltage sag events that could affect adjacent process equipment. The module’s integration with the plant DCS via DeviceNet ensures that motor start events are logged and correlated with process variables for safety and compliance reporting.

In mining and mineral processing operations, conveyor belt drive motors, crusher drives, and slurry pump motors benefit from the controlled acceleration profiles provided by the SMC-Flex platform. The 150-FS1FX enables the control system to implement load-dependent starting ramps, reducing belt slip and mechanical shock during heavy-load startup conditions. This capability is particularly valuable in high-tonnage operations where motor failures result in significant production losses.

In packaging and discrete manufacturing lines, the 150-FS1FX supports multi-motor coordination within a single ControlLogix program, allowing the PLC to sequence motor starts across multiple conveyor zones, indexing tables, and transfer mechanisms in a precisely timed manner. This coordinated motor management improves line throughput and reduces the risk of product jams caused by asynchronous motor acceleration.

In metallurgical and steel mill environments, where large induction motors drive rolling mills, cooling fans, and hydraulic pump stations, the 150-FS1FX provides the current-limiting capability needed to comply with utility demand charge tariffs and avoid peak demand penalties. The module’s fault diagnostic capabilities also support the plant’s predictive maintenance program by providing early warning of motor insulation degradation and bearing wear through current signature analysis.

Product Compatibility FAQ

Q1: Is the 150-FS1FX compatible with both ControlLogix and CompactLogix control platforms, and what communication configuration is required?
Yes. The 150-FS1FX is compatible with the full range of Allen-Bradley Logix5000 controllers, including ControlLogix (1756 series) and CompactLogix (1769 series) platforms. When using DeviceNet communication, a 1756-DNB or 1769-SDN scanner module must be installed in the controller backplane and configured using RSNetWorx for DeviceNet software. The SMC-Flex module is then mapped as a DeviceNet node, and its I/O data is accessible within the Logix5000 program as standard input/output tags. For hardwired control configurations, standard 24VDC digital I/O wiring to the controller’s I/O modules is sufficient.

Q2: What redundancy provisions are available when using the 150-FS1FX in critical process applications?
For critical motor control applications requiring high availability, the SMC-Flex platform supports bypass contactor configurations that allow the motor to continue operating on full-voltage direct-on-line (DOL) starting in the event of a soft starter fault. The 150-FS1FX provides fault output relay contacts that can be wired to the bypass contactor control circuit, enabling automatic or operator-initiated bypass. At the controller level, ControlLogix redundancy systems using 1756-RM2 redundancy modules provide CPU-level failover, ensuring that motor control logic continues to execute without interruption during controller switchover events.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for installation and commissioning?
All 150-FS1FX units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. The warranty covers the control module assembly and its internal components. Prior to shipment, each unit undergoes functional testing to verify control circuit integrity and communication capability. For installation and commissioning support, our technical team provides guidance on DeviceNet node addressing, RSNetWorx configuration, and Logix5000 tag mapping. Replacement units are dispatched promptly in the event of a warranty claim, minimizing system downtime. Contact our team at plc.sales@zyplc.com or +86 19859288691 for pre-sales technical consultation and post-sales support.
