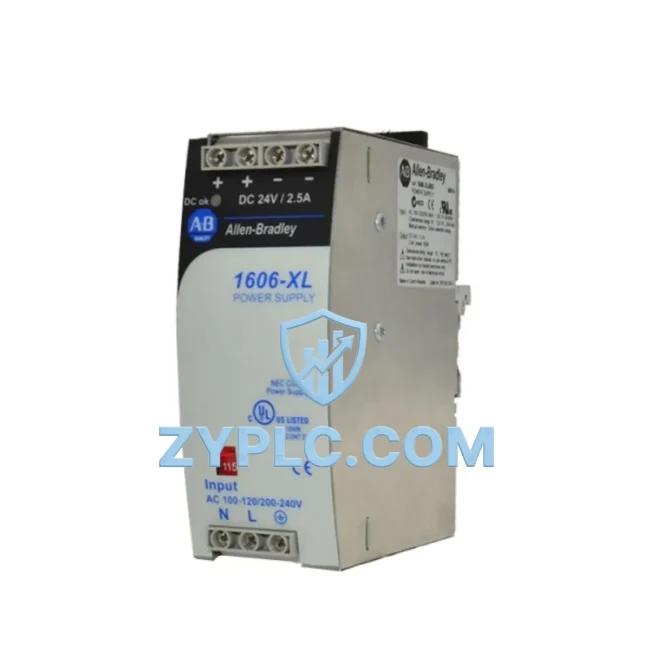

Allen-Bradley 1606-XL60D Industrial Power Supply for FLEX Series Systems

Allen-Bradley 1606-XL60D: Industrial Data Link Power for FLEX Series Smart Factory Systems

In modern industrial automation environments, stable and reliable DC power is not merely a utility — it is the backbone of every data link in the smart factory. The Allen-Bradley 1606-XL60D is a 60W, 24VDC FLEX Series industrial power supply engineered to sustain uninterrupted power delivery across the full spectrum of field devices, communication modules, and control infrastructure. From signal acquisition at the sensor layer to real-time data aggregation at the SCADA level, the 1606-XL60D ensures that every node in the industrial network remains energized, synchronized, and communicating without interruption.

Industrial connectivity depends on more than protocol compatibility — it demands power quality. Voltage fluctuations, transient spikes, and load imbalances can corrupt fieldbus communications, trigger false alarms in HMI panels, and cause data dropouts in remote I/O modules. The 1606-XL60D addresses these challenges with wide-range AC input (85–264VAC), tight output regulation (±1%), and built-in overload and short-circuit protection, making it a trusted power source for mission-critical automation networks.

Network Communication Table

Connected Automation Data Flow

The 1606-XL60D sits at the heart of a layered automation architecture, providing the stable 24VDC rail that powers every communicating device in the network chain. At the field level, Allen-Bradley 1734 POINT I/O modules rely on a clean 24VDC supply to accurately digitize analog signals from pressure transmitters, flow meters, and temperature sensors before forwarding structured data packets upstream via EtherNet/IP. Any power instability at this layer directly translates to signal noise and communication retries — issues the 1606-XL60D is specifically designed to eliminate.

Moving up the data chain, Allen-Bradley CompactLogix L3x series PLCs and MicroLogix 1400 controllers depend on regulated 24VDC for their communication backplanes. These controllers aggregate field data and execute ladder logic before transmitting process variables to FactoryTalk View SE SCADA servers over EtherNet/IP. The 1606-XL60D’s tight output regulation ensures that the PLC’s communication processor maintains stable clock timing, preventing packet loss on high-speed EtherNet/IP networks.

In distributed control architectures, Allen-Bradley 1756 ControlLogix chassis with 1756-EN2T EtherNet/IP communication modules bridge the gap between the plant floor and enterprise MES systems. These modules require a stable 24VDC auxiliary supply for their network interface cards — a role the 1606-XL60D fulfills with its low ripple output and active power factor correction. Simultaneously, Rockwell Automation PowerFlex 525 variable frequency drives use 24VDC control power for their embedded EtherNet/IP adapters, enabling real-time speed feedback and fault diagnostics to be streamed to the SCADA layer without interruption.

At the HMI layer, Allen-Bradley PanelView Plus 7 terminals powered by the 1606-XL60D display live process data, alarm states, and trend graphs sourced directly from the ControlLogix PLC via EtherNet/IP. The display’s communication module requires stable DC power to maintain its TCP/IP stack and prevent screen freezes during peak network traffic. For remote sites, Moxa MGate MB3480 Modbus-to-EtherNet/IP gateways convert legacy Modbus RTU signals from older field instruments into EtherNet/IP packets, with the 1606-XL60D supplying the gateway’s 24VDC operating power. This integration allows legacy sensors and actuators to participate in modern SCADA data flows without hardware replacement.

Edge computing nodes — such as Cisco IE-4000 industrial Ethernet switches — rely on 24VDC PoE injectors powered by the 1606-XL60D to extend network connectivity to remote I/O panels and field junction boxes. These switches aggregate EtherNet/IP traffic from multiple device clusters and forward it to the plant backbone, where FactoryTalk Historian servers log time-stamped process data for OEE analysis and predictive maintenance algorithms.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, legacy controllers, and modern SCADA systems operate in disconnected silos, unable to share process data in real time. The 1606-XL60D directly addresses this challenge by providing the reliable 24VDC infrastructure that enables protocol conversion gateways, communication bridges, and network switches to operate continuously without power-related dropouts.

Protocol Unification: Many industrial sites run a mix of DeviceNet, ControlNet, Modbus RTU, and EtherNet/IP devices. Protocol conversion gateways — powered by the 1606-XL60D — translate between these protocols, allowing a single SCADA system to monitor all devices regardless of their native communication standard. This eliminates the need for separate monitoring systems for each protocol layer.

Remote Monitoring and Diagnostics: With the 1606-XL60D powering remote I/O panels and communication modules at distant field locations, operators can access real-time device status, alarm conditions, and diagnostic data from a central control room. Remote firmware updates, parameter changes, and fault resets can be executed over EtherNet/IP without dispatching field technicians, reducing mean time to repair (MTTR) and improving overall plant availability.

Production Line Transparency: By ensuring that every sensor, actuator, and communication module remains powered and online, the 1606-XL60D enables continuous data collection across the entire production line. This data feeds OEE dashboards, quality management systems, and predictive maintenance platforms, giving plant managers full visibility into throughput, downtime causes, and equipment health trends.

System Scalability: The 1606-XL60D’s DIN rail form factor and universal AC input make it straightforward to add new devices to an existing network without redesigning the power distribution architecture. Additional POINT I/O modules, communication gateways, or HMI panels can be integrated into the 24VDC bus with minimal engineering effort, supporting phased smart factory expansion projects.

Pre-Shipment Testing and 12-Month Warranty: Every 1606-XL60D unit supplied by ZYPLC undergoes full functional testing before dispatch, verifying output voltage accuracy, protection circuit operation, and communication power delivery under load. A 12-month warranty covers all units, with technical support available for integration and commissioning queries.

Industrial Connectivity FAQ

Q1: Does the 1606-XL60D introduce any communication latency in EtherNet/IP networks?
The 1606-XL60D is a DC power supply and does not process or route network data — it provides the stable 24VDC rail that powered devices use to operate their communication stacks. Its tight output regulation (±1%) and low ripple ensure that powered EtherNet/IP modules, PLCs, and gateways maintain stable clock timing, which minimizes communication retries and contributes to low-latency network performance.

Q2: Is the 1606-XL60D compatible with both EtherNet/IP and Modbus TCP devices on the same 24VDC bus?
Yes. The 1606-XL60D supplies 24VDC to any device that operates within its 60W output capacity, regardless of the communication protocol used by that device. EtherNet/IP modules, Modbus TCP gateways, DeviceNet adapters, and ControlNet bridges can all be powered simultaneously from the same 1606-XL60D output bus, provided total load does not exceed 60W (2.5A at 24VDC).

Q3: How does the 1606-XL60D support network stability in high-vibration or harsh industrial environments?
The 1606-XL60D is rated for operation from -25°C to +70°C and carries ATEX Class I Division 2 certification for use in potentially explosive atmospheres. Its DIN rail mounting provides mechanical stability in high-vibration environments such as machine tool panels and mobile equipment enclosures. The wide-range AC input (85–264VAC) ensures stable 24VDC output even when plant supply voltage fluctuates, preventing communication dropouts caused by under-voltage conditions.

Q4: What warranty and testing does ZYPLC provide for the 1606-XL60D?
All 1606-XL60D units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures. Each unit is tested before shipment to verify output voltage, load regulation, and protection circuit operation. Expedited DHL/FedEx shipping is available globally, with full export documentation provided for international orders. For volume pricing, lead time, and technical support, contact ZYPLC at [email protected] or +86 19859288691.
