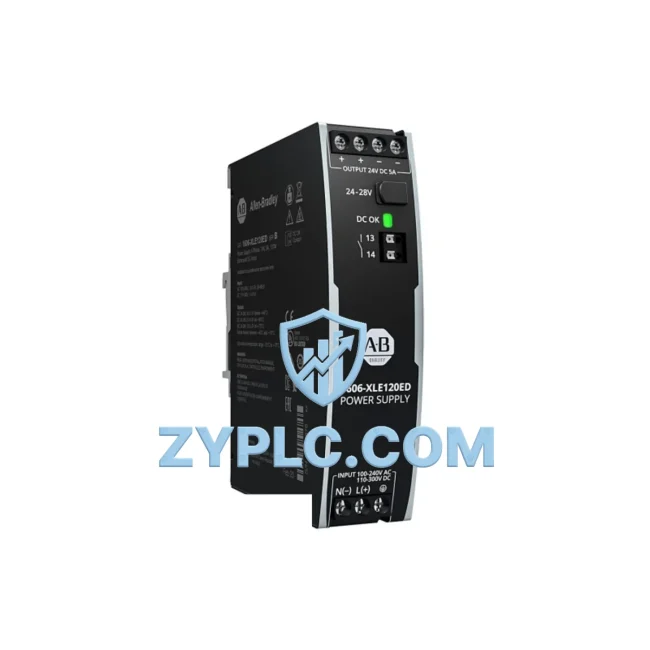

Allen-Bradley 1606-XLE120E Power Supply

Allen-Bradley 1606-XLE120E Power Supply for 1606 Automation

The Allen-Bradley 1606-XLE120E is a high-efficiency 120W DIN-rail power supply engineered for demanding industrial automation environments where energy performance, uptime reliability, and production line optimization are non-negotiable. As part of Rockwell Automation’s 1606 XLE series, this unit delivers tightly regulated 24VDC output with an efficiency rating exceeding 91%, directly reducing heat dissipation, lowering panel cooling loads, and cutting auxiliary energy consumption across the control cabinet. For plant engineers focused on reducing total energy cost per production cycle, the 1606-XLE120E is a foundational component in any efficiency-first automation architecture.

Product Specification Table

System Compatibility and Application

In a fully integrated Rockwell Automation environment, the 1606-XLE120E serves as the stable, low-loss power backbone that enables every downstream component to operate at its rated efficiency point. When paired with a PowerFlex 525 AC drive, the clean 24VDC bus supplied by the 1606-XLE120E ensures the drive’s control circuitry receives ripple-free power, which is critical for accurate motor speed regulation and energy-proportional torque control. Unstable control voltage is a leading cause of drive faults and unnecessary motor restarts — each of which spikes energy consumption and accelerates mechanical wear.

For motion-critical applications, the Kinetix 5500 servo drive relies on a stable auxiliary 24VDC supply for its safety and feedback circuits. The 1606-XLE120E’s active power factor correction (PFC >0.95) minimizes reactive power draw from the facility grid, reducing apparent power demand charges — a measurable cost saving in facilities running multiple servo axes simultaneously. Alongside the Kinetix system, MP-Series servo motors benefit from consistent encoder supply voltage, preserving positioning accuracy and reducing thermal losses from voltage fluctuation.

At the I/O layer, POINT I/O 1734 modules and 1756 ControlLogix I/O cards draw their logic power from the 24VDC rail. The 1606-XLE120E’s tight output regulation (±1%) ensures that digital input thresholds remain stable across temperature extremes, preventing false triggering events that can disrupt production line rhythm and cause unplanned micro-stoppages. These micro-stoppages, though individually brief, accumulate into significant OEE losses over a production shift.

For condition monitoring and power quality analysis, the PowerMonitor 5000 can be integrated upstream of the control panel to measure real-time kWh consumption, power factor, and harmonic distortion. When the 1606-XLE120E’s high PFC is combined with PowerMonitor 5000 data logging, plant engineers gain actionable visibility into which production cells are consuming disproportionate energy — enabling targeted optimization rather than blanket load reduction. This data feeds directly into FactoryTalk Energy Manager dashboards, where energy KPIs can be tracked against production output targets.

Communication integrity is equally important to energy efficiency. The 1783-US8T Stratix 2000 unmanaged switch provides the EtherNet/IP backbone that connects the ControlLogix controller, PowerFlex drives, and HMI terminals. A stable 24VDC supply from the 1606-XLE120E ensures the switch and connected devices maintain continuous network communication, eliminating the packet loss and reconnection cycles that can cause drive ramp-up events and associated energy spikes. For facilities using PanelView Plus 7 HMI terminals, the 1606-XLE120E provides the auxiliary power needed for display backlighting and touch interface logic, ensuring operators have real-time visibility into drive status, motor load, and alarm conditions without relying on a separate power rail.

Maintenance and Replacement Notes

In automotive body welding lines, the 1606-XLE120E is commonly deployed in robot controller cabinets alongside CompactLogix L33ER controllers to power safety relay modules, I/O expansion racks, and fieldbus communication cards. The high efficiency of the XLE series means that even in cabinets with 20+ I/O modules drawing continuous logic power, the thermal load on the enclosure remains manageable — reducing the duty cycle of cabinet cooling fans and extending their service life. This directly lowers maintenance labor costs and reduces the risk of thermal-related control faults during peak production periods.

In food and beverage packaging lines, where washdown environments demand sealed enclosures, the 1606-XLE120E’s wide input voltage range (85–264VAC) allows it to operate reliably across facility power quality variations without requiring a separate line conditioner. This eliminates an additional power conversion stage, reducing total system losses. When integrated with PowerFlex 40 drives controlling conveyor motors, the stable 24VDC bus ensures that drive enable signals and speed reference inputs remain noise-free, allowing the conveyor to maintain precise line speed and minimize product gapping errors that lead to packaging waste.

For predictive maintenance programs, the 1606-XLE120E’s built-in DC OK relay output can be wired to a 1756-IB16 digital input module to provide real-time power supply health status to the ControlLogix controller. If output voltage drops below threshold — indicating aging capacitors or excessive load — the controller can trigger a maintenance alert before a complete power supply failure occurs. This predictive signal, combined with runtime hour tracking in FactoryTalk Historian, enables maintenance teams to schedule PSU replacements during planned downtime windows rather than responding to unplanned line stoppages, which typically cost 5–10× more in lost production value than the replacement part itself.

All units supplied by ZYPLC are sourced from verified distribution channels, undergo pre-shipment functional testing including output voltage verification, load regulation testing, and DC OK relay confirmation, and are backed by a 12-month warranty. Stock is maintained for rapid dispatch to minimize procurement lead times for MRO and project requirements.

Product Sourcing FAQ

Q1: How much energy can the 1606-XLE120E save compared to a standard industrial power supply?
The 1606-XLE120E achieves >91% efficiency at full load, compared to 80–85% for conventional industrial PSUs. In a 120W application running 8,000 hours per year, this efficiency difference translates to approximately 14–26 kWh of saved energy annually per unit — with proportionally greater savings in multi-PSU panel configurations.

Q2: Is the 1606-XLE120E compatible with existing Allen-Bradley ControlLogix and CompactLogix systems?
Yes. The 1606-XLE120E is fully compatible with all Allen-Bradley ControlLogix (1756 series), CompactLogix (1769 series), and MicroLogix platforms. Its 24VDC output meets the logic power requirements of 1756 I/O modules, 1734 POINT I/O, PowerFlex drive control circuits, and PanelView HMI terminals without any additional conditioning.

Q3: Can the 1606-XLE120E replace an older 1606-XLP or 1606-XLS series power supply?
In most cases, yes. The XLE series is designed as a higher-efficiency successor to the XLP and XLS families, sharing the same DIN rail footprint and output voltage range. Before replacement, verify the load current requirements of your application against the 1606-XLE120E’s 5A rated output to ensure adequate headroom. ZYPLC’s technical team can assist with compatibility confirmation prior to order.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 1606-XLE120E shipped by ZYPLC undergoes pre-shipment testing including output voltage accuracy verification, load regulation testing under rated current, and DC OK relay output confirmation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed directly through ZYPLC with replacement or repair turnaround coordinated to minimize your production impact.
