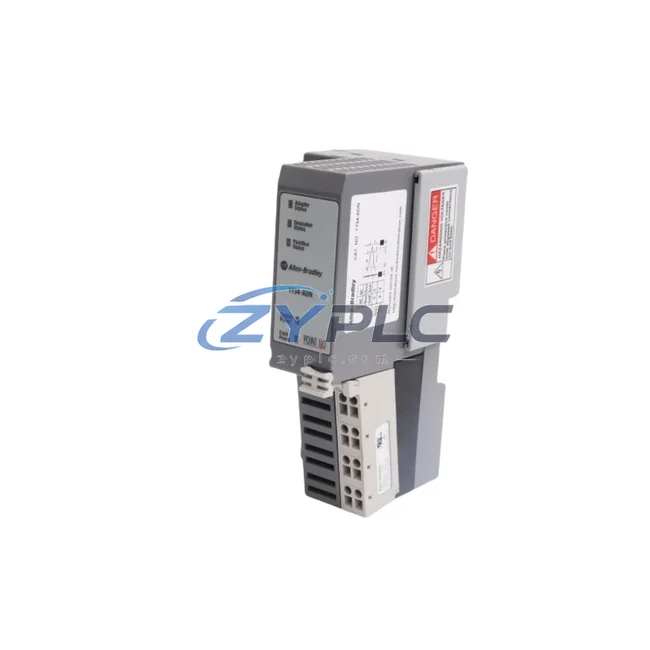

Allen-Bradley 1734-ADN DeviceNet Adapter

Allen-Bradley 1734-ADN DeviceNet Adapter: Replacement and Sourcing Information and Production Line Optimization

The Allen-Bradley 1734-ADN is a high-performance DeviceNet Adapter Module designed for the POINT I/O platform, enabling industrial facilities to achieve stable operating performance while maximizing equipment utilization across complex automation architectures. By bridging the DeviceNet fieldbus network with distributed I/O nodes, the 1734-ADN plays a central role in how modern factories collect energy data, execute control commands, regulate drive output, and respond to real-time system feedback — all within a single, cohesive automation ecosystem.

In energy-intensive manufacturing environments, the ability to precisely monitor and control every node on the network directly translates into lower utility costs, reduced idle-state power draw, and fewer unplanned shutdowns. The 1734-ADN makes this possible by providing a reliable, low-latency communication bridge between the DeviceNet master controller and field-level I/O devices, ensuring that energy-relevant signals — motor run/stop commands, drive speed references, sensor feedback — are transmitted with minimal delay and maximum integrity.

Product Specification Table

System Compatibility and Application

The 1734-ADN operates as the communication gateway within a layered automation architecture where energy efficiency is engineered at every level. At the controller layer, a ControlLogix L7x or CompactLogix L3x PLC executes the maintenance planning logic — scheduling motor starts, coordinating drive ramp profiles, and enforcing idle-state power-down sequences. The 1734-ADN translates these high-level commands into DeviceNet messages that reach field devices in real time.

On the drive side, PowerFlex 525 and PowerFlex 755 variable frequency drives (VFDs) receive speed reference and enable signals through the DeviceNet network. Rather than running motors at fixed full speed, the VFDs modulate output frequency based on actual load demand — a strategy that can help restore stable operation when a compatible replacement is required. The 1734-ADN ensures these speed commands are delivered with the deterministic timing required for smooth, energy-optimal acceleration and deceleration ramps.

For servo-driven axes requiring precise positioning with minimal unplanned downtime, the Kinetix 5500 servo drive integrates into the same Rockwell control platform. While the Kinetix 5500 communicates over EtherNet/IP rather than DeviceNet, the 1734-ADN’s role in managing the surrounding I/O infrastructure — limit switches, proximity sensors, safety interlocks — ensures that servo motion is only triggered when all enabling conditions are confirmed, eliminating wasted motion cycles.

At the I/O layer, 1734-IB8 digital input modules and 1734-OB8 digital output modules mounted on the same POINT I/O rail as the 1734-ADN provide the physical interface to field sensors and actuators. Energy-relevant signals — motor thermal overload contacts, current transformer outputs, flow switch states — are captured by these modules and made available to the PLC for real-time condition monitoring and protective shutdown logic.

For analog energy measurement, 1734-IE4C current input modules can be configured to read 4–20 mA signals from inline power transducers or current transformers, giving the control system a continuous view of actual power draw at the machine level. This data feeds into energy dashboards built on FactoryTalk View SE HMI software, where operators can visualize consumption trends, identify energy anomalies, and benchmark performance against production targets.

Network integrity is maintained through the 1788-DN2DN DeviceNet bridge or a 1756-DNB DeviceNet Scanner module in the ControlLogix chassis, which manages the master-slave polling cycle across all 1734-ADN nodes on the network. Proper configuration of the Expected Packet Rate (EPR) for each node — achievable through RSNetWorx for DeviceNet — ensures that I/O data is refreshed at the minimum rate necessary for control stability, avoiding unnecessary bus traffic that would increase both latency and power overhead in the communication infrastructure.

Maintenance and Replacement Notes

In a typical automotive body shop or food and beverage packaging line, dozens of conveyor segments, pneumatic actuators, and motor-driven transfer units operate simultaneously. Without intelligent I/O management, many of these devices remain energized even during production pauses, shift changes, or upstream bottlenecks. The 1734-ADN enables the PLC to implement zone-based power management: when a conveyor segment has no product detected by its upstream photoeye (wired to a 1734-IB8 input module), the PLC can command the corresponding drive to enter sleep mode or reduce to minimum speed, cutting operating load in that zone by up to 60% during idle periods.

Predictive maintenance is another dimension where the 1734-ADN contributes to maintenance planning. By continuously monitoring motor current signatures through analog input modules on the POINT I/O rail, the control system can detect early signs of bearing wear, winding degradation, or mechanical misalignment — conditions that cause motors to draw abnormal load and operate below their efficiency curve. Catching these faults early, before they cause unplanned downtime, preserves both energy efficiency and production throughput.

Every 1734-ADN unit supplied by ZYPLC undergoes functional testing prior to shipment, verifying DeviceNet communication establishment, I/O module recognition, and network address configuration. This pre-shipment validation process ensures that the adapter integrates into your production environment without commissioning delays, protecting your planned production schedule and avoiding the unplanned downtime associated with extended startup and debugging periods. All units are backed by a warranty terms confirmed during quotation, with availability subject to RFQ confirmation for shipment arranged after confirmation to support urgent maintenance and replacement requirements.

Product Sourcing FAQ

Q1: How does the 1734-ADN contribute to measurable operational stability on the production floor?
The 1734-ADN enables demand-driven I/O control by giving the PLC real-time visibility into field device states. This allows the controller to implement operational-efficiency strategies such as motor sleep modes during idle periods, VFD speed reduction under partial load, and zone-based power sequencing — all of which reduce unplanned downtime risk without impacting production output.

Q2: Is the 1734-ADN compatible with my existing ControlLogix or CompactLogix system?
Yes. The 1734-ADN is fully compatible with Allen-Bradley ControlLogix and CompactLogix platforms using a 1756-DNB or equivalent DeviceNet Scanner module. Configuration is performed through RSNetWorx for DeviceNet and RSLogix 5000 / Studio 5000, using standard EDS files available from Rockwell Automation. No additional hardware adapters are required for integration into an existing DeviceNet network.

Q3: Can the 1734-ADN replace a faulty adapter in an existing POINT I/O installation without full system reconfiguration?
In most cases, yes. The 1734-ADN can be swapped into an existing POINT I/O rail as a direct replacement. The DeviceNet node address is set via rotary switches on the module, and the I/O module configuration is stored in the scanner’s scanlist. After physical replacement, a brief online configuration verification in RSNetWorx is recommended to confirm that the new adapter has correctly inherited the node parameters and that all I/O modules are recognized.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 1734-ADN unit is tested for DeviceNet communication functionality, I/O module enumeration, and physical connector integrity before dispatch. The warranty terms confirmed during quotation covers hardware defects and communication failures under normal operating conditions. ZYPLC maintains inventory stock of the 1734-ADN to support rapid replacement needs, minimizing production downtime in the event of a field failure.
