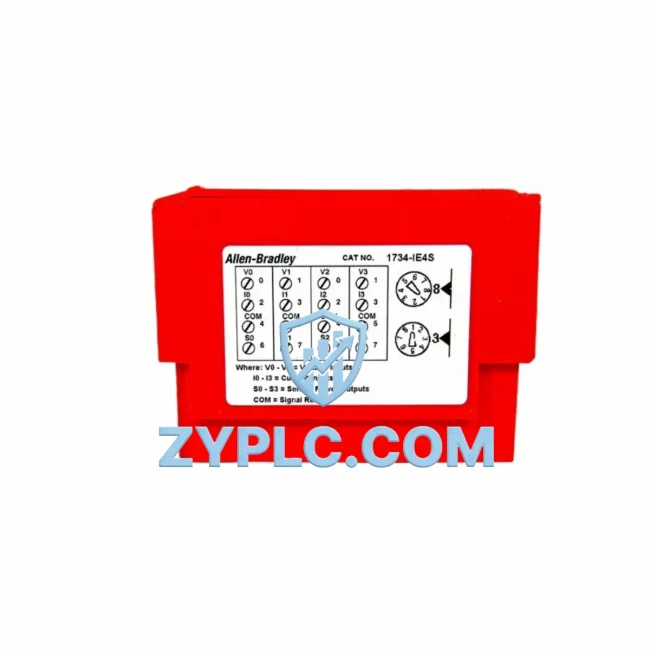

Allen-Bradley 1734-IE4S Industrial Network Interface for POINT I/O

Allen-Bradley 1734-IE4S: Industrial Data Link for POINT I/O Smart Factory Networks

The Allen-Bradley 1734-IE4S is a 4-channel analog input module engineered for the POINT I/O platform, delivering precise signal acquisition from field-level sensors and transmitters directly into Rockwell Automation control architectures. Designed for demanding industrial environments, the 1734-IE4S supports both 4–20 mA current and 0–10 V voltage input modes, enabling seamless integration with pressure transmitters, flow meters, temperature sensors, and level detectors across process and discrete manufacturing applications. With native EtherNet/IP communication, this module bridges the gap between physical field signals and digital plant-floor data networks, forming a critical node in the connected automation data chain.

In smart factory deployments, the 1734-IE4S operates as the front-end signal conditioner within a broader POINT I/O rack assembly. Field instruments feed analog signals into the module, which digitizes and transmits real-time process values over EtherNet/IP to a ControlLogix or CompactLogix PLC — such as the 1756-L85E or 1769-L33ERM — where ladder logic or function block programs execute control decisions in milliseconds. This tight integration eliminates signal latency and ensures that SCADA systems and HMI panels receive accurate, time-stamped data for operator visualization and alarm management.

Network Communication Table

Connected Automation Data Flow

The 1734-IE4S sits at the origin of the industrial data chain. Field-mounted sensors — including Endress+Hauser Promag flow transmitters, Rosemount 3051 pressure transmitters, and PT100 RTD temperature probes — output analog signals that are captured by the 1734-IE4S with 16-bit resolution. These digitized values are then passed through the POINT I/O backplane to a 1734-AENTR EtherNet/IP adapter, which routes the data over a managed industrial Ethernet switch — such as the Stratix 5700 or Cisco IE-3300 — to the plant-floor control layer.

At the control layer, a CompactLogix 1769-L33ERM or ControlLogix 1756-L85E PLC processes the incoming analog data, executes PID control loops, and generates output commands to downstream devices including PowerFlex 525 variable frequency drives for pump and fan speed regulation. Simultaneously, the PLC publishes real-time tag data to a FactoryTalk View SE HMI server, where operators monitor process trends, acknowledge alarms, and initiate manual overrides. The same data stream feeds into a FactoryTalk Historian or third-party SCADA platform — such as Ignition by Inductive Automation — enabling long-term trending, OEE calculation, and production reporting.

For remote I/O expansion in distributed plant layouts, the 1734-IE4S can be deployed alongside 1734-OB8 digital output modules and 1734-IB8 digital input modules within the same POINT I/O rack, sharing a single EtherNet/IP node address and reducing network infrastructure costs. Edge computing gateways — such as the Moxa UC-8112 or Rockwell Automation Logix Edge — can subscribe to the EtherNet/IP data stream for local analytics, anomaly detection, and cloud forwarding to MES or ERP systems, completing the IIoT data loop from sensor to enterprise.

Solving Data Isolation in Industrial Sites

Legacy manufacturing sites frequently suffer from data silos caused by incompatible field protocols, proprietary sensor interfaces, and isolated control islands. The 1734-IE4S directly addresses these challenges by standardizing analog signal acquisition onto the EtherNet/IP protocol stack, which is natively supported by Rockwell Automation PLCs, Kepware OPC-UA servers, and most modern SCADA platforms. This eliminates the need for standalone signal conditioners or protocol converters between the field and the control layer.

In multi-vendor environments where Siemens PROFIBUS or Modbus RTU devices coexist with Allen-Bradley EtherNet/IP infrastructure, the 1734-IE4S can be paired with a 1734-AENTR adapter and a protocol gateway — such as the ProSoft Technology MVI56E-MNET — to bridge legacy Modbus data into the EtherNet/IP domain, creating a unified data namespace accessible from a single SCADA or HMI interface. This architecture supports production line transparency, enabling plant managers to view real-time KPIs, energy consumption, and equipment health across all production zones from a centralized dashboard.

Remote diagnostics are supported through EtherNet/IP explicit messaging, allowing maintenance engineers to query module status, channel fault codes, and calibration data from any networked workstation without physical access to the control panel. This capability reduces mean time to repair (MTTR) and supports predictive maintenance programs by surfacing early-warning indicators — such as sensor drift or open-circuit faults — before they cause unplanned downtime. System expansion is straightforward: additional 1734-IE4S modules can be added to an existing POINT I/O rack without rewiring the EtherNet/IP network, supporting phased capacity growth aligned with production ramp-up schedules.

Every 1734-IE4S unit supplied by ZYPLC undergoes pre-shipment functional testing, including channel-by-channel analog input verification and EtherNet/IP communication validation, ensuring that modules arrive ready for immediate installation. Stock availability is maintained to support urgent MRO requirements and planned capital projects, with global logistics covering Asia-Pacific, Europe, and the Americas.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1734-IE4S over EtherNet/IP?
The 1734-IE4S supports configurable Requested Packet Interval (RPI) settings, typically ranging from 1 ms to 3200 ms. For most process control applications, an RPI of 10–20 ms provides a balance between network bandwidth utilization and control responsiveness. Real-time closed-loop control applications should configure RPI values at or below 10 ms, subject to overall network load.

Q2: Is the 1734-IE4S compatible with third-party SCADA and HMI systems?
Yes. The 1734-IE4S communicates via EtherNet/IP, which is supported by OPC-UA servers such as Kepware KEPServerEX and Matrikon OPC. These servers expose the module’s analog input tags to any OPC-compliant SCADA or HMI platform, including Wonderware System Platform, Ignition, and Siemens WinCC, enabling cross-vendor system integration without custom drivers.

Q3: How does the 1734-IE4S maintain network stability in high-noise industrial environments?
The module incorporates hardware filtering and software configurable notch filters (50/60 Hz) to suppress electromagnetic interference from variable frequency drives, welding equipment, and high-voltage switchgear. Deploying the module within a properly grounded POINT I/O rack and using shielded twisted-pair cabling for analog field wiring further minimizes noise-induced measurement errors.

Q4: What warranty and support does ZYPLC provide for the 1734-IE4S?
All 1734-IE4S modules supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing is performed on every unit. Technical support is available via +86 19859288691 or [email protected] for application engineering, compatibility verification, and post-sale troubleshooting.
