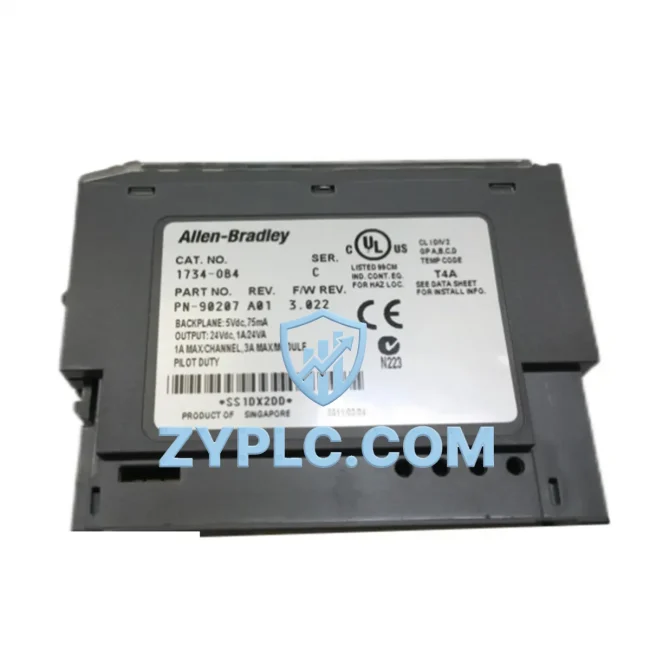

Allen-Bradley 1734-OB4 POINT I/O Digital Output Module

Allen-Bradley 1734-OB4 POINT I/O Digital Output Module: Industrial Data Link for Smart Factory Control Networks

The Allen-Bradley 1734-OB4 is a 4-channel 24VDC sourcing digital output module designed for the POINT I/O platform — one of the most widely deployed distributed I/O architectures in modern industrial automation. Built to operate within Rockwell Automation’s ControlLogix and CompactLogix control ecosystems, the 1734-OB4 serves as a critical last-mile actuator interface, converting digital control signals from PLCs and SCADA systems into precise field-level switching commands for solenoids, relays, indicator lights, and motor starters. In smart factory environments where data integrity, response latency, and network uptime are non-negotiable, the 1734-OB4 delivers the deterministic output performance that production lines demand.

At ZYPLC, we maintain ready inventory of the 1734-OB4 with full pre-shipment functional testing and a 12-month warranty, ensuring your procurement and maintenance teams can source this module with confidence — whether for new installations, system expansions, or emergency replacements.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 1734-OB4 sits at the edge of the control network, receiving discrete output commands from a ControlLogix L7x or CompactLogix L3x PLC over EtherNet/IP via a 1734-AENT or 1734-AENTR EtherNet/IP adapter. The adapter bridges the POINT I/O backplane to the plant’s industrial Ethernet infrastructure — often a managed ring topology built on Stratix 5700 or Stratix 5400 industrial Ethernet switches — ensuring deterministic, low-latency communication between the controller and field devices.

Signal flow begins at the sensor layer, where devices such as photoelectric sensors, proximity switches, and pressure transmitters feed real-time process data into digital and analog input modules — for example, the 1734-IB8 (8-channel 24VDC digital input) or the 1734-IE4C (4-channel analog current input) — mounted on the same POINT I/O rail. The ControlLogix PLC processes this input data through its ladder logic or function block programs and issues corresponding output commands to the 1734-OB4, which then energizes or de-energizes field actuators such as solenoid valves, conveyor motor starters, or warning beacon lights.

For applications requiring variable speed control, the 1734-OB4’s digital outputs can interface with PowerFlex 525 or PowerFlex 755 variable frequency drives (VFDs) via hardwired run/stop or direction commands, while the drive’s speed reference is managed separately over EtherNet/IP. This hybrid architecture — combining discrete I/O control with network-based parameter management — is a hallmark of Rockwell Automation’s Integrated Architecture, enabling seamless coordination between motion, process, and safety domains.

At the supervisory level, FactoryTalk View SE or third-party SCADA platforms such as Ignition by Inductive Automation connect to the ControlLogix controller via EtherNet/IP, reading tag values that reflect the real-time state of each 1734-OB4 output channel. Operators can monitor output status, acknowledge alarms triggered by output faults, and initiate remote diagnostic routines — all without physical access to the panel. For remote sites or multi-plant deployments, FactoryTalk Remote Access or a Secomea industrial VPN gateway can extend this visibility across WAN connections, enabling centralized maintenance teams to diagnose field-level issues from a central control room.

When the POINT I/O system is expanded — for example, adding a 1734-OW4 relay output module for higher-voltage switching or a 1734-OB8 for additional 24VDC channels — the 1734-AENT adapter automatically enumerates the new modules and updates the EtherNet/IP connection parameters, minimizing commissioning time. This plug-and-play scalability makes the 1734-OB4 a foundational building block for phased smart factory rollouts, where production lines are upgraded incrementally without disrupting existing operations.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of control data across incompatible protocols and isolated subsystems. Legacy installations often combine DeviceNet-based I/O, Modbus RTU field instruments, and proprietary HMI networks — creating data silos that prevent plant managers from achieving true production transparency. The POINT I/O platform, with the 1734-OB4 at its output layer, directly addresses this challenge by supporting multiple communication adapters that translate between EtherNet/IP, DeviceNet, and ControlNet — allowing a single POINT I/O rail to serve as a universal I/O node across heterogeneous network architectures.

For facilities transitioning from legacy DeviceNet installations to modern EtherNet/IP backbones, the 1734-OB4 can be redeployed without hardware changes — simply swapping the 1734-ADN DeviceNet adapter for a 1734-AENT EtherNet/IP adapter preserves the existing I/O wiring while upgrading the network layer. This protocol-agnostic flexibility dramatically reduces migration costs and downtime, making the 1734-OB4 a long-term asset rather than a single-generation investment.

Remote monitoring and diagnostics are further enhanced by the module’s built-in fault reporting. When an output channel experiences an overcurrent condition or load fault, the 1734-OB4 sets a fault bit in the controller’s I/O image table, which can trigger an alarm in the SCADA system, send an SMS or email notification via FactoryTalk Alarm and Events, and log the event to a historian database for root-cause analysis. This closed-loop fault management loop — from field device to control system to operator notification — eliminates the blind spots that cause unplanned downtime in conventional hardwired systems.

System scalability is equally straightforward: the POINT I/O platform supports up to 63 modules per adapter node, and multiple adapter nodes can be distributed across a production line, connected back to the main controller via a star or ring Ethernet topology. As production capacity grows, additional 1734-OB4 modules can be inserted into existing rails without rewiring the backplane, and the controller’s I/O configuration is updated through RSLogix 5000 or Studio 5000 Logix Designer with minimal engineering effort.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1734-OB4 support?
The 1734-OB4 itself is a pure I/O module and does not contain an onboard communication interface. Its network protocol is determined by the POINT I/O adapter installed on the same rail. Using a 1734-AENT or 1734-AENTR adapter enables EtherNet/IP communication; a 1734-ADN adapter enables DeviceNet; and a 1734-ACNR adapter enables ControlNet. This architecture allows the same 1734-OB4 module to operate across all three major Rockwell Automation network protocols without hardware modification.

Q2: How does the 1734-OB4 perform in high-speed production environments with strict latency requirements?
When paired with a 1734-AENT EtherNet/IP adapter and a ControlLogix PLC, the 1734-OB4 supports Requested Packet Intervals (RPI) as low as 1ms, enabling near-real-time output response for time-critical applications such as packaging line reject gates, press control, and conveyor sorting. Network latency is further minimized by deploying managed industrial Ethernet switches — such as the Stratix 5700 — with QoS prioritization for EtherNet/IP traffic.

Q3: Can the 1734-OB4 be integrated with third-party SCADA and HMI systems outside the Rockwell Automation ecosystem?
Yes. Because the 1734-OB4 communicates via EtherNet/IP — an open, IEC 61158-compliant industrial Ethernet protocol — it is compatible with any SCADA or HMI platform that supports EtherNet/IP or CIP (Common Industrial Protocol) drivers. This includes Ignition SCADA, Siemens WinCC OA, Wonderware System Platform, and GE iFIX, among others. For Modbus TCP or OPC UA integration, a protocol gateway such as the ProSoft Technology MVI56E-MNET or a Kepware OPC server can bridge the communication gap.

Q4: What warranty and quality assurance does ZYPLC provide for the 1734-OB4?
Every 1734-OB4 unit shipped by ZYPLC undergoes a full functional test prior to dispatch, verifying output channel switching, backplane communication, and fault reporting under simulated load conditions. All units are covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, ZYPLC provides advance replacement or repair service with global DHL/FedEx Express logistics support, minimizing production downtime for our customers.
