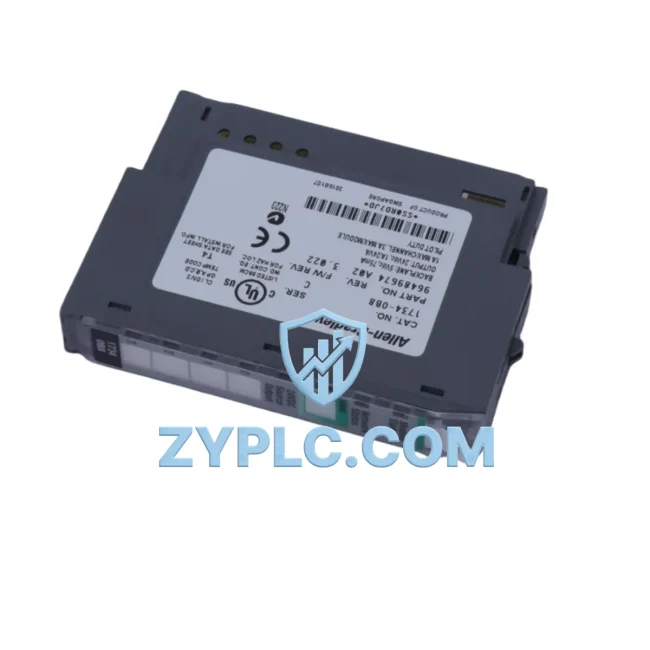

The Allen-Bradley 1734-OB8 is an 8-channel DC source digital output module engineered for the POINT I/O platform — one of Rockwell Automation’s most scalable and field-proven distributed I/O architectures. Designed to operate seamlessly within EtherNet/IP and DeviceNet communication environments, the 1734-OB8 serves as a critical node in the industrial data chain, bridging PLC control logic with real-world actuators, solenoids, motor starters, and field devices across the production floor.

In modern smart factory deployments, the 1734-OB8 is not simply an output module — it is an active participant in the plant-wide data flow. From signal acquisition at the sensor level to command execution at the actuator, every output state is tracked, logged, and made available to upstream SCADA and HMI systems in real time. This transparency enables operators to monitor production line status, detect faults early, and respond to alarms without physical intervention on the floor.

Network Communication Table

Connected Automation Data Flow

The 1734-OB8 operates at the execution layer of a multi-tier industrial network. In a typical smart factory topology, a 1734-AENTR EtherNet/IP Adapter connects the POINT I/O island — including the 1734-OB8 — directly to the plant Ethernet backbone, enabling real-time I/O data exchange with a ControlLogix L8x controller running Studio 5000 Logix Designer. The PLC’s output tags map directly to the 1734-OB8 channels, so every actuator command is executed within a single scan cycle.

Upstream, a FactoryTalk View SE HMI or FactoryTalk Historian server subscribes to the I/O data via the EtherNet/IP implicit messaging path, giving operators a live view of output states across all production cells. When a channel fault is detected — such as an overcurrent or open-load condition — the 1734-OB8 raises a diagnostic alarm that propagates through the 1734-AENTR adapter to the controller, which then triggers an alarm banner on the HMI and logs the event to the SCADA historian.

For sites running mixed-protocol architectures, a 1734-ADN DeviceNet Adapter can replace the EtherNet/IP adapter, allowing the same 1734-OB8 module to participate in a DeviceNet segment alongside PowerFlex 525 variable frequency drives, 1756-DNB DeviceNet Scanner modules, and third-party sensors. This flexibility makes the POINT I/O platform — and the 1734-OB8 specifically — a universal building block for both legacy modernization and greenfield smart factory projects.

At the edge, an industrial edge gateway (such as a Stratus EWon Flexy or Cisco IE3400) can aggregate I/O data from multiple POINT I/O islands and forward it to cloud-based MES or ERP platforms via MQTT or OPC-UA, completing the data chain from field device to enterprise system. Complementary modules such as the 1734-IB8 8-channel DC input module and 1734-IE4C analog current input module are commonly deployed alongside the 1734-OB8 to form a complete mixed I/O node, handling both sensor feedback and actuator control within a single compact POINT I/O assembly.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, PLCs, and enterprise systems operate in silos, unable to share real-time status information. The Allen-Bradley 1734-OB8, deployed within a properly configured POINT I/O network, directly addresses this problem at the hardware level.

By supporting EtherNet/IP implicit I/O messaging, the 1734-OB8 ensures that output states are continuously broadcast to the controller and, by extension, to any SCADA or HMI system connected to the same network. There is no polling delay, no manual data entry, and no communication gap between the field and the control room. Every output transition — whether triggered by a PLC ladder rung, a function block, or a remote operator command — is immediately visible across the entire automation hierarchy.

For facilities managing multiple production lines or geographically distributed sites, the 1734-OB8’s compatibility with EtherNet/IP enables remote diagnostics and parameter monitoring without requiring a technician to be physically present at the panel. Maintenance teams can use Studio 5000 Logix Designer or FactoryTalk AssetCentre to remotely inspect module health, review fault histories, and even force output states during commissioning — dramatically reducing mean time to repair (MTTR) and improving overall equipment effectiveness (OEE).

System expansion is equally straightforward. The POINT I/O platform supports hot-swappable modules, meaning the 1734-OB8 can be added to or removed from a running system without powering down the entire I/O island. This capability is essential for facilities that operate 24/7 and cannot tolerate planned downtime for hardware changes. Combined with the module’s compact DIN-rail form factor, the 1734-OB8 enables incremental capacity growth without redesigning the control cabinet.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1734-OB8 support?
The 1734-OB8 itself is a backplane module and communicates via the POINT I/O internal bus. Its network protocol — EtherNet/IP or DeviceNet — is determined by the adapter module used (e.g., 1734-AENTR for EtherNet/IP, 1734-ADN for DeviceNet). This makes the 1734-OB8 protocol-agnostic at the module level, allowing it to integrate into virtually any Rockwell Automation network architecture.

Q2: How does the 1734-OB8 support real-time SCADA and HMI integration?
When paired with an EtherNet/IP adapter, the 1734-OB8 participates in implicit I/O messaging, which delivers output state data to the controller every scan cycle (typically 1–10 ms). This data is immediately available to FactoryTalk View, Ignition SCADA, or any OPC-DA/UA client connected to the network, enabling real-time visualization and alarm management without additional configuration.

Q3: Can the 1734-OB8 be used in systems with mixed communication protocols?
Yes. The POINT I/O platform supports multiple adapter types, so the same 1734-OB8 module can be deployed in EtherNet/IP, DeviceNet, or ControlNet segments simply by changing the adapter. This makes it an ideal choice for facilities undergoing protocol migration or running hybrid network architectures across different production zones.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 1734-OB8?
Every Allen-Bradley 1734-OB8 supplied by ZYPLC is covered by a 12-month warranty and undergoes functional testing prior to shipment. Our quality control process verifies channel output integrity, backplane communication, and module identification to ensure the unit arrives ready for immediate installation. Fast global shipping via DHL/FedEx is available, with stock typically dispatched within 1–3 business days of order confirmation.
