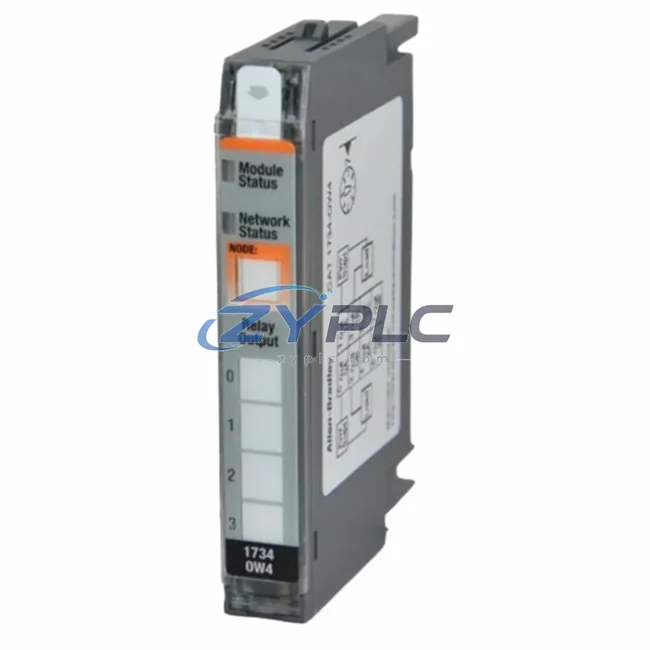

The Allen-Bradley 1734-OW4 is a 4-point relay output module within the Rockwell Automation Point I/O platform, engineered to deliver precise discrete output control in energy-conscious industrial automation environments. As manufacturing facilities face increasing pressure to reduce energy consumption and improve equipment utilization rates, the 1734-OW4 plays a critical role in the control execution layer — bridging PLC logic with field-level actuators, contactors, and motor starters while minimizing unnecessary switching losses and idle-state power draw.

Designed for seamless integration with Allen-Bradley ControlLogix and CompactLogix controllers, the 1734-OW4 operates within the Point I/O backplane architecture, enabling modular, distributed I/O expansion without the overhead of traditional rack-based systems. Its compact form factor reduces panel footprint and wiring complexity, directly contributing to lower installation energy costs and simplified maintenance cycles.

Product Specification Table

System Compatibility and Application

In a fully optimized production line, the 1734-OW4 does not operate in isolation — it functions as the output execution node within a broader industrial control architecture. At the controller level, an Allen-Bradley CompactLogix L33ER or ControlLogix L73 manages the scan cycle and issues output commands based on real-time process data, ensuring that relay switching events are purposeful and timed to minimize unnecessary actuator engagement.

Upstream of the 1734-OW4, a 1734-IB8 8-point DC input module captures field sensor signals — proximity switches, limit switches, and photoelectric sensors — feeding the controller with accurate machine state data. This closed-loop feedback ensures that the 1734-OW4 only energizes outputs when process conditions genuinely require it, eliminating the unplanned downtime associated with over-triggering or latched outputs in legacy hardwired systems.

For variable-speed drive applications, the 1734-OW4 relay outputs are commonly used to issue run/stop and direction commands to PowerFlex 525 or PowerFlex 755 variable frequency drives (VFDs). These drives regulate motor speed in proportion to actual load demand, dramatically reducing energy consumption compared to fixed-speed motor starters — particularly in pump, fan, and conveyor applications where load varies throughout the production cycle.

Power quality and condition monitoring are handled by integrating an Allen-Bradley PowerMonitor 5000 or a 1420 Power Monitor into the same EtherNet/IP network. These devices capture real-time kWh consumption, power factor, and harmonic distortion data, enabling the ControlLogix controller to make intelligent decisions about when to shed non-critical loads or adjust drive setpoints. The 1734-OW4 acts as the switching interface that physically executes these load-shedding commands.

For distributed I/O communication, the 1734-OW4 connects to the backplane via a 1734-AENT or 1734-AENTR EtherNet/IP adapter, which aggregates I/O data from multiple Point I/O modules and transmits it to the controller over a single network cable. This architecture eliminates the need for dedicated home-run wiring to each output device, reducing copper usage, installation labor, and the resistive energy losses inherent in long cable runs.

In safety-critical zones, the 1734-OW4 can be paired with a 1734-IB8S safety input module and a GuardLogix safety controller to implement energy-safe machine stop sequences. Rather than cutting power abruptly — which can cause mechanical stress and increased restart energy — the safety system uses the relay outputs to execute controlled deceleration sequences through the connected VFDs, protecting both equipment and energy budgets.

HMI visibility is provided through a PanelView Plus 7 terminal connected via EtherNet/IP, giving operators real-time insight into output states, relay cycle counts, and energy consumption trends. This transparency supports predictive maintenance scheduling — operators can identify relays approaching end-of-life based on cycle count data and replace them during planned downtime rather than reactive emergency shutdowns, which are far more energy-intensive due to unplanned restart sequences.

For facilities implementing a broader maintenance planning strategy, the 1734-OW4 integrates naturally with Rockwell Automation’s FactoryTalk Energy Manager software, which aggregates data from PowerMonitor devices, VFDs, and I/O modules to generate energy consumption reports, identify waste patterns, and recommend optimization actions. The relay output module’s role in this ecosystem is to provide the physical switching capability that translates software-level energy decisions into real-world load control actions.

Maintenance and Replacement Notes

Consider a mid-scale packaging line running three-shift operations. Without intelligent output control, motor starters remain energized during product changeovers, conveyor belts run at full speed regardless of upstream feed rates, and auxiliary equipment such as air compressors and cooling fans operate on fixed schedules rather than demand signals. The cumulative unplanned downtime in such a scenario can represent 15–25% of total facility power consumption.

By deploying the Allen-Bradley 1734-OW4 as part of a Point I/O distributed control architecture, the facility gains granular, software-controlled switching capability at every output node. The CompactLogix controller can implement time-based and event-based output control logic — automatically de-energizing non-critical loads during changeovers, staggering motor starts to reduce peak demand charges, and enabling PowerFlex VFDs to ramp down conveyor speeds during low-throughput periods.

Maintenance cost reduction is another measurable benefit. The 1734-OW4’s relay outputs provide galvanic isolation between the control circuit and the load circuit, protecting the PLC backplane from voltage spikes generated by inductive loads such as motor contactors and solenoid valves. This isolation extends the service life of both the I/O module and the connected field devices, reducing replacement frequency and the associated labor costs.

Predictive maintenance is further supported by monitoring relay coil cycle counts through the ControlLogix controller’s tag database. Maintenance teams can set threshold alerts in FactoryTalk View or the PanelView Plus 7 HMI, triggering work orders before relay failure occurs. This approach eliminates unplanned downtime — which, in a high-throughput production environment, can cost significantly more in lost production value than the operational stability themselves.

Every unit shipped from ZYPLC undergoes full functional testing prior to dispatch, including output switching verification under rated load conditions. Stock availability is maintained to support rapid deployment, and all 1734-OW4 modules are covered by a warranty terms confirmed during quotation, ensuring that your maintenance planning investment is protected from day one of installation.

Product Sourcing FAQ

Q1: How does the 1734-OW4 contribute to operational stability compared to traditional hardwired relay panels?
The 1734-OW4 enables software-controlled output switching, allowing the PLC to de-energize loads precisely when they are not needed — something hardwired relay panels cannot do without manual intervention. Combined with PowerFlex VFDs and a PowerMonitor energy meter on the same EtherNet/IP network, the system can implement demand-based load control that reduces idle-state energy consumption by 10–30% depending on the application.

Q2: Is the 1734-OW4 compatible with both ControlLogix and CompactLogix systems?
Yes. The 1734-OW4 is fully compatible with any controller that supports the Point I/O platform via a 1734-AENT or 1734-AENTR EtherNet/IP adapter, including ControlLogix L7x series, CompactLogix L3x series, and GuardLogix safety controllers. It can also be used with DeviceNet and PROFIBUS adapters in legacy installations.

Q3: What is the recommended replacement or upgrade path if I am currently using older 1734-series relay output modules?
The 1734-OW4 is a direct form-fit-function replacement for earlier 1734-series relay output modules. No backplane or adapter changes are required. If upgrading from a non-Point I/O system, ZYPLC recommends evaluating the full Point I/O architecture — including 1734-IB8 input modules and a 1734-AENTR redundant adapter — to maximize the energy and maintenance benefits of the migration.

Q4: What testing and warranty coverage does ZYPLC provide for the 1734-OW4?
Every 1734-OW4 unit supplied by ZYPLC is tested for output switching function, coil continuity, and isolation resistance before shipment. Units are supplied with a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping is available for urgent production line requirements.
