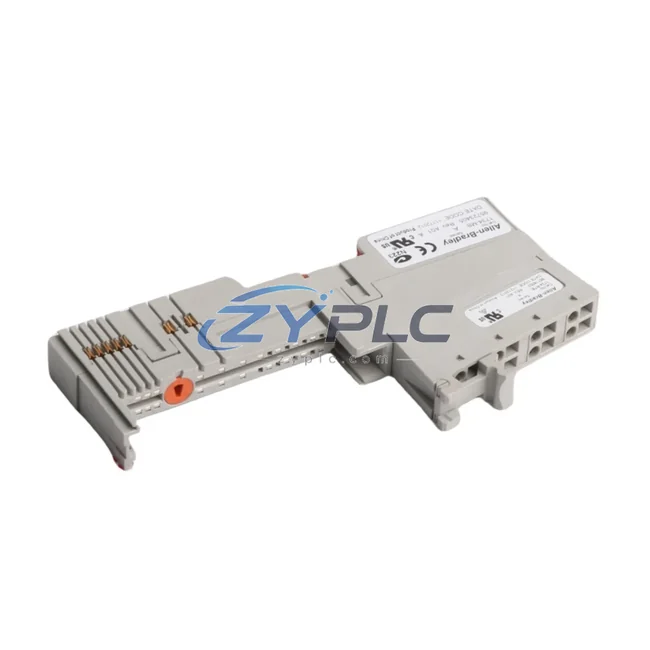

The Allen-Bradley 1734-TB is a compact terminal base module engineered for the 1734 POINT I/O platform, one of the most widely deployed distributed I/O architectures in modern industrial automation. Designed to minimize wiring complexity and reduce signal-path resistance, the 1734-TB plays a foundational role in industrial control architectures — enabling factories to cut unnecessary power draw at the field device level while maintaining precise, real-time I/O communication across the production line.

In high-density manufacturing environments, every wiring node represents a potential source of energy loss, signal degradation, or unplanned downtime. The 1734-TB addresses this by providing a mechanically stable, low-resistance termination point that supports hot-swap I/O module replacement without interrupting the control loop. This means maintenance teams can swap out a faulty 1734-IB8 digital input module or a 1734-OB8 digital output module without powering down the segment — directly reducing unplanned downtime from unnecessary system restarts and shortening mean time to repair (MTTR).

Product Specification Table

System Compatibility and Application

The 1734-TB does not operate in isolation — it is the physical backbone of a distributed I/O node that connects field devices to the control system. In a typical energy-optimized production cell, the 1734-TB hosts modules such as the 1734-IE4C analog input module for current-loop sensor signals, or the 1734-OE4C analog output module for precise actuator control. These modules feed real-time process data — including motor load, valve position, and conveyor speed — back to a CompactLogix L33ER or ControlLogix L85E controller via EtherNet/IP, enabling the PLC to make maintenance decisions at scan-cycle speed.

When paired with a PowerFlex 525 or PowerFlex 755 variable frequency drive (VFD), the control loop becomes fully closed: the PLC reads motor load data through the I/O node, adjusts drive output frequency to match actual demand, and eliminates the fixed-speed unplanned downtime that accounts for Actual operating results depend on the installed system, load profile, and commissioning parameters. The 1734-TB’s role in this architecture is to ensure that every I/O signal — from a 1734-IB8S safety input or a 1734-OB8S safety output — reaches the controller with minimal latency and zero wiring ambiguity.

For condition monitoring at the panel level, the 1734-TB node can be co-located with a 1408-EM3A-ENT energy meter or integrated alongside PowerMonitor 5000 units to provide granular per-zone power consumption data. This data feeds into Rockwell’s FactoryTalk View SE HMI, where operators can visualize energy trends, set consumption thresholds, and trigger automated load-shedding routines during peak demand periods — all without manual intervention.

Maintenance and Replacement Notes

In automotive body-in-white welding lines, the 1734-TB enables distributed I/O nodes to be mounted directly at the weld cell, reducing cable runs by up to 60% compared to centralized I/O panels. Shorter cable runs mean lower resistive losses, reduced EMI exposure, and faster signal propagation — all of which contribute to tighter production cycle times and lower operating load per unit produced.

In food and beverage packaging lines, where washdown environments demand robust, sealed connections, the 1734-TB’s compact DIN-rail mounting and tool-less I/O module insertion allow maintenance teams to replace a failed module in under two minutes. This rapid swap capability directly reduces unplanned downtime — one of the largest hidden energy costs in continuous-process manufacturing, where restarting a chilled or heated process line consumes disproportionate energy compared to steady-state operation.

In pharmaceutical batch processing, where precise temperature and pressure control is mandatory, the 1734-TB supports analog I/O modules that interface with RTD sensors and proportional control valves. By maintaining tight process variable control, the system avoids energy-intensive correction cycles caused by sensor lag or wiring noise — a common problem in long-cable, centralized I/O architectures.

Every unit shipped from our inventory undergoes functional testing prior to dispatch. Combined with a warranty terms confirmed during quotation, this ensures that the 1734-TB you install performs to specification from day one — protecting your maintenance planning investment and your production uptime commitments.

Product Sourcing FAQ

Q1: How does the 1734-TB contribute to operational stability in a POINT I/O system?
The 1734-TB itself is a passive component, but its role in enabling distributed I/O architecture is critical to energy efficiency. By allowing I/O nodes to be placed close to field devices, it reduces cable lengths, lowers resistive losses, and enables faster closed-loop control — which in turn allows VFDs like the PowerFlex 525 to operate motors at optimal efficiency points rather than fixed speeds.

Q2: Is the 1734-TB compatible with my existing 1734 POINT I/O system?
Yes. The 1734-TB is the standard terminal base for the 1734 POINT I/O platform and is compatible with all standard 1734-series I/O modules, including digital input/output, analog input/output, and specialty modules. It mounts on standard 35mm DIN rail and integrates with EtherNet/IP, DeviceNet, and PROFIBUS adapter modules.

Q3: What is the recommended replacement or upgrade path for aging 1734-TB installations?
For systems running legacy 1734-TB units beyond their service life, a like-for-like replacement with a tested, warranted 1734-TB is the lowest-risk option. If upgrading to higher-density I/O, consider the 1734-TBCJC for thermocouple applications or evaluate the 5069 Compact I/O platform for next-generation distributed architectures with enhanced diagnostics and energy reporting.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
All 1734-TB units are functionally tested before shipment to verify mechanical integrity, bus connector continuity, and DIN-rail locking mechanism operation. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, replacement units are dispatched from availability subject to RFQ confirmation to minimize your production downtime.
