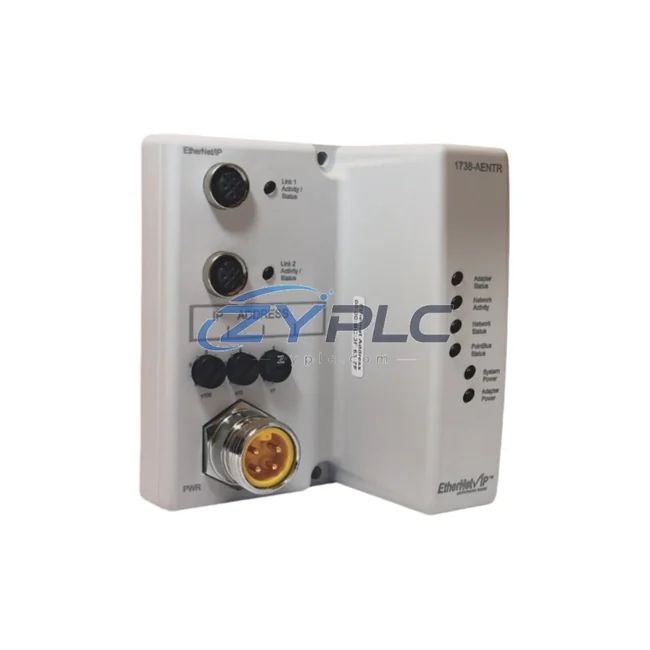

Allen-Bradley 1738-AENTR Industrial Network Interface for ArmorPOINT Systems

Allen-Bradley 1738-AENTR Industrial Network Interface for ArmorPOINT Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices, PLC controllers, remote I/O modules, HMI panels, SCADA platforms, variable frequency drives, sensors, and enterprise-level supervisory systems is no longer optional — it is the foundation of operational excellence. The Allen-Bradley 1738-AENTR EtherNet/IP Adapter is engineered precisely for this mission. As a dual-port, Device Level Ring (DLR)-capable communication adapter for the ArmorPOINT I/O platform, the 1738-AENTR delivers deterministic, high-speed industrial Ethernet connectivity in the harshest plant-floor conditions, enabling real-time data acquisition, protocol-transparent communication, and end-to-end system integration from sensor to cloud.

Compatibility & Integration Notes

Connected Automation Data Flow

The 1738-AENTR sits at the heart of a distributed I/O architecture, acting as the communication gateway between ArmorPOINT field I/O modules and the plant-wide EtherNet/IP network. In a typical smart factory deployment, digital and analog signals from sensors and actuators are collected by ArmorPOINT I/O modules such as the 1738-IB8 (8-point 24VDC digital input) and 1738-OB8 (8-point digital output), then aggregated and transmitted upstream via the 1738-AENTR adapter over a high-speed Ethernet backbone.

At the controller level, a ControlLogix 1756-L83E or CompactLogix 5380 PLC receives real-time I/O data from the 1738-AENTR through implicit EtherNet/IP connections, executing ladder logic and function block programs that govern machine sequences, safety interlocks, and process control loops. The dual-port DLR capability of the 1738-AENTR ensures network resilience — if a cable break occurs anywhere in the ring, traffic is automatically rerouted within milliseconds, maintaining uninterrupted data flow to the controller without operator intervention.

Network infrastructure is provided by the Stratix 5700 managed industrial Ethernet switch, which segments traffic, enforces QoS policies, and provides port-level diagnostics visible from within Studio 5000 Logix Designer. The 1738-AENTR’s EtherNet/IP adapter profile integrates natively into the Studio 5000 environment, allowing engineers to configure I/O connections, set RPI (Requested Packet Interval) rates, and monitor module health — all from a single software platform.

For operator interaction and process visualization, a PanelView Plus 7 HMI terminal running FactoryTalk View ME displays live I/O status, alarm conditions, and trend data sourced directly from the 1738-AENTR’s connected modules. At the SCADA level, FactoryTalk View SE aggregates data from multiple 1738-AENTR nodes across the plant floor, enabling supervisory monitoring, historical logging, and alarm management across production lines.

Drive integration is equally seamless. A PowerFlex 525 variable frequency drive connected to the same EtherNet/IP segment communicates speed references, torque feedback, and fault codes alongside the 1738-AENTR’s I/O data, giving the ControlLogix controller a unified view of both discrete and motion-related process variables. For installations requiring additional remote I/O nodes on a separate network segment, the 1734-AENTR POINT I/O EtherNet/IP adapter provides a complementary solution, extending the same DLR-capable architecture to panel-mounted I/O racks.

Edge connectivity is handled by an industrial edge gateway that subscribes to EtherNet/IP data published by the 1738-AENTR, normalizes it into MQTT or OPC-UA payloads, and forwards it to cloud analytics platforms or MES systems — completing the data journey from sensor signal to enterprise dashboard without a single protocol gap.

Solving Data Isolation in Industrial Sites

Legacy manufacturing environments are frequently plagued by data silos: islands of automation where PLCs, drives, sensors, and I/O systems operate in isolation, unable to share process data with supervisory or enterprise systems. The 1738-AENTR directly addresses these challenges through its native EtherNet/IP implementation and open CIP (Common Industrial Protocol) architecture.

Protocol Unification: By standardizing all ArmorPOINT I/O communication over EtherNet/IP, the 1738-AENTR eliminates the need for proprietary fieldbus wiring (DeviceNet, ControlNet) in new installations, reducing cabling complexity and enabling a single network infrastructure to carry I/O, drive, safety, and motion data simultaneously.

Production Line Transparency: With every I/O module’s status, diagnostic counter, and fault code accessible via explicit CIP messaging, maintenance teams gain full visibility into field device health without physically inspecting junction boxes. Remote diagnostics through FactoryTalk AssetCentre or similar tools allow engineers to identify failing sensors, shorted outputs, or communication errors from the control room — dramatically reducing mean time to repair (MTTR).

Remote Monitoring and Alarm Feedback: The 1738-AENTR supports producer/consumer messaging, enabling any authorized node on the EtherNet/IP network — including SCADA servers, historian databases, and mobile HMI clients — to subscribe to I/O data without polling overhead. Alarm conditions detected at the field level propagate instantly to FactoryTalk View SE and connected notification systems, ensuring rapid operator response.

System Scalability: The modular ArmorPOINT platform allows up to 63 I/O modules per 1738-AENTR adapter node, and multiple adapter nodes can be deployed across a single DLR ring or star topology. As production capacity grows, additional 1738-AENTR nodes and I/O modules can be added without redesigning the network architecture, protecting the initial infrastructure investment.

Outgoing Inspection and Stock Availability: Every 1738-AENTR unit supplied by ZYPLC undergoes functional communication testing prior to shipment, verifying EtherNet/IP connectivity, DLR ring participation, and I/O module enumeration. Units are held in climate-controlled storage and are available for shipment arranged after confirmation, supported by a warranty terms confirmed during quotation covering manufacturing defects and communication failures.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1738-AENTR on an EtherNet/IP network?
The 1738-AENTR supports configurable RPI (Requested Packet Interval) rates as low as 1 ms for time-critical I/O connections, making it suitable for high-speed discrete control applications. Actual end-to-end latency depends on network load, switch configuration, and controller scan time, but in a properly segmented Stratix-managed network, deterministic sub-10 ms response is routinely achieved.

Q2: Is the 1738-AENTR compatible with third-party EtherNet/IP scanners and SCADA systems?
Yes. The 1738-AENTR implements the open CIP (Common Industrial Protocol) standard, making it compatible with any EtherNet/IP Class 1 scanner — including third-party PLCs, DCS systems, and SCADA gateways that support EtherNet/IP. An EDS (Electronic Data Sheet) file is available for integration into non-Rockwell engineering environments.

Q3: How does the Device Level Ring (DLR) feature improve network stability?
DLR is a single-fault-tolerant ring topology defined by the ODVA EtherNet/IP specification. When the 1738-AENTR participates in a DLR ring alongside other DLR-capable devices (such as the 1783-ETAP tap or Stratix 5700 switch), a ring supervisor continuously monitors link integrity. Upon detecting a cable break or device failure, the supervisor reconfigures the ring into a linear topology within approximately 3 ms, preventing I/O connection timeouts and controller faults.

Q4: What does the warranty terms confirmed during quotation cover, and what is the RFQ process?
ZYPLC’s warranty terms confirmed during quotation covers all manufacturing defects, communication failures, and hardware malfunctions under normal operating conditions. Warranty claims are processed within 5 business days. To request a quotation for the 1738-AENTR or any related ArmorPOINT I/O module, contact our sales team directly at +86 19859288691 or plc.sales@zyplc.com. Stock availability and lead times are confirmed at the time of inquiry.
