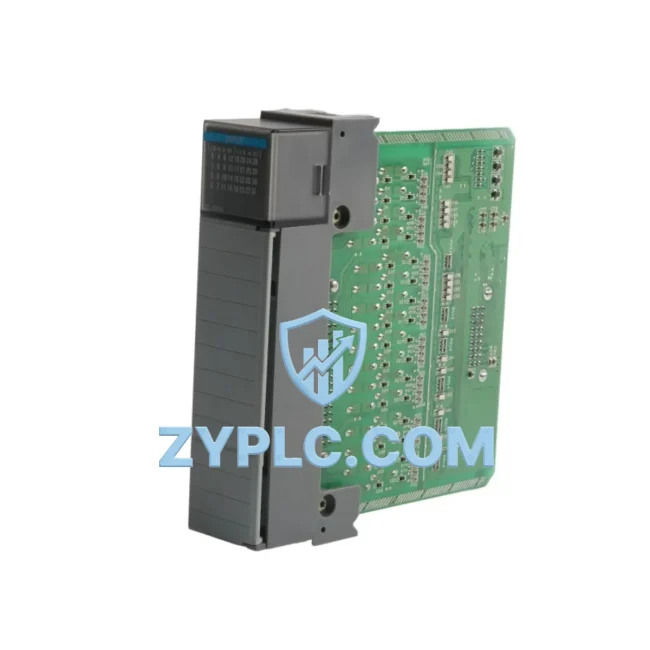

Allen-Bradley 1746-IB32 System-Ready DC Input for SLC 500 Architecture

Allen-Bradley 1746-IB32 System-Ready DC Input for SLC 500 Architecture

The Allen-Bradley 1746-IB32 is a 32-point, 24VDC sink input module engineered for seamless integration within the SLC 500 modular control platform. Rather than functioning as a standalone component, the 1746-IB32 occupies a precise role within a layered automation hierarchy — bridging field-level signal acquisition with the deterministic scan cycle of the SLC 5/04 or SLC 5/05 processor. Its high channel density and robust electrical isolation make it a foundational I/O element in systems where signal integrity, rack utilization, and long-term maintainability are engineering priorities.

In a typical SLC 500 chassis configuration, the 1746-IB32 is installed alongside the 1746-P4 power supply, which delivers regulated 24VDC backplane power to all modules in the rack. The processor — commonly a 1747-L543 or 1747-L553 CPU — communicates with the input module through the 1746-A13 or 1746-A10 chassis backplane, scanning all 32 input points within each program cycle. This tight integration between the power layer, processor layer, and I/O layer is what defines the SLC 500’s reputation for deterministic, high-reliability control in demanding industrial environments.

Signal flow begins at the field device — proximity sensors, limit switches, pushbuttons, or relay contacts — and terminates at the 1746-IB32’s screw-terminal wiring base. Each input channel is optically isolated, protecting the backplane and processor from transient voltages common in motor control centers and panel environments. The module’s 32-point density reduces the number of chassis slots required, directly improving rack utilization and lowering per-point hardware cost in large-scale I/O architectures.

Architecture Specification Table

Coordinated Control System Design

The 1746-IB32 achieves its full architectural value when deployed within a coordinated SLC 500 system. At the processor layer, the 1747-L543 CPU manages the ladder logic program that maps each of the 32 input bits to control outputs, timers, counters, and data table elements. The processor communicates upstream via the 1747-SDN DeviceNet Scanner or the 1747-KFC15 EtherNet/IP communication module, enabling supervisory systems and SCADA platforms to read real-time input states without interrupting the scan cycle.

On the output side, the 1746-IB32 works in tandem with the 1746-OB32 DC output module, which drives solenoids, contactors, and pilot lights based on the processor’s evaluated logic. Together, these two modules form a matched 32-point I/O pair that maximizes chassis slot efficiency. For analog signal acquisition — such as pressure transmitters or flow meters — the 1746-NI8 analog input module occupies adjacent slots, feeding process variables into the same data table that the 1746-IB32 populates with discrete states.

Power distribution within the cabinet is managed by the 1746-P4 power supply, which supports up to 10 amps of backplane current — sufficient for fully populated 1746-A13 chassis configurations. For applications requiring redundant power, engineers often pair the primary supply with a secondary 1746-P2 unit on a separate chassis segment, ensuring that a power supply fault does not interrupt the entire I/O scan. The 1746-IB32’s group isolation architecture supports this redundancy model by allowing field wiring commons to be segmented independently of the backplane ground reference.

At the human-machine interface layer, a PanelView 800 or PanelView Plus 7 terminal connected via DH-485 or EtherNet/IP provides operators with real-time visibility into the input states captured by the 1746-IB32. Maintenance technicians can use RSLogix 500 online monitoring to force individual input bits during commissioning, dramatically reducing loop-check time on large installations.

Application in Layered Automation Systems

In automotive manufacturing lines, the 1746-IB32 captures part-present signals from inductive proximity sensors at each assembly station. The SLC 5/04 processor uses these inputs to sequence pneumatic actuators via the 1746-OB32, maintaining precise production rhythm and preventing tooling damage from out-of-sequence operations. The high channel density of the 1746-IB32 means a single chassis slot handles an entire workstation’s discrete input map, simplifying both wiring and documentation.

In water treatment facilities, the module monitors float switches, valve position feedback, and pump run signals across multiple lift stations. Because the SLC 500 platform supports distributed I/O via the 1747-SDN DeviceNet scanner, remote chassis equipped with 1746-IB32 modules can be located at field junction boxes, reducing cable runs and improving signal quality. The module’s 0°C to 60°C operating range accommodates outdoor enclosures in temperate climates without additional thermal management.

In petrochemical process control, the 1746-IB32 interfaces with intrinsically safe barriers and relay isolators that condition signals from hazardous area field devices. The module’s optical isolation and group-isolated commons allow engineers to maintain separation between different process areas within the same chassis, satisfying zone segregation requirements without adding additional hardware layers. Long-term, the SLC 500 platform’s broad installed base ensures that replacement modules, spare processors, and compatible I/O remain available through established industrial distributors — a critical consideration for facilities with 15–20 year equipment lifecycles.

In packaging and material handling systems, the 1746-IB32 reads encoder index pulses, photoeye signals, and conveyor jam detectors at line speeds where scan-cycle determinism is essential. The module’s 8.5 mA per-point input current is well-matched to standard IEC-compliant sensors, eliminating the need for current-boosting relays that add cost and failure points to the wiring cabinet.

Architecture Engineering FAQ

Q1: Is the 1746-IB32 compatible with all SLC 500 chassis and processor combinations?
The 1746-IB32 is compatible with all standard 1746-series chassis — including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 — and operates with all SLC 500 processor families from the SLC 5/01 through the SLC 5/05. Slot addressing is automatic via the backplane, and RSLogix 500 will recognize the module during an I/O configuration scan. No firmware updates or special configuration files are required for standard installations.

Q2: How does the 1746-IB32 support long-term maintenance and system uptime?
The module’s screw-terminal wiring base allows field wiring to be disconnected and reconnected without disturbing adjacent modules, simplifying replacement during scheduled maintenance windows. Because the 1746-IB32 is a widely stocked component in the SLC 500 ecosystem, mean time to replacement is low. All units supplied by ZYPLC are tested under load prior to shipment and covered by a 12-Month Warranty, ensuring that replacement modules perform identically to the original hardware.

Q3: Can the 1746-IB32 be used in systems being migrated to the ControlLogix or CompactLogix platform?
Yes. During phased migration projects, the 1746-IB32 can continue to operate in its existing SLC 500 chassis while new ControlLogix or CompactLogix racks are commissioned in parallel. The 1747-AENTR EtherNet/IP adapter allows legacy SLC 500 I/O chassis — including those populated with 1746-IB32 modules — to be connected as remote I/O to a ControlLogix L7x or CompactLogix L3x processor, extending the useful life of existing field wiring and cabinet infrastructure while the migration proceeds at a controlled pace.

—
