Allen-Bradley 1746-IM8 AC Input Module for SLC 500 Systems

Allen-Bradley 1746-IM8 AC Input Module: Industrial Data Link for SLC 500 Systems

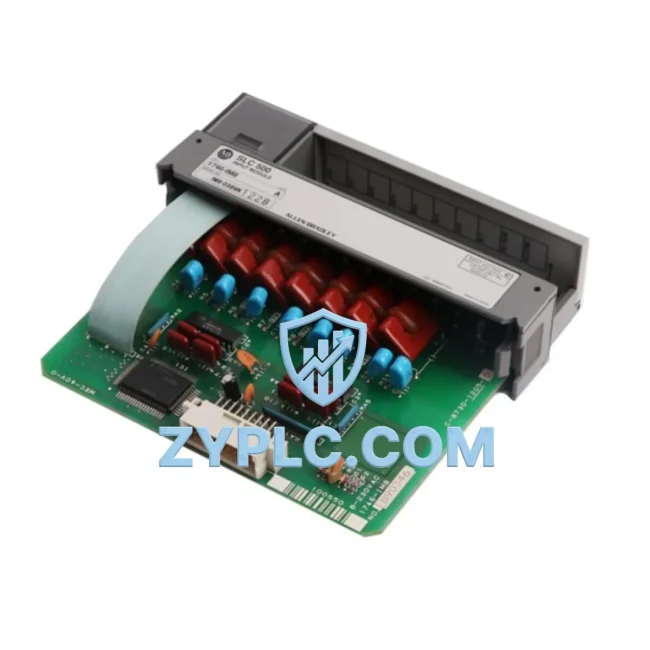

The Allen-Bradley 1746-IM8 is an 8-channel 240V AC discrete input module engineered for the SLC 500 modular I/O platform. As a core node in the industrial data chain, the 1746-IM8 bridges field-level signal acquisition with the SLC 500 processor backplane, enabling real-time status data to flow upward through the control network — from sensors and actuators on the plant floor to PLC logic, SCADA dashboards, and HMI visualization layers. In smart factory environments where data transparency and network reliability are non-negotiable, the 1746-IM8 delivers the deterministic, low-latency discrete input performance that modern connected automation demands.

Network Communication Table

Connected Automation Data Flow

In a typical SLC 500 control architecture, the 1746-IM8 sits at the signal acquisition layer, reading 240V AC field inputs — motor run feedback, limit switches, pressure switch contacts, and safety interlock signals — and converting them into digital status bits that the SLC 500 processor (such as the 1747-L532 or 1747-L543) reads on every I/O scan cycle. These status bits are then processed by ladder logic and made available to the broader automation network.

When the SLC 500 processor is equipped with an 1747-KE DH-485 to RS-232 interface or communicates over EtherNet/IP via a 1761-NET-ENI network interface, the discrete input data captured by the 1746-IM8 becomes accessible to upstream SCADA systems such as Rockwell’s FactoryTalk View or third-party platforms via OPC-DA/UA gateways. This allows plant operators to monitor field device status in real time on HMI panels — including PanelView 800 or PanelView Plus 7 terminals — without any manual data entry or polling delay.

For multi-rack or distributed I/O configurations, the 1746-IM8 can be installed in remote chassis connected via the 1747-SN Scanner / 1747-ASB Adapter pair over the SLC Remote I/O link, extending the data reach across large plant floors while maintaining synchronous scan performance. In applications where legacy SLC 500 systems are being integrated into modern IIoT architectures, protocol conversion gateways — such as the ProSoft MVI56-MCM or Anybus X-gateway — can bridge SLC backplane data to MQTT, Modbus TCP, or PROFINET, enabling the 1746-IM8’s field signals to feed edge computing nodes and cloud-based analytics platforms.

Variable frequency drives (VFDs) and soft starters connected to the same control panel often use discrete feedback wired directly into modules like the 1746-IM8 — run/fault/ready signals from drives such as the PowerFlex 40 or PowerFlex 525 are captured here and relayed to the SLC processor for sequencing logic and alarm management. This tight integration between the input module, the PLC processor, and the drive network forms the backbone of coordinated motor control in conveyor, pump, and compressor applications.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — field devices generating critical status signals that never reach the control room, SCADA system, or maintenance dashboard. The 1746-IM8 directly addresses this by providing a reliable, deterministic interface between 240V AC field signals and the SLC 500 processor’s data table, ensuring that every input state change is captured within the processor’s scan cycle and immediately available for logic execution, alarm triggering, and data logging.

In plants where multiple control platforms coexist — SLC 500 alongside ControlLogix, MicroLogix, or third-party PLCs — protocol inconsistency creates integration barriers. By leveraging the SLC 500’s native DH+ or DH-485 network alongside EtherNet/IP-capable processors, the data acquired by the 1746-IM8 can be routed through Rockwell’s FactoryTalk Linx gateway or a 1756-ENBT EtherNet/IP bridge module to unify plant-wide data visibility. This eliminates the need for manual status checks and enables centralized remote monitoring from a single SCADA or MES interface.

For facilities pursuing production line transparency, the 1746-IM8’s 8-channel capacity allows simultaneous monitoring of multiple machine states — enabling OEE (Overall Equipment Effectiveness) calculations, downtime event logging, and predictive maintenance triggers to be built directly into the SLC 500 program. When paired with historian software or an edge gateway, this data feeds continuous improvement workflows without requiring costly hardware replacement or system redesign.

Remote diagnostics are equally simplified: with EtherNet/IP connectivity at the processor level, maintenance engineers can remotely interrogate the SLC 500 data table — including all 1746-IM8 input states — using RSLogix 500 online monitoring or FactoryTalk Diagnostics, identifying field device faults, wiring issues, or input signal anomalies without physical access to the panel. This capability is critical for multi-site operations and reduces mean time to repair (MTTR) significantly.

System expansion is straightforward within the SLC 500 platform: additional 1746-series modules — including analog input modules like the 1746-NI8, output modules such as the 1746-OW16, or specialty communication modules — can be added to the same chassis without reprogramming the core control logic, protecting the existing investment while scaling I/O capacity to meet evolving production requirements.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1746-IM8 support for SCADA and HMI integration?
The 1746-IM8 communicates via the SLC 500 backplane bus to the host processor. Depending on the processor model, the system supports DH+ (Data Highway Plus), DH-485, RS-232 (DF1), and EtherNet/IP — enabling integration with SCADA platforms, HMI terminals, and OPC servers. For modern IIoT connectivity, protocol gateways can bridge SLC 500 data to Modbus TCP, PROFINET, or MQTT.

Q2: How does the 1746-IM8 perform in terms of communication latency and network stability?
As a backplane-mounted module, the 1746-IM8 operates within the SLC 500’s deterministic I/O scan cycle — typically 1–10ms depending on program size and chassis configuration. This ensures consistent, low-latency signal acquisition with no network-induced jitter, making it suitable for time-sensitive control and interlock applications.

Q3: Can the 1746-IM8 be integrated into a system with newer ControlLogix or CompactLogix platforms?
Yes. Using a 1747-SN Remote I/O Scanner or a protocol bridge such as the 1756-RIO Remote I/O adapter, SLC 500 I/O — including the 1746-IM8 — can be mapped into a ControlLogix or CompactLogix system. This allows phased migration strategies where legacy I/O hardware is retained while the control platform is upgraded, protecting capital investment.

Q4: What quality assurance and warranty coverage is provided for the 1746-IM8?
Every 1746-IM8 unit supplied by ZYPLC undergoes pre-shipment functional testing, including input channel verification and backplane communication checks. All units are covered by a 12-month warranty against manufacturing defects and operational failure. In-stock units are available for same-day dispatch via DHL or FedEx with full tracking. For volume orders or urgent requirements, contact our team at plc.sales@zyplc.com or +86 19859288691.
