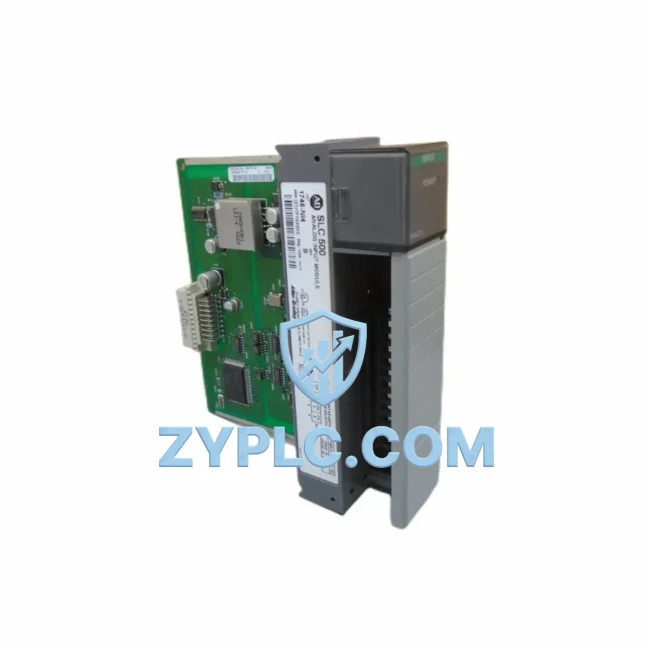

Allen-Bradley 1746-NI4/B Industrial Network Interface for SLC 500 Systems

Allen-Bradley 1746-NI4/B Industrial Network Interface for SLC 500 Systems: Precision Analog Data Link for Smart Factory Connectivity

The Allen-Bradley 1746-NI4/B is a 4-channel analog input module engineered for the SLC 500 modular I/O platform, delivering high-resolution signal acquisition from field instruments directly into the SLC 5/03, SLC 5/04, and SLC 5/05 processor backplane. Designed for demanding industrial environments, this module bridges the gap between physical process signals and digital control networks — forming a critical node in the plant-wide data chain that connects sensors, PLCs, SCADA systems, and HMI terminals.

In modern smart factory architectures, real-time analog data is the foundation of process visibility. The 1746-NI4/B accepts current (4–20 mA) and voltage (0–10 VDC, ±10 VDC) inputs from transmitters, pressure sensors, flow meters, and temperature transducers, converting them into 16-bit digital values that the SLC 500 processor can act upon within each scan cycle. This tight integration between field-level signal acquisition and PLC logic execution is what enables closed-loop control, alarm management, and production transparency across the entire automation layer.

Network Communication Table

Connected Automation Data Flow

The 1746-NI4/B sits at the front end of the industrial data chain. In a typical process line, field instruments such as Rosemount 3051 pressure transmitters or Endress+Hauser Promag flow meters output 4–20 mA signals that are wired directly into the module’s differential input terminals. The module digitizes these signals and places the engineering-unit values into the SLC 500 input image table, where the resident ladder logic program — running on an SLC 5/04 or SLC 5/05 processor — executes PID loops, setpoint comparisons, and alarm evaluations in real time.

When paired with an SLC 5/05 processor, the 1746-NI4/B data becomes accessible over EtherNet/IP, enabling upstream systems to poll live process values without additional gateways. A 1747-AENTR EtherNet/IP adapter or a ProSoft Technology MVI56-MNET Modbus TCP gateway can further extend connectivity to Modbus RTU field devices or legacy serial instruments, consolidating heterogeneous signal sources into a single unified data namespace. This is particularly valuable in retrofit projects where older 1746-NIO4I analog combination modules or 1746-NI8 eight-channel input modules are already installed alongside the NI4/B, and the plant team needs a consistent data model across all analog I/O slots.

At the supervisory layer, FactoryTalk View SE or Ignition SCADA reads the analog tags via EtherNet/IP OPC-UA bridging, rendering real-time trend charts, alarm banners, and KPI dashboards on operator HMI panels such as the Allen-Bradley PanelView Plus 7. Remote engineers can access the same live data through FactoryTalk Remote Access or a VPN-connected SCADA client, enabling remote diagnostics and parameter adjustments without dispatching field personnel. For edge analytics, a Moxa UC-8112 industrial edge gateway can subscribe to the EtherNet/IP data stream and forward time-series values to cloud platforms for predictive maintenance modeling.

On the output side, the analog values processed by the SLC 500 program drive 1746-NO4I analog output modules that command variable frequency drives (VFDs) such as the PowerFlex 40 or PowerFlex 525, adjusting motor speed in response to flow or pressure feedback. This closed-loop architecture — from sensor signal through the 1746-NI4/B, through PLC logic, to VFD command — is the backbone of energy-efficient process control in water treatment, chemical dosing, and HVAC automation applications.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is data isolation: field instruments speak 4–20 mA analog, legacy PLCs communicate over DH+ or DH-485, and modern SCADA platforms expect EtherNet/IP or OPC-UA. The 1746-NI4/B directly addresses the first layer of this problem by providing a standards-compliant, high-resolution analog front end that integrates natively with the SLC 500 backplane — eliminating the need for external signal conditioners or protocol converters at the field level.

For sites running mixed SLC 500 and ControlLogix architectures, the 1747-AENTR adapter bridges the SLC backplane to EtherNet/IP, making 1746-NI4/B data visible to Studio 5000 Logix Designer projects and FactoryTalk Historian without custom middleware. This approach enables production line transparency — operators can see real-time analog values from every zone on a single SCADA screen — and supports the gradual migration from SLC 500 to ControlLogix without disrupting existing field wiring.

Remote monitoring is another area where the 1746-NI4/B delivers measurable value. By surfacing analog process data over EtherNet/IP, maintenance teams can configure alarm thresholds in RSLogix 500 and receive email or SMS notifications through FactoryTalk Alarms and Events when values exceed safe operating limits. This proactive alarm management reduces unplanned downtime and supports the predictive maintenance programs that are central to Industry 4.0 initiatives. System expansion is equally straightforward: additional 1746-NI4/B modules can be inserted into available SLC 500 chassis slots without rewiring, and the SLC 5/05 processor automatically recognizes the new I/O configuration on the next power cycle.

Industrial Connectivity FAQ

Q1: What communication protocols does the 1746-NI4/B support for SCADA integration?
The 1746-NI4/B communicates over the SLC 500 backplane I/O bus. When used with an SLC 5/05 processor, data is accessible via EtherNet/IP, enabling direct integration with FactoryTalk View SE, Ignition SCADA, and any OPC-DA/UA-compliant HMI. For DH+ or DH-485 networks, the SLC 5/03 or SLC 5/04 processor provides the appropriate network interface without additional hardware.

Q2: Is the 1746-NI4/B compatible with third-party Modbus RTU or Modbus TCP devices?
The module itself uses the SLC 500 backplane protocol. Modbus RTU or TCP connectivity requires a protocol gateway such as the ProSoft Technology MVI46-MCM Modbus Communication Module installed in the same SLC 500 chassis, or an external Modbus-to-EtherNet/IP gateway. This configuration allows Modbus field devices to share the same data namespace as the 1746-NI4/B analog inputs within the SLC 500 program.

Q3: How is network stability and signal integrity ensured in electrically noisy environments?
The 1746-NI4/B uses differential input circuitry with common-mode rejection to suppress electrical noise from VFDs, contactors, and high-current cabling. Each channel is individually isolated, and the module’s 16-bit resolution ensures that small process variations are captured accurately even in the presence of background EMI. For additional noise immunity, shielded twisted-pair cable terminated at the panel earth is recommended for all analog field wiring.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing performed?
Every 1746-NI4/B unit supplied by ZYPLC undergoes functional verification prior to shipment, including backplane communication checks and analog input channel calibration confirmation. The 12-month warranty covers hardware defects and operational failures under normal industrial use conditions. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-sale support for installation, configuration, and RSLogix 500 programming guidance.
