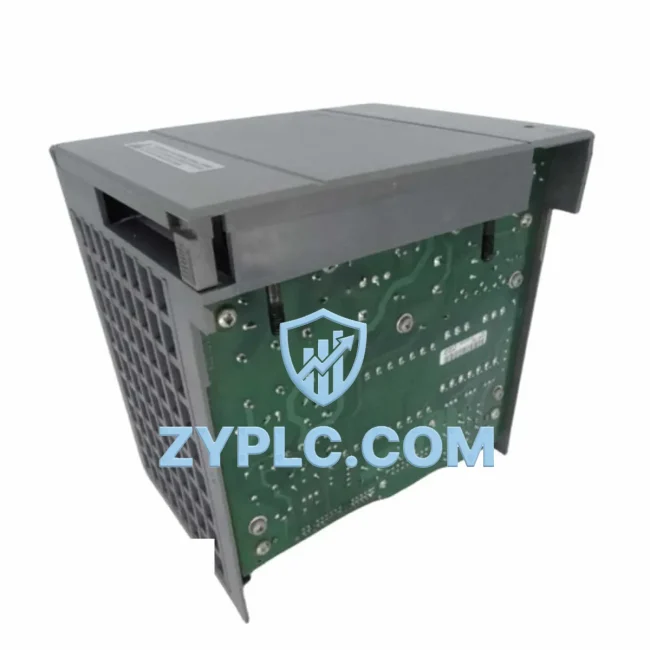

Allen-Bradley 1746-P4 Industrial Network Interface for SLC 500 Systems

Allen-Bradley 1746-P4: Industrial Data Link Power Infrastructure for SLC 500 Smart Factory Systems

The Allen-Bradley 1746-P4 is a high-reliability DC power supply module engineered for the SLC 500 modular PLC platform. In modern smart factory environments, stable and conditioned power delivery is the invisible backbone of every data link — from field-level sensor signals to enterprise SCADA dashboards. The 1746-P4 provides the regulated 24 VDC and 5 VDC rails that keep SLC 500 chassis backplanes, communication modules, and I/O racks operating within specification, ensuring that every node in the industrial network remains online, synchronized, and ready to transmit real-time process data.

As manufacturing sites migrate toward Industry 4.0 architectures, the power supply is no longer a passive component. It is the foundation upon which protocol conversion, remote diagnostics, and edge computing depend. A voltage sag or ripple event at the 1746-P4 level can cascade into communication timeouts across the entire SLC 500 rack, interrupting data flow between field devices and upper-layer systems. Specifying the correct, OEM-grade power module is therefore a critical decision in any industrial connectivity project.

Network Communication Table

Connected Automation Data Flow

In a typical SLC 500 installation, the 1746-P4 powers the entire chassis backplane, supplying regulated voltage to every module seated in the rack. Consider a production line where a 1746-IB16 digital input module collects discrete signals from proximity sensors and photoelectric detectors monitoring part presence on a conveyor. Those signals are processed by the SLC 500 CPU — commonly a 1747-L543 or 1747-L553 processor — which executes ladder logic and generates output commands to a 1746-OB16 digital output module controlling pneumatic actuators and indicator lights.

Simultaneously, the 1747-KE RS-232/DH-485 interface module bridges the SLC 500 rack to a legacy DH-485 network, allowing a PanelView 600 HMI terminal to display real-time process status and accept operator setpoint changes. On the same network segment, a 1747-SDN DeviceNet Scanner module communicates with PowerFlex 40 variable frequency drives controlling conveyor motor speed, reading back actual RPM, current draw, and fault codes into the SLC 500 data table for SCADA logging.

At the network layer, a 1747-AENTR EtherNet/IP adapter bridges the SLC 500 rack to the plant’s Ethernet backbone, enabling a FactoryTalk View SE SCADA server to poll tag data at 100 ms intervals. Alarm conditions — such as a drive overcurrent or a sensor input out of range — are immediately surfaced on the SCADA dashboard and forwarded via OPC-UA to the MES layer for production reporting. Remote engineers can access the SLC 500 processor through RSLogix 500 over the EtherNet/IP path for online program monitoring and remote diagnostics without visiting the panel.

The 1746-P4 underpins all of this data flow. Without stable backplane power, the 1747-KE loses its DH-485 token, the 1747-SDN drops its DeviceNet master scan, and the 1747-AENTR loses its EtherNet/IP connection — severing every data path simultaneously. Specifying the 1746-P4 as the OEM power module, rather than a generic substitute, ensures that all communication modules maintain their network presence and that the SLC 500 system continues to deliver uninterrupted real-time data to HMI, SCADA, and MES layers.

Solving Data Isolation in Industrial Sites

Many legacy manufacturing sites operate SLC 500 systems in isolation — local HMI panels display process data, but that data never reaches the plant historian, ERP system, or remote operations center. The root cause is often a fragmented power and communication infrastructure: mismatched power supplies cause intermittent module resets, which in turn generate spurious communication errors on DH-485 or DeviceNet networks, making reliable data extraction impossible.

Replacing an aging or counterfeit power supply with a genuine Allen-Bradley 1746-P4 is frequently the first step in a site’s digital transformation journey. Once the chassis backplane is stable, integrators can confidently add a 1747-AENTR EtherNet/IP adapter to bridge the SLC 500 to the plant network, deploy a Kepware KEPServerEX OPC server to aggregate tag data, and connect a FactoryTalk Historian to build a continuous process data archive. Production transparency — real-time OEE dashboards, shift reports, and predictive maintenance alerts — becomes achievable without replacing the existing SLC 500 control logic.

For sites with mixed protocol environments, the stable power foundation provided by the 1746-P4 also supports the addition of protocol gateway devices such as the ProSoft MVI46-MCM Modbus Communication Module, which translates between the SLC 500 data table and Modbus RTU devices including energy meters, flow computers, and third-party sensors. This eliminates data silos between the PLC layer and instrumentation networks, enabling a single SCADA view across all field devices regardless of their native protocol.

Every 1746-P4 unit shipped by ZYPLC undergoes pre-shipment functional testing, verifying output voltage regulation, ripple, and overcurrent protection before dispatch. Combined with a 12-month warranty and dedicated technical support, customers can deploy with confidence knowing that their SLC 500 power infrastructure meets OEM specifications and will support reliable industrial network operation throughout the warranty period.

Industrial Connectivity FAQ

Q1: Will the 1746-P4 support all communication modules in my SLC 500 chassis?
Yes. The 1746-P4 provides the regulated +5 VDC and +24 VDC backplane rails required by all standard 1746-series I/O and communication modules, including the 1747-KE, 1747-SDN, 1747-SCNR, and 1747-AENTR. It is compatible with all SLC 500 modular chassis from 4-slot to 13-slot configurations.

Q2: Can I use the 1746-P4 in a system that communicates over EtherNet/IP to a FactoryTalk SCADA server?
Absolutely. The 1746-P4 powers the chassis backplane that hosts the 1747-AENTR EtherNet/IP adapter, which provides the EtherNet/IP connectivity to FactoryTalk View SE, FactoryTalk Historian, and any OPC-UA client. Stable backplane power is essential for maintaining the EtherNet/IP session without dropouts.

Q3: How does a failing power supply affect network communication stability in an SLC 500 system?
A degraded power supply causes voltage sags on the backplane, which can trigger watchdog resets on communication modules such as the 1747-SDN or 1747-KE. These resets appear as intermittent network timeouts in RSLinx, SCADA tag quality errors, and DeviceNet node dropouts — symptoms that are often misdiagnosed as network configuration issues. Replacing the 1746-P4 with a genuine OEM unit resolves the root cause.

Q4: What warranty and testing does ZYPLC provide with the 1746-P4?
All 1746-P4 units are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including output voltage verification, load regulation testing, and overcurrent protection validation. In-stock units are available for same-day dispatch, and our technical team is available to support installation and commissioning queries.
