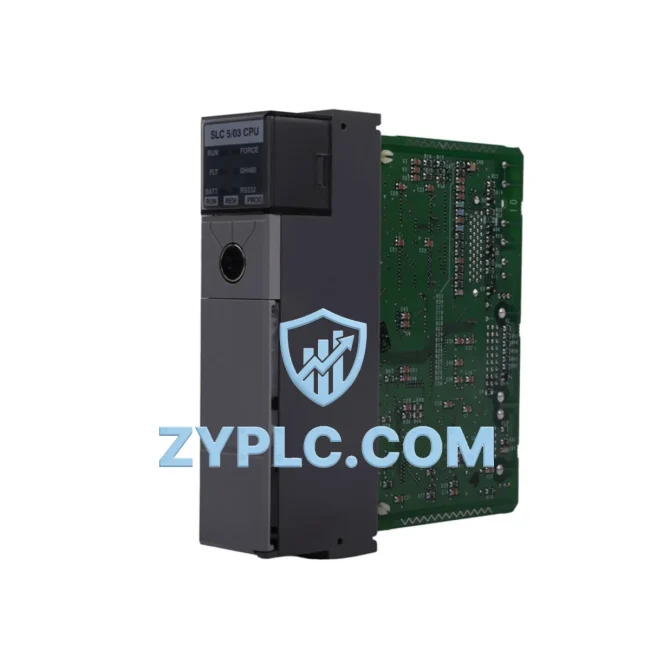

Allen-Bradley 1747-L543 Industrial Network Interface for SLC 500 Systems

Allen-Bradley 1747-L543 Industrial Network Interface for SLC 500 Systems: Bridging the Industrial Data Link

The Allen-Bradley 1747-L543 is a high-performance DH+ Communication Processor engineered for the SLC 500 series — one of Rockwell Automation’s most enduring and widely deployed programmable logic controller platforms. Designed to serve as the central intelligence and network gateway within a distributed control architecture, the 1747-L543 delivers reliable, deterministic data exchange across the plant floor, connecting field-level devices to supervisory systems with precision and stability.

With 16KB of user memory, support for up to 4096 discrete I/O points, and native Data Highway Plus (DH+) communication alongside an RS-232C channel, this processor is purpose-built for industrial environments where uptime, protocol compatibility, and real-time data integrity are non-negotiable. Whether you are maintaining a legacy automation network or integrating SLC 500 assets into a modern SCADA or MES architecture, the 1747-L543 provides the connectivity backbone your system demands.

All units supplied by ZYPLC are sourced from verified channels, fully tested prior to shipment, and covered by a 12-month warranty. Stock is available for immediate dispatch with global logistics support.

Network Communication Table

Connected Automation Data Flow

In a modern smart factory, the 1747-L543 sits at the heart of the control layer, orchestrating data flow between field instrumentation and upper-level management systems. The journey begins at the sensor and actuator level, where devices such as 1746-IB16 digital input modules and 1746-OB16 digital output modules — mounted in the SLC 500 chassis alongside the 1747-L543 — continuously capture process signals: temperature readings, pressure states, motor run feedback, and valve positions.

These signals are processed by the 1747-L543’s CPU and made available across the DH+ network, where peer PLCs such as the Allen-Bradley SLC 5/05 (1747-L553) — equipped with native Ethernet/IP — can exchange data via MSG instructions, enabling coordinated multi-zone control without a central bottleneck. The RS-232C channel simultaneously supports a direct connection to an Allen-Bradley PanelView 600 HMI terminal, delivering real-time process visualization to operators on the production floor.

At the supervisory level, a 1784-PKTX Data Highway Plus interface card installed in the SCADA workstation provides the upstream bridge, allowing platforms such as FactoryTalk View SE or third-party SCADA systems to poll the 1747-L543 for live tag data, alarm states, and production counters. This architecture eliminates data silos between the control layer and the operations layer, enabling plant-wide transparency.

For remote I/O expansion, the 1747-L543 interfaces with 1747-ASB Remote I/O Adapter modules, extending the control reach to distributed I/O racks located across the production line — conveyor stations, packaging cells, or utility panels — without requiring additional PLC processors at each node. This reduces hardware costs while maintaining centralized program logic.

In drive integration scenarios, the 1747-L543 communicates with Allen-Bradley PowerFlex 40 variable frequency drives via the RS-232 DF1 protocol or through a 1203-GU6 DeviceNet/DH-485 gateway, enabling speed reference commands, fault diagnostics, and energy monitoring to flow seamlessly into the SLC 500 program. This data is then forwarded upstream to the SCADA historian for trend analysis and predictive maintenance scheduling.

Edge connectivity is further enhanced when the 1747-L543 network is paired with a ProSoft Technology MVI46-MNET Modbus TCP/IP communication module installed in the SLC 500 rack, allowing legacy Modbus RTU field devices — flow meters, power analyzers, and smart sensors — to be integrated into the DH+ data fabric without hardware replacement. The result is a unified, protocol-agnostic data pipeline from the field device to the enterprise dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across generations of equipment. A plant running SLC 500 controllers alongside newer ControlLogix systems, third-party Modbus devices, and Ethernet-connected HMIs faces a fundamental data isolation problem: each system speaks a different language, and without a capable communication processor at the center, real-time data exchange becomes impossible.

The 1747-L543 directly addresses this challenge. Its dual-channel architecture — DH+ on one side and RS-232C on the other — allows it to act as a protocol bridge, translating between DH+ peer messaging and serial DF1 or DH-485 communications. This means that a SCADA system connected via a 1784-PKTX card can transparently read and write data to any node on the DH+ network, including remote I/O adapters, peer PLCs, and HMI terminals, all through a single processor.

For plants pursuing production line transparency and OEE (Overall Equipment Effectiveness) improvement, the 1747-L543 enables real-time KPI data — cycle counts, reject rates, downtime events — to be surfaced to MES and ERP systems without manual data entry. Alarm states generated by field sensors are propagated through the DH+ network to the SCADA alarm server within milliseconds, enabling rapid operator response and reducing mean time to repair (MTTR).

Remote diagnostics are equally well-served. Maintenance engineers can connect to the 1747-L543 via RSLogix 500 programming software over the DH+ network from a remote workstation, uploading and downloading programs, monitoring live data tables, and forcing I/O states without physical access to the control panel. This capability is critical for multi-site operations where on-site engineering resources are limited.

System expansion is straightforward: additional SLC 500 chassis, remote I/O racks, and communication modules can be added to the DH+ network without disrupting existing nodes, making the 1747-L543 a scalable foundation for phased automation upgrades. ZYPLC maintains ready stock of the 1747-L543 and compatible SLC 500 components, ensuring that replacement and expansion projects are not delayed by supply chain constraints.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1747-L543 support, and is it compatible with modern SCADA systems?
The 1747-L543 supports Data Highway Plus (DH+) as its primary network protocol, with the RS-232C channel supporting DF1 Full/Half Duplex, DH-485, and ASCII modes. It is fully compatible with Rockwell Automation SCADA platforms including FactoryTalk View SE and RSView32, as well as third-party SCADA systems that support DH+ via a 1784-PKTX or equivalent interface card. For Ethernet-based SCADA integration, a protocol gateway such as the ProSoft MVI46-MNET can be added to the SLC 500 rack.

Q2: What is the typical communication latency on a DH+ network with the 1747-L543?
DH+ is a token-passing network operating at 57.6 Kbps (standard) with deterministic message delivery. In a well-configured network with fewer than 32 nodes, typical MSG instruction round-trip times are in the range of 10–50 milliseconds, making it suitable for supervisory data exchange, alarm reporting, and HMI updates. For high-speed, time-critical I/O control, local chassis I/O modules provide scan-cycle-level response independent of network latency.

Q3: Can the 1747-L543 be integrated into a network alongside newer ControlLogix or CompactLogix systems?
Yes. While the 1747-L543 is a native SLC 500 / DH+ device, it can coexist on a mixed network through the use of 1756-DHRIO (ControlLogix DH+/Remote I/O bridge module) or 1784-PKTX interface cards. These bridges allow ControlLogix processors to exchange data with SLC 500 nodes via MSG instructions, enabling phased migration strategies where legacy SLC 500 systems continue to operate while newer ControlLogix infrastructure is introduced.

Q4: What does the 12-month warranty from ZYPLC cover, and how is pre-shipment testing conducted?
Every Allen-Bradley 1747-L543 unit supplied by ZYPLC undergoes functional verification prior to dispatch, including power-on testing, communication channel validation, and memory integrity checks. The 12-month warranty covers hardware defects and communication failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides replacement or repair support with priority handling. For urgent requirements, expedited shipping is available to minimize production downtime.
