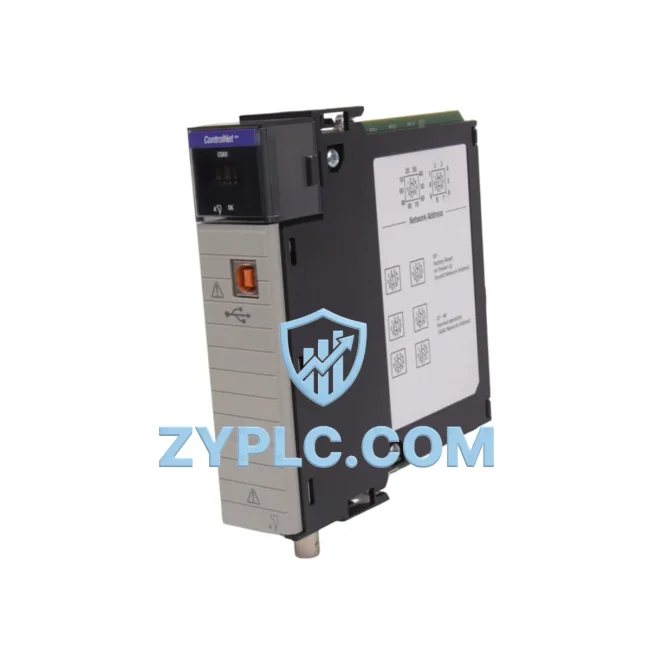

Allen-Bradley 1756-CN2 ControlNet Communication Module

Allen-Bradley 1756-CN2 ControlNet Communication Module: Industrial Data Link for Smart Factory Connectivity

The Allen-Bradley 1756-CN2 is a high-performance ControlNet communication module designed for the ControlLogix platform, delivering deterministic, real-time data exchange across complex industrial network architectures. As a core node in the ControlNet backbone, the 1756-CN2 bridges field-level devices, PLC controllers, remote I/O subsystems, HMI panels, SCADA systems, and upper-level MES platforms into a unified, transparent data flow — making it an essential component for smart factory deployments where data integrity, network stability, and system scalability are non-negotiable.

In modern industrial environments, the demand for seamless connectivity between heterogeneous devices has never been greater. The 1756-CN2 answers this challenge by providing a robust, standards-compliant ControlNet interface that supports both scheduled (time-critical) and unscheduled (messaging) communication on the same physical medium. This dual-mode capability ensures that time-sensitive I/O data and on-demand diagnostic or configuration messages coexist without interference, maintaining deterministic cycle times even under heavy network loads.

Network Communication Table

Connected Automation Data Flow

The 1756-CN2 sits at the heart of a layered industrial communication architecture. At the field level, distributed I/O adapters such as the 1794-ACN15 (FLEX I/O ControlNet Adapter) collect analog and digital signals from sensors, proximity switches, and actuators, transmitting this data upstream to the ControlLogix chassis over the ControlNet segment managed by the 1756-CN2. Within the chassis, the 1756-L71 or 1756-L74 ControlLogix CPU processes this I/O data in real time, executing ladder logic and function block programs that govern machine behavior.

For drive integration, the 1756-CN2 communicates with PowerFlex 700 and PowerFlex 755 variable frequency drives equipped with ControlNet communication adapters, enabling closed-loop speed and torque control with deterministic update rates. This eliminates the latency and unpredictability associated with traditional hardwired control, allowing the PLC to dynamically adjust drive parameters based on real-time process feedback from upstream sensors.

At the supervisory level, the 1756-CN2 facilitates data exchange with PanelView Plus 7 HMI terminals, providing operators with live process visualization, alarm management, and trend displays. Simultaneously, the ControlNet network feeds data to a FactoryTalk View SE SCADA server via the 1756-ENBT EtherNet/IP bridge module in the same chassis, creating a seamless pathway from field device to enterprise dashboard. Remote I/O racks equipped with 1756-CNB or 1756-CNBR ControlNet bridge modules extend the I/O footprint across large plant floors without additional PLC hardware, reducing both capital expenditure and wiring complexity.

For edge computing and IIoT integration, data aggregated by the 1756-CN2 network can be forwarded through an edge gateway running FactoryTalk Historian or third-party OPC-UA servers, enabling cloud-based analytics, predictive maintenance algorithms, and digital twin synchronization. This positions the 1756-CN2 not merely as a legacy communication module, but as a foundational element in the Industry 4.0 connectivity stack.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols and isolated network segments. Legacy installations often feature a patchwork of proprietary fieldbus systems — DeviceNet, Modbus RTU, Profibus DP — that cannot natively communicate with modern Ethernet-based supervisory systems. The 1756-CN2 addresses this by serving as the authoritative ControlNet master, consolidating I/O data from distributed field nodes into a single, coherent data stream accessible to the ControlLogix CPU and, by extension, to any connected SCADA or MES platform.

Protocol unification is achieved through the Common Industrial Protocol (CIP) layer that underpins ControlNet, EtherNet/IP, and DeviceNet simultaneously. This means that a plant running a mixed network — ControlNet for time-critical I/O, EtherNet/IP for supervisory communication, and DeviceNet for sensor-level devices — can achieve end-to-end data transparency without protocol conversion gateways, reducing network complexity and potential points of failure.

Remote monitoring and diagnostics are equally critical in large-scale installations. The 1756-CN2 supports RSNetWorx for ControlNet configuration software, enabling engineers to map network topology, schedule bandwidth allocation, and diagnose node faults from a central workstation without physical access to the field panel. This capability dramatically reduces mean time to repair (MTTR) and supports predictive maintenance strategies by surfacing communication errors, node dropouts, and bandwidth saturation events before they escalate into unplanned downtime.

Production line transparency is further enhanced by the module’s support for producer/consumer communication, where a single data source can simultaneously serve multiple consumers — HMI panels, historian servers, quality management systems — without generating redundant network traffic. This multicast efficiency is particularly valuable in high-node-count installations where bandwidth conservation directly impacts network determinism and cycle time consistency.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1756-CN2 on a ControlNet network?
The 1756-CN2 supports configurable Network Update Times (NUT) as low as 2 ms, ensuring deterministic, low-latency data delivery for time-critical I/O applications. Scheduled bandwidth is allocated during network configuration via RSNetWorx, guaranteeing that each node receives its data within the defined NUT regardless of unscheduled traffic volume.

Q2: Is the 1756-CN2 compatible with both older and newer ControlLogix chassis and firmware?
Yes. The 1756-CN2 is compatible across the full ControlLogix 1756 chassis family and supports a wide range of Logix firmware revisions. It is backward-compatible with earlier ControlNet implementations and can coexist on the same network segment with legacy 1756-CNB modules, protecting existing infrastructure investments while enabling incremental system upgrades.

Q3: How does the 1756-CN2 support network redundancy and fault tolerance?
The module features dual BNC coaxial ports supporting ControlNet’s inherent dual-media redundancy. If the primary coaxial cable is damaged or experiences signal degradation, the network automatically switches to the redundant cable without interrupting scheduled communication or causing PLC faults. This hardware-level redundancy is critical for continuous-process industries where network downtime directly translates to production loss.

Q4: What quality assurance and warranty coverage is provided with the 1756-CN2?
Every 1756-CN2 unit supplied by ZYPLC undergoes functional communication testing prior to shipment, verifying backplane integration, ControlNet node registration, and scheduled/unscheduled messaging capability. A 12-month warranty covers all hardware defects and communication failures under normal operating conditions. In-stock inventory ensures rapid dispatch, minimizing lead times for urgent maintenance and production continuity requirements.
