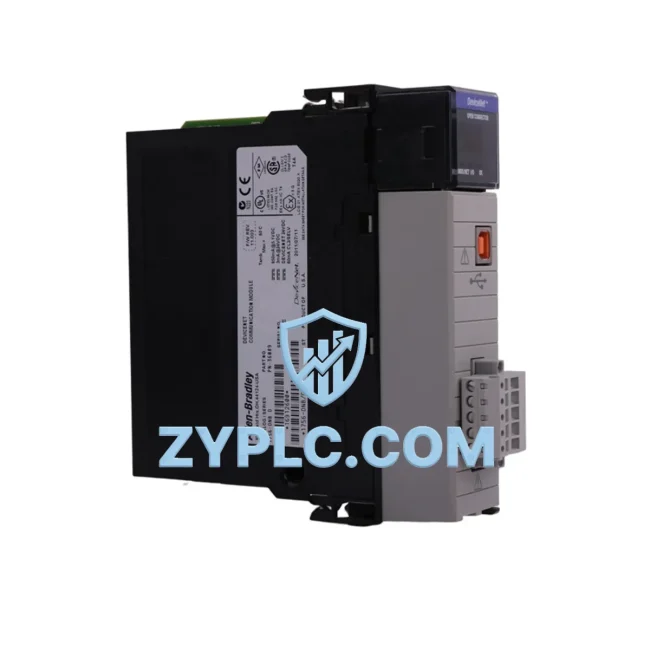

Allen-Bradley 1756-DNB Industrial Network Interface for ControlLogix Systems

Allen-Bradley 1756-DNB Industrial Network Interface for ControlLogix Systems: Bridging the Industrial Data Link

The Allen-Bradley 1756-DNB is a high-performance DeviceNet scanner module engineered for the ControlLogix chassis platform, delivering seamless protocol conversion and real-time data exchange across complex industrial automation architectures. As factories evolve toward fully connected smart manufacturing environments, the 1756-DNB serves as a critical bridge between field-level DeviceNet devices and the upper-layer control, monitoring, and enterprise systems that depend on accurate, low-latency data. Whether integrating distributed I/O nodes, variable frequency drives, intelligent sensors, or safety devices, this module ensures that every byte of process data flows reliably from the plant floor to the control room and beyond.

Designed to operate within the ControlLogix 1756 backplane, the 1756-DNB communicates natively with the Logix5000 controller family — including the 1756-L71, 1756-L74, and 1756-L85 processors — using the Producer/Consumer communication model for deterministic, high-speed data transfer. Its DeviceNet master/scanner capability supports up to 64 nodes per network segment, enabling broad device coverage across a single production line or multi-zone facility layout.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 1756-DNB sits at the heart of the field-level communication layer. Signal acquisition begins at the device edge: photoelectric sensors, proximity switches, and pressure transmitters connected to DeviceNet I/O blocks — such as the 1756-IB16 digital input module or 1734-ADN Point I/O DeviceNet adapter — continuously stream process values onto the DeviceNet trunk cable. The 1756-DNB scanner polls these nodes cyclically, collecting I/O data and forwarding it across the ControlLogix backplane to the resident Logix5000 controller in real time.

From the controller, processed data travels upstream via the 1756-ENBT or 1756-EN2T EtherNet/IP bridge module, entering the plant’s industrial Ethernet backbone. At this layer, a Stratix 5700 managed industrial switch routes traffic between the ControlLogix rack, operator HMI panels running FactoryTalk View SE, and the SCADA server executing FactoryTalk Historian or Ignition SCADA. This multi-tier architecture — DeviceNet at the device level, EtherNet/IP at the control level, and OPC-UA or SQL at the supervisory level — is precisely where the 1756-DNB delivers its greatest value: eliminating the data gap between legacy DeviceNet field devices and modern IP-based control platforms.

For drive integration, the 1756-DNB enables direct communication with PowerFlex 40 and PowerFlex 700 variable frequency drives configured as DeviceNet slaves. Speed references, torque commands, fault status, and energy consumption data are exchanged cyclically without additional protocol converters, reducing wiring complexity and improving system response time. Similarly, POINT Guard I/O safety modules on the DeviceNet network report safety status directly to the 1756-DNB, which relays fault conditions to the GuardLogix safety controller for immediate protective action.

Remote diagnostic capability is another key advantage. Through the ControlLogix backplane and the plant’s EtherNet/IP network, maintenance engineers can use RSLinx Classic or FactoryTalk AssetCentre to remotely browse the DeviceNet network topology, read device parameters, and diagnose communication faults — all without physical access to the panel. This remote visibility dramatically reduces mean time to repair (MTTR) and supports predictive maintenance strategies aligned with Industry 4.0 objectives.

Solving Data Isolation in Industrial Sites

Many manufacturing facilities operate with a fragmented automation landscape: legacy DeviceNet devices installed a decade ago coexist with newer EtherNet/IP controllers, Modbus RTU instruments, and cloud-connected edge gateways. Without a capable protocol bridge, these systems operate as data silos — each collecting valuable process information that never reaches the SCADA dashboard or MES database where it could drive operational decisions.

The 1756-DNB directly addresses this challenge. By acting as the DeviceNet master within the ControlLogix platform, it consolidates data from up to 64 field devices into a single, structured data table accessible to the Logix5000 controller. From there, the ControlLogix system’s native EtherNet/IP connectivity — via modules like the 1756-EN2TR with DLR ring topology support — carries this data to any IP-connected system on the network, including third-party SCADA platforms, OPC servers, and cloud-based analytics engines.

Production line transparency is significantly enhanced. Operators viewing FactoryTalk View ME panels on the machine level or FactoryTalk View SE on the plant-wide SCADA can see real-time device status, I/O values, and network health indicators sourced directly from the DeviceNet field layer through the 1756-DNB. Alarm conditions detected at the device level — such as a drive fault on a PowerFlex 525 or a sensor communication timeout — propagate instantly through the data chain, triggering HMI alarms and historian event logs without manual intervention.

System expansion is equally straightforward. Adding new DeviceNet nodes to an existing 1756-DNB network requires only RSNetWorx for DeviceNet configuration — no hardware changes to the ControlLogix rack are necessary. This scalability makes the 1756-DNB a long-term investment for facilities planning phased automation upgrades, ensuring that new field devices can be integrated without disrupting existing production operations.

Every 1756-DNB unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying backplane communication, DeviceNet network initialization, and I/O data exchange before dispatch. All units are covered by a 12-month warranty, with in-stock availability ensuring rapid delivery to support urgent maintenance and project timelines.

Industrial Connectivity FAQ

Q1: What is the maximum communication speed supported by the 1756-DNB on a DeviceNet network?
The 1756-DNB supports DeviceNet data rates of 125 Kbps, 250 Kbps, and 500 Kbps, with automatic baud rate detection available. The selected data rate must be consistent across all nodes on the same DeviceNet segment. For most industrial applications with cable runs under 100 meters, 500 Kbps is recommended for optimal real-time performance.

Q2: Is the 1756-DNB compatible with third-party DeviceNet devices from other manufacturers?
Yes. The 1756-DNB conforms to the DeviceNet specification (ODVA) and is compatible with any compliant DeviceNet device, regardless of manufacturer. This includes drives, sensors, valve manifolds, barcode readers, and remote I/O adapters from vendors such as Siemens, Omron, Turck, and Pepperl+Fuchs, provided they carry valid DeviceNet certification.

Q3: How does the 1756-DNB maintain network stability in electrically noisy industrial environments?
The DeviceNet physical layer uses a differential CAN bus signal with built-in noise immunity, and the 1756-DNB incorporates hardware-level error detection and automatic retry mechanisms. Proper network termination (121-ohm resistors at both ends of the trunk), correct cable grounding, and adherence to DeviceNet cable length specifications are essential for sustained network stability. The module also provides diagnostic counters for bus-off events, CRC errors, and node timeouts, accessible via RSNetWorx for DeviceNet.

Q4: Does ZYPLC provide pre-shipment testing and warranty coverage for the 1756-DNB?
Yes. All 1756-DNB modules supplied by ZYPLC are functionally tested prior to shipment, including backplane initialization, DeviceNet master scan list verification, and I/O data exchange confirmation. Each unit is backed by a 12-month warranty covering manufacturing defects and communication failures under normal operating conditions. In-stock units are available for immediate dispatch to minimize project downtime.
