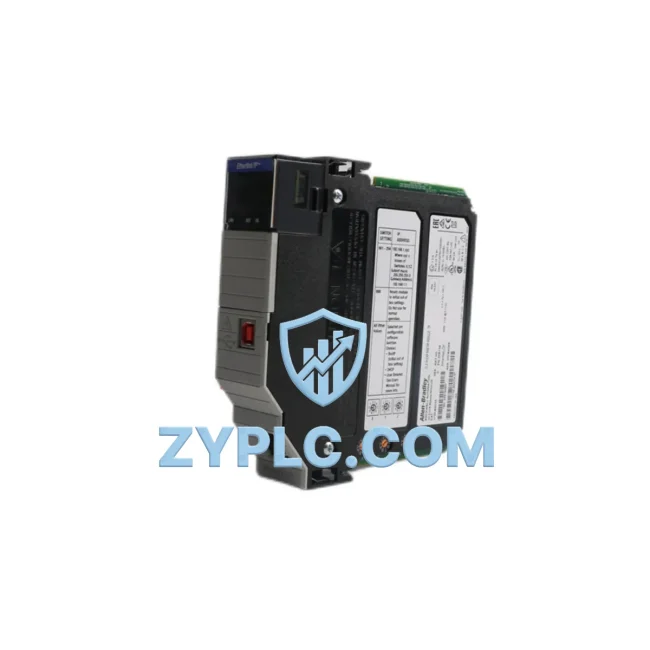

Allen-Bradley 1756-EN2TK Industrial Network Interface for ControlLogix Systems

Allen-Bradley 1756-EN2TK Industrial Network Interface for ControlLogix Systems: High-Speed EtherNet/IP Data Link for Smart Factory Connectivity

The Allen-Bradley 1756-EN2TK is a high-performance EtherNet/IP Bridge Module engineered for the ControlLogix platform, delivering deterministic, high-throughput industrial network communication across complex automation architectures. Designed to serve as the backbone of plant-floor data exchange, the 1756-EN2TK enables seamless integration between field devices, PLC controllers, remote I/O subsystems, HMI panels, SCADA systems, variable frequency drives, intelligent sensors, and enterprise-level MES or ERP platforms. In an era where smart manufacturing demands real-time visibility and zero data isolation, this module stands as a critical node in the industrial data chain.

At ZYPLC, we maintain ready inventory of the 1756-EN2TK with full pre-shipment functional testing, 12-month warranty coverage, and global DHL/FedEx express logistics. Every unit is verified against Rockwell Automation specifications before dispatch, ensuring operational reliability from day one of installation.

Network Communication Table

Connected Automation Data Flow

The 1756-EN2TK functions as the central EtherNet/IP bridge within a ControlLogix chassis, orchestrating data flow across every layer of the automation hierarchy. At the field level, distributed I/O modules such as the 1756-IB16 digital input module and 1756-OB16E digital output module feed real-time process signals into the ControlLogix backplane. The 1756-EN2TK then routes this data upstream over a high-speed EtherNet/IP network to supervisory systems without latency or packet loss.

In multi-chassis architectures, the 1756-EN2TK bridges the local ControlLogix rack to remote chassis equipped with 1756-EN2T or 1756-EN3TR communication modules, enabling transparent peer-to-peer messaging and produced/consumed tag exchange across plant segments. This architecture is particularly effective in large-scale process plants where a single controller must coordinate dozens of remote I/O drops distributed across hundreds of meters of factory floor.

For drive integration, the 1756-EN2TK communicates directly with PowerFlex 755 and PowerFlex 525 variable frequency drives via EtherNet/IP, enabling closed-loop speed and torque control with real-time feedback. Drive fault codes, energy consumption data, and operational parameters are continuously streamed to the ControlLogix controller and forwarded to SCADA platforms such as FactoryTalk View SE or third-party systems like Wonderware InTouch and Ignition SCADA, where operators monitor production KPIs on HMI dashboards in real time.

At the sensor and instrumentation layer, smart field devices — including EtherNet/IP-enabled pressure transmitters, flow meters, and vision inspection systems — connect directly to the network segment managed by the 1756-EN2TK. The module handles CIP messaging to these devices, collecting process variables and forwarding alarm states to the controller for immediate response logic execution. For legacy field devices using DeviceNet or ControlNet protocols, a 1788-EN2DN linking device or 1756-DNB DeviceNet scanner module bridges those protocols into the EtherNet/IP backbone managed by the 1756-EN2TK.

At the enterprise edge, the 1756-EN2TK supports integration with FactoryTalk Historian and OPC-UA servers, enabling time-series data archiving for production analytics, predictive maintenance, and regulatory compliance reporting. Edge computing gateways can subscribe to live CIP data tags published by the 1756-EN2TK, feeding AI-driven analytics platforms without disrupting real-time control performance.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in modern industrial facilities is data isolation — the condition where field devices, control systems, and enterprise platforms operate in disconnected silos, preventing plant-wide visibility and coordinated decision-making. The Allen-Bradley 1756-EN2TK directly addresses this challenge through its role as a high-capacity EtherNet/IP bridge that unifies disparate network segments under a single, coherent communication architecture.

Protocol Fragmentation: Many brownfield plants operate with a mix of legacy ControlNet, DeviceNet, and serial RS-232/RS-485 devices alongside modern EtherNet/IP infrastructure. The 1756-EN2TK, deployed alongside protocol translation modules within the ControlLogix chassis, creates a unified data pathway that normalizes these heterogeneous signals into standard CIP objects accessible to any EtherNet/IP-compliant system — eliminating the need for costly proprietary middleware.

Remote Monitoring and Diagnostics: With the 1756-EN2TK’s support for CIP routing and explicit messaging, remote engineers can access controller diagnostics, I/O status, and network health metrics from any authorized workstation on the plant network — or through secure VPN tunnels from off-site locations. This capability dramatically reduces mean time to repair (MTTR) by enabling remote fault isolation before a technician is dispatched to the field.

Production Line Transparency: By bridging the ControlLogix controller to SCADA and MES platforms, the 1756-EN2TK enables real-time OEE (Overall Equipment Effectiveness) tracking, shift production reporting, and automated alarm escalation. Supervisors gain live visibility into cycle times, reject rates, and equipment utilization without relying on manual data collection — transforming reactive maintenance into proactive, data-driven operations.

Scalable Network Expansion: The 1756-EN2TK supports Device Level Ring (DLR) topology, providing built-in network redundancy with sub-millisecond fault recovery. As production lines expand, additional EtherNet/IP nodes — drives, I/O blocks, vision systems, and safety controllers — can be added to the ring without disrupting existing network traffic, making the 1756-EN2TK a future-proof investment for growing smart factory deployments.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1756-EN2TK on an EtherNet/IP network?
The 1756-EN2TK supports Requested Packet Intervals (RPI) as low as 1 ms for I/O connections, delivering deterministic, low-latency data exchange suitable for high-speed motion control and process automation. Network latency is further minimized when the module is deployed in a dedicated industrial Ethernet segment with managed switches that support QoS (Quality of Service) prioritization.

Q2: Is the 1756-EN2TK compatible with third-party SCADA and HMI systems?
Yes. The 1756-EN2TK communicates via standard EtherNet/IP (CIP) protocol, which is supported by all major SCADA platforms including Ignition, Wonderware, Citect, and iFIX, as well as HMI systems from Siemens, Schneider Electric, and Proface. OPC-DA and OPC-UA servers can also interface with the module through Rockwell’s RSLinx Classic or FactoryTalk Linx gateway software.

Q3: How does the 1756-EN2TK handle network failures or cable breaks?
When deployed in a Device Level Ring (DLR) topology, the 1756-EN2TK detects ring faults and reconfigures the network path in under 3 milliseconds, ensuring continuous I/O communication without controller faults or production interruptions. For linear topologies, redundant media can be implemented at the switch level using managed industrial Ethernet switches with RSTP (Rapid Spanning Tree Protocol).

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 1756-EN2TK?
Every 1756-EN2TK unit supplied by ZYPLC undergoes full functional testing prior to shipment, including backplane communication verification, EtherNet/IP connection establishment, and firmware version confirmation. All units are covered by a 12-month warranty from the date of shipment. In the event of a verified hardware defect within the warranty period, ZYPLC provides replacement or repair at no additional cost. Global express shipping via DHL or FedEx is available with typical lead times of 3–7 business days.
