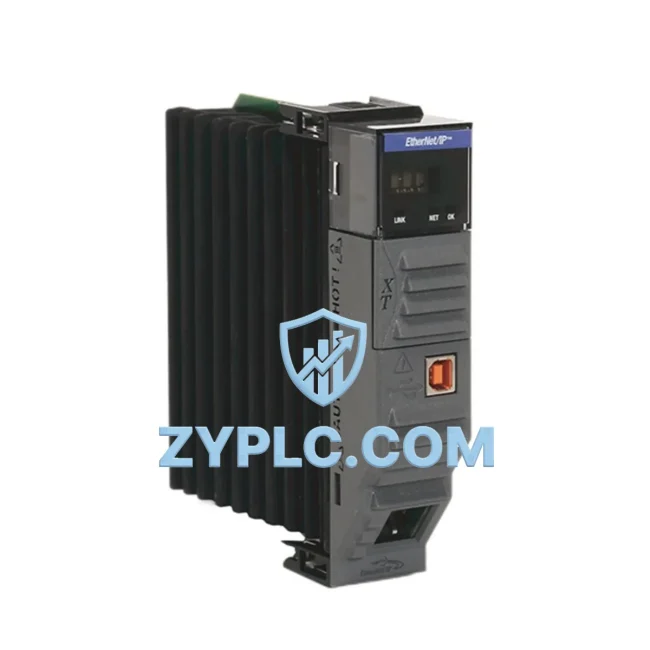

Allen-Bradley 1756-EN2TXT Industrial Network Interface for ControlLogix XT Systems

Allen-Bradley 1756-EN2TXT: Industrial Data Link for Smart Factory Connectivity

The Allen-Bradley 1756-EN2TXT is a high-performance EtherNet/IP Bridge Module engineered for the ControlLogix XT extended-temperature platform. Designed to operate reliably in harsh industrial environments — from foundry floors to offshore control rooms — this module serves as the critical communication backbone between field-level devices and upper-level control and monitoring systems. Whether your architecture demands real-time PLC-to-SCADA data exchange, seamless HMI integration, or deterministic network communication across distributed I/O nodes, the 1756-EN2TXT delivers the bandwidth, protocol fidelity, and environmental resilience that modern smart factories require.

In today’s connected manufacturing landscape, data latency and network instability are not acceptable. The 1756-EN2TXT addresses these challenges head-on with dual-port EtherNet/IP connectivity, Device Level Ring (DLR) topology support, and linear/star network flexibility — enabling engineers to design fault-tolerant automation networks without compromising throughput or determinism. Its extended-temperature rating (-25°C to +70°C) makes it uniquely suited for ControlLogix XT chassis deployments in environments where standard modules would fail.

Network Communication Table

Connected Automation Data Flow

Understanding the 1756-EN2TXT’s role requires tracing the full data path from signal acquisition to enterprise reporting. At the field level, sensors — including Rockwell’s 1734-IB8 POINT I/O digital input modules and 1734-IE4C analog current input modules — capture process variables such as temperature, pressure, flow rate, and motor current. These signals are aggregated through remote I/O adapters like the 1734-AENT POINT I/O EtherNet/IP Adapter, which transmits structured data packets upstream via EtherNet/IP to the ControlLogix XT chassis.

Within the chassis, the 1756-L73XT ControlLogix XT CPU executes the ladder logic and function block programs that govern process control decisions. The 1756-EN2TXT bridges this controller to the plant-wide Ethernet network, enabling the 1756-L73XT to exchange produced and consumed tags with peer controllers, remote I/O racks, and supervisory systems simultaneously. This tag-based communication model eliminates polling overhead and ensures that critical process data — alarm states, setpoint deviations, drive feedback — reaches the SCADA layer with sub-millisecond determinism.

At the drive and motion layer, PowerFlex 755 variable frequency drives connect to the EtherNet/IP network managed by the 1756-EN2TXT, reporting motor speed, torque, fault codes, and energy consumption in real time. This data feeds directly into FactoryTalk View SE HMI screens, where operators monitor production KPIs, acknowledge alarms, and issue remote setpoint adjustments without leaving the control room. Simultaneously, FactoryTalk Historian captures time-series data for trend analysis, OEE calculation, and predictive maintenance modeling.

For facilities integrating legacy serial devices — such as older Modbus RTU instruments or PROFIBUS DP field devices — the 1756-EN2TXT works in conjunction with protocol gateways like the ProSoft Technology MVI56E-MNETC EtherNet/IP-to-Modbus TCP gateway, enabling seamless data bridging without replacing existing field instrumentation. This hybrid architecture protects capital investment while extending the reach of the EtherNet/IP backbone to every corner of the plant.

At the network infrastructure layer, Stratix 5700 managed industrial Ethernet switches provide the switching fabric that interconnects the 1756-EN2TXT, remote I/O nodes, HMI panels, and edge gateways. VLAN segmentation and QoS policies configured on the Stratix 5700 ensure that time-critical EtherNet/IP traffic is prioritized over general IT traffic, maintaining network determinism even during peak data loads. For remote sites or multi-plant architectures, edge gateways aggregate local EtherNet/IP data and transmit it securely to cloud-based MES or ERP platforms, completing the ISA-95 data hierarchy from Level 0 field devices to Level 4 enterprise systems.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where valuable process data is trapped within proprietary device protocols, legacy serial networks, or isolated control islands that cannot communicate with the broader plant information system. The 1756-EN2TXT directly addresses this problem by serving as the EtherNet/IP gateway that unifies disparate data sources under a single, standards-based communication protocol.

In brownfield installations, it is common to find a mix of ControlLogix, CompactLogix, and older SLC 500 or PLC-5 controllers operating in parallel, each managing a segment of the production process with no direct data exchange between them. By deploying the 1756-EN2TXT as the network bridge in the ControlLogix XT chassis, engineers can establish produced/consumed tag relationships between all controller platforms, effectively creating a unified data fabric across the entire facility without replacing legacy hardware.

Remote monitoring and diagnostics represent another critical use case. With the 1756-EN2TXT providing EtherNet/IP connectivity, maintenance engineers can use Rockwell’s FactoryTalk Remote Access or third-party VPN solutions to connect directly to the ControlLogix XT controller from any location, interrogating live tag values, uploading/downloading programs, and diagnosing faults without dispatching technicians to remote or hazardous sites. This capability dramatically reduces mean time to repair (MTTR) and minimizes unplanned downtime.

Production line transparency — the ability to see real-time OEE, cycle times, reject rates, and energy consumption across every production cell — is achievable only when every device on the floor is connected and communicating. The 1756-EN2TXT enables this transparency by ensuring that every data point generated by field devices, drives, and controllers is available to SCADA, MES, and analytics platforms in real time, transforming raw process data into actionable manufacturing intelligence.

System scalability is equally important. As production capacity grows, new I/O racks, drive systems, and sensor networks can be added to the EtherNet/IP network managed by the 1756-EN2TXT without architectural redesign. The module’s DLR support allows new nodes to be inserted into the ring topology with minimal disruption, and its dual-port design supports both ring and linear extensions simultaneously, providing the flexibility that modern, evolving production environments demand.

Every 1756-EN2TXT unit supplied by ZYPLC undergoes pre-shipment functional testing, including EtherNet/IP communication verification, backplane integrity checks, and firmware version confirmation. Units are shipped with full documentation and are covered by a 12-month warranty, ensuring that your automation investment is protected from the moment of delivery through the first year of operation.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1756-EN2TXT on an EtherNet/IP network?
The 1756-EN2TXT supports Requested Packet Intervals (RPI) as low as 1 ms for I/O connections, enabling near-real-time data exchange between the ControlLogix XT controller and connected field devices. Actual latency depends on network topology, switch configuration, and the number of active connections, but properly designed EtherNet/IP networks with Stratix managed switches typically achieve deterministic cycle times well within the requirements of most process and discrete manufacturing applications.

Q2: Is the 1756-EN2TXT compatible with third-party SCADA and HMI systems beyond Rockwell’s FactoryTalk suite?
Yes. Because EtherNet/IP is an open, IEC 61158-compliant industrial protocol, the 1756-EN2TXT is compatible with any SCADA or HMI platform that supports EtherNet/IP or CIP communication drivers. This includes Ignition by Inductive Automation, Siemens WinCC, Wonderware System Platform, and GE iFIX, among others. OPC-UA servers can also be used as a protocol bridge for platforms that do not have native EtherNet/IP drivers.

Q3: How does the 1756-EN2TXT support network redundancy and fault tolerance?
The module supports Device Level Ring (DLR) topology, which provides automatic network recovery in the event of a single cable or node failure. Recovery times in DLR networks are typically less than 3 ms, ensuring that a single point of failure does not cause a controller communication timeout or process disruption. The dual-port design also supports linear and star topologies for installations where ring architecture is not required.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 1756-EN2TXT?
All 1756-EN2TXT modules supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional testing including EtherNet/IP communication verification, backplane slot compatibility checks, and firmware version confirmation. Units are available from stock for immediate shipment globally. For volume orders or urgent requirements, contact our team at +86 19859288691 or [email protected] for lead time and pricing.
