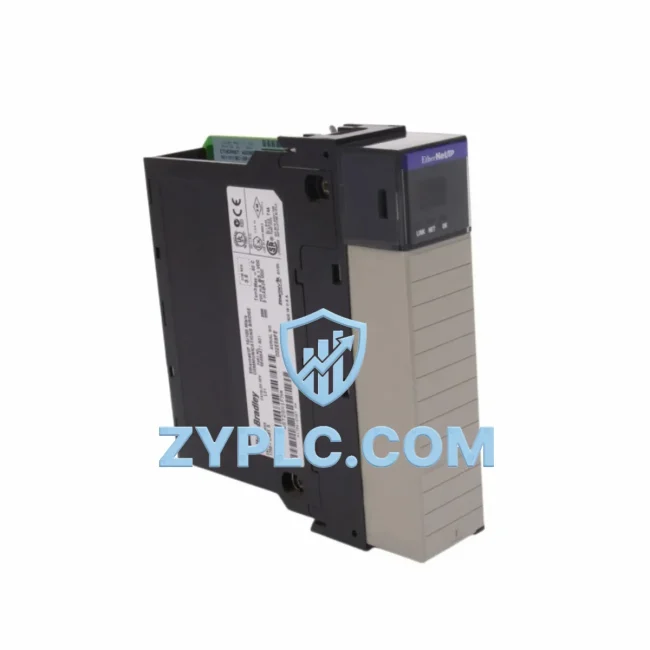

Allen-Bradley 1756-ENBT/A Industrial Network Interface for ControlLogix Systems

Allen-Bradley 1756-ENBT/A: Industrial Data Link for Smart Factory Connectivity

The Allen-Bradley 1756-ENBT/A is a high-performance EtherNet/IP communication bridge module engineered for Rockwell Automation ControlLogix backplane systems. Designed to serve as the backbone of industrial network architecture, the 1756-ENBT/A enables seamless, real-time data exchange between field-level devices, PLC controllers, remote I/O nodes, HMI panels, SCADA platforms, and enterprise-level supervisory systems. In modern smart factory environments where data transparency and network reliability are non-negotiable, this module delivers the connectivity infrastructure that keeps production lines visible, responsive, and scalable.

Built on the EtherNet/IP protocol — the most widely adopted industrial Ethernet standard — the 1756-ENBT/A supports up to 128 simultaneous CIP (Common Industrial Protocol) connections, providing the bandwidth and connection density required for complex, multi-node automation architectures. Whether bridging a ControlLogix L7x controller to a Stratix 5700 managed industrial switch, or routing process data from distributed 1734 POINT I/O remote nodes back to a central SCADA server, the 1756-ENBT/A maintains deterministic, low-latency communication across the entire data chain.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 1756-ENBT/A sits at the heart of the control network, acting as the primary communication bridge between the ControlLogix L72 or L73 processor and the broader plant network. Signal acquisition begins at the field level, where 1756-IB16 digital input modules and 1756-IF8 analog input modules collect process data from sensors, flow meters, and pressure transmitters mounted on production equipment. This raw I/O data is processed by the ControlLogix CPU and then transmitted via the 1756-ENBT/A across the EtherNet/IP backbone to upstream systems.

For distributed control architectures, the 1756-ENBT/A communicates with 1734 POINT I/O adapter modules deployed at remote panel locations, enabling the ControlLogix controller to read and write I/O data across long cable runs without signal degradation. In drive-intensive applications, the module exchanges speed references and fault status with PowerFlex 755 variable frequency drives via EtherNet/IP, eliminating the need for dedicated hardwired control circuits and enabling full drive diagnostics from the SCADA workstation.

At the supervisory level, the 1756-ENBT/A feeds real-time tag data to FactoryTalk View SE HMI servers and FactoryTalk Historian, where operators monitor KPIs, trend process variables, and respond to alarm conditions. For facilities running multi-vendor environments, the module can be paired with a 1756-DHRIO gateway to bridge legacy DH+ networks, or with a 1756-CN2 ControlNet bridge to integrate older ControlNet-based I/O into the modern EtherNet/IP infrastructure. Edge computing platforms such as the Rockwell Automation Logix Edge gateway can also subscribe to data published by the 1756-ENBT/A, enabling local analytics and cloud forwarding without disrupting the real-time control loop.

For remote site connectivity, the 1756-ENBT/A integrates with industrial cellular routers and VPN gateways, allowing maintenance engineers to perform remote diagnostics, firmware checks, and tag monitoring through Studio 5000 Logix Designer without physical access to the control panel. This remote visibility capability is critical for reducing mean time to repair (MTTR) and supporting predictive maintenance programs across geographically distributed facilities.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Older PLCs, legacy serial devices, and proprietary fieldbus networks create data silos that prevent plant managers from achieving true production transparency. The 1756-ENBT/A directly addresses this challenge by providing a standards-based EtherNet/IP gateway that integrates with protocol conversion modules and third-party gateways to unify data from disparate systems onto a single network fabric.

In facilities where DH-485, DeviceNet, or Modbus RTU devices still operate alongside modern EtherNet/IP infrastructure, the 1756-ENBT/A serves as the network anchor point, receiving converted data from protocol translation gateways and presenting it to SCADA and MES systems as native EtherNet/IP tags. This eliminates the need for manual data entry, reduces transcription errors, and enables real-time OEE (Overall Equipment Effectiveness) calculation across mixed-protocol production lines.

For system expansion, the 1756-ENBT/A supports modular scalability — additional ControlLogix chassis can be linked via EtherNet/IP bridging, and new remote I/O drops can be added to the network without reconfiguring the existing control program. This plug-and-expand architecture significantly reduces commissioning time for new production cells and supports phased factory automation upgrades without production downtime.

Every 1756-ENBT/A unit supplied by ZYPLC undergoes functional communication testing prior to shipment, verifying CIP connection establishment, LED status indication, and network link integrity. Units are shipped with a 12-month warranty covering manufacturing defects and communication failures, with in-stock availability supporting urgent project timelines and MRO replacement requirements.

Industrial Connectivity FAQ

Q: What is the communication latency of the 1756-ENBT/A on an EtherNet/IP network?
A: The 1756-ENBT/A supports implicit (I/O) messaging with configurable Requested Packet Intervals (RPI) as low as 1 ms, making it suitable for time-sensitive control applications. Actual latency depends on network topology, switch configuration, and the number of active CIP connections. Using a managed industrial switch such as the Stratix 5700 with QoS prioritization is recommended for latency-critical deployments.

Q: Is the 1756-ENBT/A compatible with third-party EtherNet/IP devices and SCADA systems?
A: Yes. The 1756-ENBT/A is fully compliant with the EtherNet/IP specification published by ODVA, ensuring interoperability with any ODVA-certified device or system. It is compatible with Wonderware, Ignition SCADA, Siemens WinCC OA (via EtherNet/IP drivers), and other third-party HMI/SCADA platforms that support CIP communication.

Q: How many devices can the 1756-ENBT/A support simultaneously?
A: The module supports up to 128 simultaneous CIP connections, which can be allocated across explicit messaging (for configuration and diagnostics) and implicit messaging (for real-time I/O data). For larger networks requiring more connection capacity, multiple 1756-ENBT/A modules can be installed in the same ControlLogix chassis.

Q: What warranty and testing does ZYPLC provide with the 1756-ENBT/A?
A: All 1756-ENBT/A units are tested for communication functionality before shipment and are covered by a 12-month warranty against manufacturing defects and operational failures. ZYPLC maintains in-stock inventory to support urgent MRO replacements and new project builds, with global shipping available. Contact our team for lead time and pricing confirmation.
