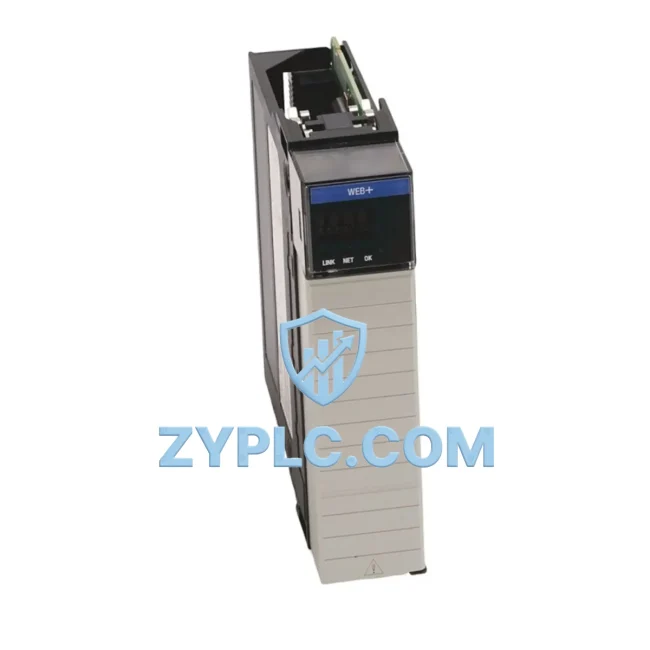

Allen-Bradley 1756-EWEB ControlLogix EtherNet/IP Web Server Module | Series A

Allen-Bradley 1756-EWEB: Industrial Data Link for Smart Factory ControlLogix Networks

The Allen-Bradley 1756-EWEB is a high-performance EtherNet/IP Web Server Module engineered for Rockwell Automation’s ControlLogix platform. Designed to serve as a critical industrial network interface, the 1756-EWEB bridges the gap between field-level devices and upper-layer supervisory systems — enabling seamless, real-time data flow across the entire automation architecture. Whether connecting PLCs to SCADA platforms, feeding live process data to HMI terminals, or enabling remote diagnostics over standard Ethernet infrastructure, the 1756-EWEB delivers the communication backbone that modern smart factories demand.

In today’s industrial environment, data isolation is one of the most persistent challenges facing plant engineers and system integrators. The 1756-EWEB directly addresses this by providing a standards-based EtherNet/IP gateway that integrates natively with the ControlLogix backplane, allowing the 1756-L71, 1756-L74, and 1756-L85E controllers to publish live tag data to web-based dashboards, SCADA servers, and MES platforms without requiring additional middleware or protocol converters. This dramatically reduces integration complexity while improving system transparency and uptime.

Network Communication Table

Connected Automation Data Flow

The 1756-EWEB operates at the heart of a layered industrial communication architecture. At the field level, sensors, actuators, and remote I/O modules — such as the 1734 POINT I/O series and 1756-IB16 digital input modules — feed process signals into the ControlLogix chassis via the local backplane. The 1756-L74 or 1756-L85E controller processes this data in real time, executing ladder logic and function block programs that govern machine behavior. The 1756-EWEB then acts as the network gateway, exposing controller tag data over EtherNet/IP to upstream systems.

On the supervisory layer, FactoryTalk View SE HMI stations and FactoryTalk Historian servers connect directly to the 1756-EWEB’s Ethernet port, pulling live production metrics, alarm states, and process variables without burdening the primary controller communication path. This architecture ensures that SCADA polling cycles do not interfere with real-time PLC scan times, maintaining deterministic control performance even under heavy network load.

For distributed plant topologies, the 1756-EWEB integrates seamlessly with managed industrial Ethernet switches such as the Stratix 5700 series, enabling VLAN segmentation, Quality of Service (QoS) prioritization, and ring redundancy via DLR (Device Level Ring) protocol. This ensures that critical control traffic is always prioritized over supervisory data, even in high-bandwidth environments with multiple concurrent SCADA clients.

Variable frequency drives — including the PowerFlex 525 and PowerFlex 755 series — connected via EtherNet/IP can have their speed references, fault codes, and energy consumption data aggregated through the ControlLogix system and published via the 1756-EWEB to energy management dashboards. This enables plant-wide energy monitoring and predictive maintenance workflows without requiring separate communication infrastructure.

Edge computing gateways and IoT platforms can also subscribe to the 1756-EWEB’s web server interface, enabling cloud-based analytics, OEE calculation, and digital twin synchronization. The module’s built-in web server supports custom trend displays and tag monitoring pages accessible from standard browsers, making it an ideal tool for remote diagnostics and shift-based production reporting.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate with a fragmented communication landscape — legacy PLCs running proprietary protocols, isolated machine cells with no network connectivity, and SCADA systems that cannot access real-time field data without manual intervention. The Allen-Bradley 1756-EWEB directly resolves these challenges by providing a unified EtherNet/IP interface that connects the ControlLogix platform to the broader plant network.

Protocol unification is achieved through the CIP (Common Industrial Protocol) stack embedded in the 1756-EWEB, which allows seamless interoperability with any EtherNet/IP-compliant device — from Cognex vision systems and Banner Engineering sensors to third-party SCADA servers running OPC-UA or MQTT bridges. This eliminates the need for standalone protocol converters and reduces the number of network nodes that require individual configuration and maintenance.

For production line transparency, the 1756-EWEB enables real-time KPI dashboards that display cycle times, reject rates, throughput, and equipment status directly from controller tags — without requiring custom software development. Plant managers and process engineers can access live data from any networked workstation or mobile device, enabling faster decision-making and more responsive production management.

Remote monitoring and diagnostics are further enhanced by the module’s ability to serve live tag data over HTTPS, allowing secure remote access to controller status from off-site engineering teams. Alarm conditions, fault histories, and trend data can be reviewed without requiring a VPN connection to the control network, reducing mean time to repair (MTTR) and minimizing unplanned downtime.

System expansion is straightforward — additional ControlLogix chassis, remote I/O drops, and new machine cells can be integrated into the existing EtherNet/IP network without disrupting ongoing production. The 1756-EWEB’s backplane-resident architecture ensures that new communication paths are established at the controller level, maintaining a single, coherent network topology as the plant grows.

Industrial Connectivity FAQ

Q1: What is the maximum number of concurrent web clients the 1756-EWEB supports?
The 1756-EWEB supports up to 10 concurrent web client connections, allowing multiple SCADA workstations, HMI terminals, and engineering laptops to access live tag data simultaneously without performance degradation.

Q2: Is the 1756-EWEB compatible with FactoryTalk View and third-party SCADA platforms?
Yes. The 1756-EWEB communicates via standard EtherNet/IP and CIP, making it fully compatible with FactoryTalk View SE, Wonderware InTouch, Ignition SCADA, and any OPC-DA/UA server that supports Rockwell Automation’s RSLinx Classic or RSLinx Enterprise communication drivers.

Q3: How does the 1756-EWEB ensure network stability in high-traffic industrial environments?
The module is designed for deterministic EtherNet/IP communication and supports integration with Stratix managed switches for DLR ring redundancy, VLAN segmentation, and QoS traffic prioritization — ensuring control-critical data is never delayed by supervisory polling traffic.

Q4: What warranty and pre-shipment testing does this unit include?
Every 1756-EWEB unit supplied by ZYPLC includes a 12-month warranty covering hardware defects and communication failures. Each module undergoes full functional testing — including EtherNet/IP connectivity verification, backplane communication checks, and web server response validation — before dispatch to ensure reliable operation upon installation.
