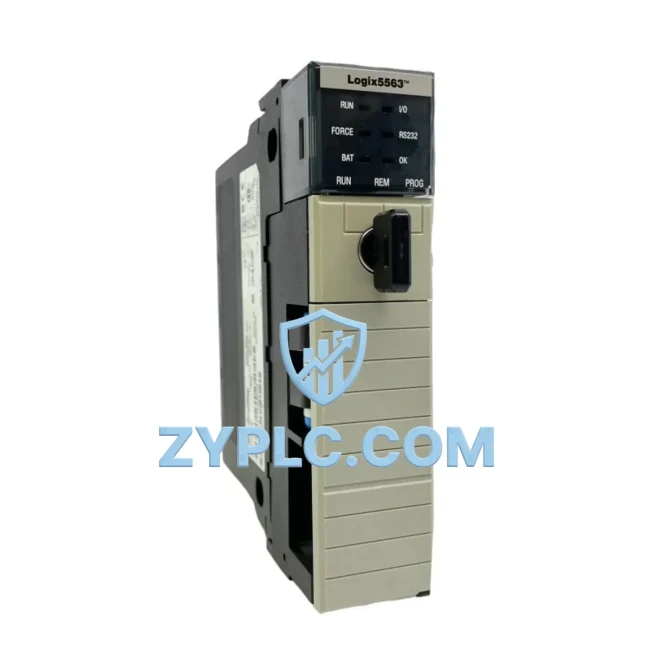

Allen-Bradley 1756-L63/A Industrial Network Interface for ControlLogix Systems

Allen-Bradley 1756-L63/A Industrial Network Interface for ControlLogix Systems: The Core of Your Smart Factory Data Link

In modern industrial environments where real-time data visibility, seamless protocol interoperability, and uninterrupted network uptime are non-negotiable, the Allen-Bradley 1756-L63/A ControlLogix Logix5563 Processor (Series A) stands as a cornerstone of intelligent factory connectivity. Designed for demanding automation architectures, this processor module integrates natively into the ControlLogix chassis to serve as the central intelligence hub — orchestrating data flow between field devices, remote I/O nodes, HMI panels, SCADA platforms, and enterprise-level MES systems with precision and reliability.

The 1756-L63/A is engineered to handle complex, multi-axis control tasks while simultaneously managing high-speed network communications across EtherNet/IP, ControlNet, and DeviceNet topologies. Whether you are commissioning a new greenfield smart factory or retrofitting legacy systems for Industry 4.0 compliance, this processor delivers the computational power and communication bandwidth required to eliminate data silos and achieve full production transparency.

Network Communication Table

Connected Automation Data Flow

The true value of the 1756-L63/A emerges when viewed within the full context of an integrated industrial data chain. At the field level, sensors and actuators — including photoelectric sensors, pressure transmitters, and servo drives — feed real-time signals into remote I/O modules such as the 1756-IB16 (digital input) and 1756-OF8 (analog output) housed within the same ControlLogix chassis. The Logix5563 processor scans these I/O points at sub-millisecond cycle times, executing ladder logic, function block, and structured text programs that govern machine behavior with deterministic precision.

For network-level communication, the 1756-L63/A relies on companion communication modules to extend its reach across the plant floor. The 1756-EN2T EtherNet/IP module connects the processor to the plant’s Ethernet backbone, enabling high-speed data exchange with upstream SCADA servers, historian databases, and MES platforms. Simultaneously, the 1756-CNB ControlNet Bridge module provides scheduled, deterministic communication to remote I/O racks and peer controllers located across the facility — critical for applications where jitter-free data delivery is essential.

In multi-network architectures, the 1756-L63/A acts as a protocol gateway, bridging EtherNet/IP traffic from Cisco IE series industrial switches down to DeviceNet segments via the 1756-DNB DeviceNet Scanner module. This allows legacy field devices — variable frequency drives such as the PowerFlex 755, smart motor controllers, and distributed I/O blocks — to participate in the unified data network without requiring hardware replacement. The processor aggregates all device-level data and forwards structured datasets to the FactoryTalk View SE SCADA platform, where operators gain real-time visibility into production KPIs, alarm states, and energy consumption metrics.

At the HMI layer, PanelView Plus 7 terminals communicate directly with the 1756-L63/A over EtherNet/IP, rendering live process graphics, trend charts, and operator control screens. For remote diagnostics and predictive maintenance, the processor’s data is also accessible via FactoryTalk AssetCentre and third-party edge gateways, enabling cloud-based analytics and remote firmware management without interrupting production cycles.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols, proprietary networks, and isolated control islands. Legacy systems running on DH+ or RS-232 cannot natively communicate with modern EtherNet/IP infrastructure, creating blind spots in production monitoring and making system-wide optimization impossible.

The Allen-Bradley 1756-L63/A directly addresses these challenges through its multi-protocol architecture and modular communication framework. By pairing the processor with the appropriate bridge and gateway modules, engineers can unify disparate network segments — connecting legacy DH+ devices through a 1756-DHRIO module, translating Modbus RTU signals from third-party instruments via protocol converters, and aggregating all data streams into a single EtherNet/IP backbone accessible to SCADA and MES platforms.

For production line transparency, the 1756-L63/A supports structured data tagging and producer/consumer communication models that allow any authorized node on the network — from a remote HMI to a cloud analytics platform — to subscribe to real-time process data without polling overhead. This architecture eliminates the latency and data loss associated with traditional master-slave polling systems, enabling true real-time monitoring across multi-cell and multi-line production environments.

Remote diagnostics capabilities are further enhanced through RSLinx Classic and RSLinx Enterprise software, which provide deep visibility into processor health, network traffic statistics, and I/O module status — all accessible from a centralized engineering workstation or via secure VPN connection. When combined with FactoryTalk Diagnostics, the system can automatically log fault events, generate alarm notifications, and trigger corrective workflows without operator intervention, dramatically reducing mean time to repair (MTTR) and unplanned downtime.

System scalability is another key advantage. The ControlLogix platform supports hot-swappable modules, redundant processor configurations, and seamless integration of additional I/O, motion, and safety modules as production requirements evolve — all without requiring a complete system redesign or extended shutdown periods.

Every 1756-L63/A unit supplied by ZYPLC undergoes pre-shipment functional testing, including power-on verification, communication port checks, and firmware version confirmation. All units are backed by a 12-month warranty and supported by in-stock inventory for rapid global dispatch.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1756-L63/A support, and is it compatible with third-party SCADA systems?
The 1756-L63/A supports EtherNet/IP, ControlNet, DeviceNet, DH+, and RS-232 through its modular communication architecture. It is fully compatible with major SCADA platforms including Wonderware InTouch, Ignition by Inductive Automation, and Siemens WinCC via OPC-DA/UA server interfaces, in addition to native FactoryTalk integration.

Q2: How does the 1756-L63/A handle network stability in high-noise industrial environments?
The ControlLogix platform is designed for industrial-grade EMI resilience. When paired with managed industrial Ethernet switches and shielded cabling, the 1756-L63/A maintains deterministic communication with sub-millisecond jitter. ControlNet connections provide additional redundancy for critical I/O paths where network interruption is unacceptable.

Q3: Can the 1756-L63/A be expanded to support additional I/O, motion axes, or safety functions without replacing the processor?
Yes. The ControlLogix chassis accepts a wide range of expansion modules — including analog I/O, high-speed counter, servo motion (via 1756-M02AE), and safety I/O modules (GuardLogix compatible) — allowing the system to scale from simple discrete control to complex multi-axis motion and functional safety applications within the same backplane.

Q4: What pre-shipment testing is performed, and what does the 12-month warranty cover?
All 1756-L63/A units from ZYPLC are tested for power integrity, backplane communication, and port functionality prior to shipment. The 12-month warranty covers hardware defects and communication failures under normal operating conditions. ZYPLC maintains in-stock inventory for rapid replacement dispatch, minimizing production downtime in the event of a warranty claim.
