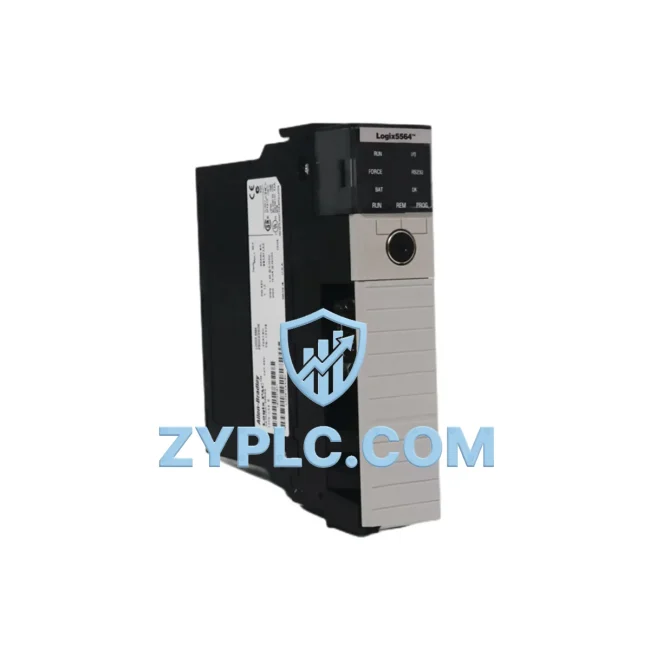

Allen-Bradley 1756-L64 ControlLogix PLC Processor | Series B

Allen-Bradley 1756-L64 ControlLogix PLC Processor: Industrial Data Link for Smart Factory Systems

The Allen-Bradley 1756-L64 ControlLogix PLC Processor (Series B) is a high-performance industrial network interface engineered to serve as the central data hub in modern smart factory environments. With 16MB of user memory and native support for EtherNet/IP and ControlNet communication protocols, the 1756-L64 bridges the gap between field-level devices and upper-level control and monitoring systems. Whether you are integrating remote I/O modules, coordinating motion drives, or feeding real-time process data into a SCADA platform, this processor delivers the deterministic, low-latency communication backbone that Industry 4.0 demands.

Designed for the Rockwell Automation ControlLogix chassis, the 1756-L64 operates within a modular architecture that allows seamless expansion of communication capabilities. Engineers can pair it with the 1756-EN2T EtherNet/IP communication module to extend high-speed Ethernet connectivity across the plant floor, or deploy the 1756-CN2 ControlNet bridge module for time-critical, scheduled data transfers between controllers and distributed I/O racks. This flexibility makes the 1756-L64 a cornerstone component in both greenfield automation projects and brownfield system upgrades.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 1756-L64 sits at the heart of a layered automation architecture. At the field level, sensors and actuators — including Rockwell’s 1734 POINT I/O modules and 1769 CompactLogix remote I/O adapters — transmit real-time signal data upward through the ControlNet or EtherNet/IP network to the 1756-L64 processor. The processor executes ladder logic and function block programs at scan rates measured in milliseconds, ensuring that process variables such as temperature, pressure, flow rate, and motor speed are continuously evaluated and acted upon.

For motion-critical applications, the 1756-L64 communicates directly with Kinetix 6000 and Kinetix 5700 servo drives over the Integrated Motion on EtherNet/IP (IMC) protocol, enabling synchronized multi-axis control without the latency penalties of traditional fieldbus architectures. Variable frequency drives such as the PowerFlex 755 can be integrated via EtherNet/IP, allowing the processor to issue speed references, read fault codes, and log energy consumption data — all within the same network scan cycle.

At the supervisory level, the 1756-L64 interfaces with PanelView Plus 7 HMI terminals through EtherNet/IP tag-based communication, providing operators with live process visualization, alarm acknowledgment, and recipe management. Simultaneously, the processor publishes data to FactoryTalk View SE SCADA servers, enabling plant-wide dashboards, historian logging, and remote monitoring from control rooms or mobile devices. For facilities running third-party SCADA platforms, the 1756-L64 can be bridged through a 1756-ENBT or 1756-EN2T communication module to OPC-UA or Modbus TCP gateways, ensuring interoperability across heterogeneous automation ecosystems.

Remote diagnostics are supported natively through RSLogix 5000 / Studio 5000 Logix Designer software, which allows maintenance engineers to go online with the 1756-L64 from any networked workstation, inspect tag values in real time, force I/O states for troubleshooting, and upload or download program revisions without interrupting production. This capability is further extended by FactoryTalk AssetCentre, which provides version control, audit trails, and disaster recovery for all controller programs stored on the 1756-L64.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Older machinery may rely on legacy fieldbus standards such as DeviceNet or Data Highway Plus (DH+), while newer installations demand EtherNet/IP or PROFINET connectivity. The 1756-L64, combined with the appropriate 1756-series communication bridge modules, acts as a universal protocol gateway — translating data between these disparate networks and eliminating the data silos that prevent plant-wide visibility.

For facilities seeking to achieve production line transparency, the 1756-L64 enables real-time OEE (Overall Equipment Effectiveness) data collection by aggregating machine status, cycle counts, downtime events, and quality metrics from distributed I/O nodes across the plant. This data is then made available to MES (Manufacturing Execution Systems) and ERP platforms through standard industrial communication interfaces, closing the loop between the shop floor and business intelligence systems.

Remote monitoring and alarm management are equally well served by the 1756-L64’s network architecture. When a process deviation triggers an alarm — whether it is an over-temperature condition on a motor drive, a low-level warning from a tank sensor, or a communication fault on a remote I/O rack — the processor immediately logs the event with a timestamp and propagates the alarm state to connected HMI and SCADA systems. Maintenance teams can receive push notifications and remotely diagnose the root cause without dispatching personnel to the field, reducing mean time to repair (MTTR) and minimizing unplanned downtime.

System scalability is another key advantage of the 1756-L64 platform. The ControlLogix chassis supports up to 17 modules, and multiple chassis can be interconnected via ControlNet or EtherNet/IP to form a distributed control system capable of managing thousands of I/O points across geographically separated process areas. As production requirements evolve, additional 1756-series I/O, communication, and motion modules can be inserted into the chassis without requiring a complete system redesign, protecting the capital investment in the existing automation infrastructure.

Every 1756-L64 unit supplied by ZYPLC undergoes pre-shipment functional testing, including power-on verification, memory integrity checks, and communication port validation. Units are shipped with original or equivalent packaging and are covered by a 12-month warranty against manufacturing defects and operational failures. In-stock inventory ensures rapid order fulfillment, with same-day dispatch available for urgent requirements.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1756-L64 support natively?
The 1756-L64 processor communicates natively over the ControlLogix backplane and supports EtherNet/IP and ControlNet when paired with the appropriate 1756-series communication modules such as the 1756-EN2T or 1756-CN2. DeviceNet and legacy DH+ connectivity can be added through the 1756-DNB and 1756-DHRIO bridge modules respectively, making the 1756-L64 compatible with virtually all major industrial network architectures.

Q2: How does the 1756-L64 ensure network stability and deterministic communication in high-speed applications?
The 1756-L64 uses Rockwell Automation’s Producer/Consumer network model over EtherNet/IP, which allows multiple devices to simultaneously receive data from a single source without polling overhead. ControlNet provides scheduled, time-deterministic data transfers for applications where consistent update rates are critical. The processor’s 16MB memory capacity ensures that large control programs and extensive tag databases do not compromise scan time performance.

Q3: Can the 1756-L64 integrate with third-party SCADA and HMI systems?
Yes. The 1756-L64 supports OPC-DA and OPC-UA data access through RSLinx Classic and RSLinx Enterprise communication servers, enabling seamless integration with third-party SCADA platforms including Wonderware, Ignition, and Siemens WinCC. Modbus TCP connectivity can be achieved through software add-on instructions or dedicated gateway modules, ensuring compatibility with legacy supervisory systems.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
All 1756-L64 units supplied by ZYPLC are covered by a 12-month warranty that includes replacement or repair for any defects in materials or workmanship under normal operating conditions. Pre-shipment testing includes power-on functional verification, user memory read/write integrity testing, backplane communication validation, and Ethernet port connectivity checks. A test report is available upon request. Units that do not pass all test criteria are quarantined and not dispatched.
