Allen-Bradley 1756-L82E Industrial Network Interface for ControlLogix 5580 Systems

Allen-Bradley 1756-L82E: Industrial Data Link for ControlLogix 5580 Smart Factory Networks

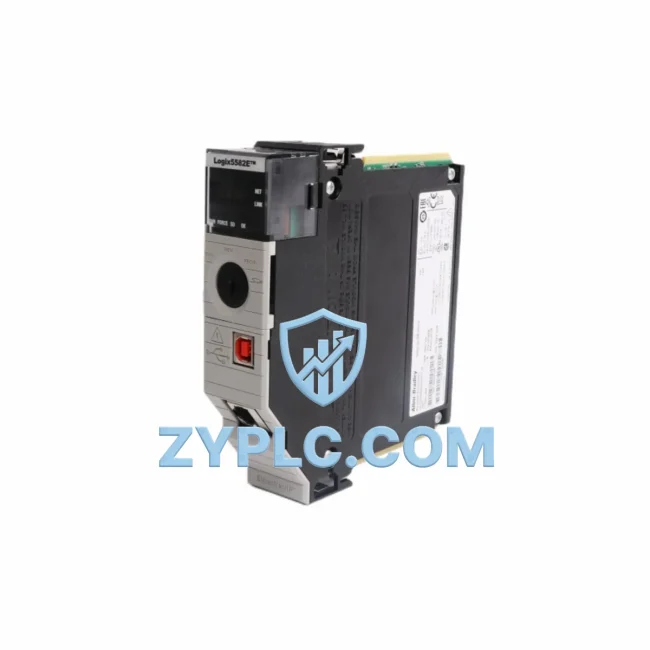

The Allen-Bradley 1756-L82E is a high-performance ControlLogix 5580 series programmable automation controller engineered for demanding industrial network environments. With native EtherNet/IP connectivity and 5MB of user memory, the 1756-L82E serves as the central intelligence node in modern smart factory architectures — bridging field-level devices, distributed I/O, motion systems, and enterprise SCADA platforms through a unified, deterministic communication backbone.

In today’s industrial landscape, seamless data flow between sensors, actuators, PLCs, and supervisory systems is not optional — it is the foundation of operational efficiency. The 1756-L82E addresses this need directly, providing the processing power and network throughput required to sustain real-time data exchange across multi-node automation networks without latency or packet loss.

Network Communication Table

Connected Automation Data Flow

The 1756-L82E operates at the heart of a layered industrial communication architecture. At the field level, distributed sensors and actuators — including photoelectric sensors, pressure transmitters, and proximity switches — feed real-time signals into remote I/O adapters such as the 1734-AENT POINT I/O EtherNet/IP Adapter, which aggregates and forwards structured data packets upstream to the 1756-L82E over the EtherNet/IP backbone.

Within the ControlLogix chassis, the 1756-EN2T EtherNet/IP Communication Module provides the physical network interface, enabling the controller to communicate simultaneously with multiple network segments. For legacy device integration, the 1756-DNB DeviceNet Bridge Module and 1756-CNB ControlNet Bridge Module extend the 1756-L82E’s reach to older field buses, ensuring backward compatibility without requiring full system replacement.

Variable frequency drives — such as the PowerFlex 755 AC Drive — connect directly to the EtherNet/IP network, allowing the 1756-L82E to issue speed references, read drive diagnostics, and respond to fault conditions in real time. This closed-loop communication eliminates the need for dedicated analog wiring between the controller and drive systems, reducing installation complexity and improving fault response times.

At the supervisory level, the 1756-L82E interfaces with FactoryTalk View SE HMI stations and FactoryTalk Historian servers, enabling operators to monitor production KPIs, visualize process trends, and configure alarm thresholds from centralized workstations. For sites requiring OPC-UA connectivity, third-party SCADA platforms and edge gateways — such as the Kepware KEPServerEX OPC-UA Gateway — can subscribe directly to the controller’s tag database, enabling seamless data forwarding to MES and ERP systems.

For safety-critical applications, the 1756-L82E integrates with 1756-L8xS GuardLogix Safety Controllers within the same chassis backplane, sharing I/O and network resources while maintaining independent safety program execution. This architecture supports SIL 2 and SIL 3 safety functions without requiring a separate safety network infrastructure.

Remote I/O expansion is handled through 1756-AENT ControlLogix EtherNet/IP Adapter Modules deployed at remote chassis locations, extending the controller’s I/O reach across large plant floors or geographically distributed production cells. Each remote chassis communicates with the 1756-L82E over standard Ethernet infrastructure, eliminating proprietary cabling requirements.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and enterprise systems operate in disconnected silos, preventing real-time visibility and coordinated control. The 1756-L82E directly addresses this challenge through its multi-protocol gateway architecture and open EtherNet/IP communication standard.

Sites running mixed-protocol environments — where legacy DeviceNet or ControlNet devices coexist with modern EtherNet/IP infrastructure — can use the 1756-L82E as a central protocol bridge. By installing the appropriate communication bridge modules in the ControlLogix chassis, all field devices regardless of native protocol are unified under a single controller tag database, eliminating the need for separate protocol converters or middleware servers.

For remote monitoring and diagnostics, the 1756-L82E supports remote access via FactoryTalk Remote Access and standard VPN infrastructure, allowing maintenance engineers to connect to the controller from off-site locations, review fault logs, modify program parameters, and perform online edits without interrupting production. This capability is critical for multi-site manufacturers seeking to centralize engineering resources while maintaining local control responsiveness.

Production line transparency is achieved through the controller’s integration with FactoryTalk Historian and third-party analytics platforms. Every process variable — cycle times, reject rates, energy consumption, drive performance — is continuously logged and made available for trend analysis, OEE calculation, and predictive maintenance algorithms. This data-driven approach transforms reactive maintenance into proactive asset management.

System scalability is a core design principle of the ControlLogix 5580 platform. As production requirements grow, additional I/O modules, communication bridges, and motion axes can be added to the existing chassis without replacing the controller. The 1756-L82E’s 5MB memory capacity and high-speed backplane ensure that expanded configurations continue to execute deterministically, maintaining scan time performance even as system complexity increases.

Every 1756-L82E unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying communication link establishment, program execution integrity, and I/O response timing before dispatch. All units are covered by a 12-month warranty, with in-stock inventory available for immediate global shipment.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1756-L82E over EtherNet/IP?
The 1756-L82E achieves deterministic EtherNet/IP communication with typical I/O update rates configurable from 1ms to 750ms depending on network load and requested packet interval (RPI) settings. For time-critical motion and safety applications, the controller’s high-speed backplane ensures sub-millisecond internal data exchange between co-located modules.

Q2: Is the 1756-L82E compatible with third-party SCADA and HMI systems?
Yes. The 1756-L82E supports OPC-DA and OPC-UA data access through compatible gateway software such as Kepware KEPServerEX, enabling integration with third-party SCADA platforms including Wonderware, Ignition, and Siemens WinCC. Native integration is available with Rockwell Automation’s FactoryTalk suite including FactoryTalk View SE and FactoryTalk Historian.

Q3: Can the 1756-L82E bridge legacy DeviceNet and ControlNet devices to an EtherNet/IP network?
Yes. By installing the 1756-DNB DeviceNet Bridge Module or 1756-CNB ControlNet Bridge Module in the same ControlLogix chassis, the 1756-L82E can communicate with legacy field devices over their native protocols while presenting unified tag data to EtherNet/IP-connected supervisory systems. This eliminates the need for standalone protocol converters.

Q4: What warranty and testing does ZYPLC provide for the 1756-L82E?
All 1756-L82E units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including communication link verification, program execution validation, and I/O response testing. In-stock units are available for immediate dispatch with full documentation. For pricing and availability, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
