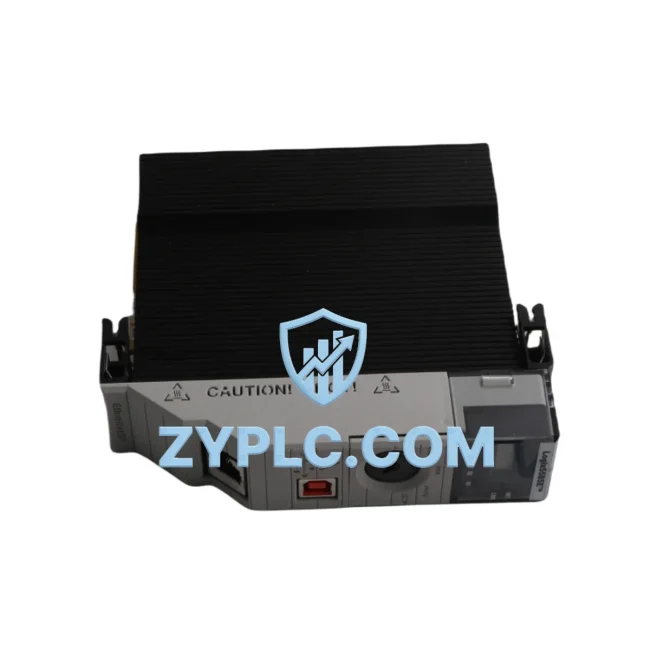

Allen-Bradley 1756-L85E Industrial Network Interface for ControlLogix Systems

Allen-Bradley 1756-L85E: Industrial Data Link for ControlLogix Smart Factory Networks

The Allen-Bradley 1756-L85E is a high-performance ControlLogix Series B programmable logic controller engineered for mission-critical industrial automation environments. With 80MB of user memory and native EtherNet/IP communication, the 1756-L85E serves as the central intelligence node in modern smart factory architectures — bridging field-level devices, distributed I/O, motion systems, and enterprise SCADA platforms into a unified, real-time data network. Whether deployed in automotive assembly, oil and gas processing, water treatment, or advanced discrete manufacturing, this controller delivers the processing power, protocol flexibility, and network stability that Industry 4.0 demands.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory, the 1756-L85E functions as the central data orchestrator across every layer of the automation hierarchy. At the field level, signals from distributed sensors — including proximity switches, pressure transmitters, and vision systems — are collected through remote I/O modules such as the 1756-IB16 digital input module and 1756-OF8 analog output module, both housed in the same 1756 ControlLogix chassis. These field signals are processed in real time by the 1756-L85E’s 80MB memory core, enabling sub-millisecond scan times even under heavy I/O loads.

For motion-critical applications, the 1756-L85E communicates directly with Kinetix 5700 servo drives over the EtherNet/IP network, delivering synchronized multi-axis motion commands with deterministic timing. Simultaneously, the controller exchanges process data with PowerFlex 755 variable frequency drives via CIP Motion, enabling precise speed and torque regulation across conveyor systems, pumps, and compressors without additional gateway hardware.

At the network transport layer, the 1756-L85E connects to the plant backbone through managed industrial Ethernet switches such as the Stratix 5700 series, which provide VLAN segmentation, ring topology redundancy, and QoS prioritization to ensure that time-sensitive control traffic is never delayed by bulk data transfers. This network architecture supports seamless integration with 1756-EN2T EtherNet/IP communication modules for expanded node capacity in large-scale installations.

For remote I/O expansion across geographically distributed production zones, the 1756-L85E communicates with POINT I/O 1734 adapter modules over EtherNet/IP, enabling real-time data acquisition from field instruments located hundreds of meters from the main control panel. Protocol conversion for legacy DeviceNet or ControlNet field devices is handled transparently through 1756-DNB DeviceNet bridge modules and 1756-CN2 ControlNet modules installed in the same chassis.

At the supervisory level, the 1756-L85E integrates natively with FactoryTalk View SE SCADA and HMI platforms via EtherNet/IP, providing operators with real-time process visualization, alarm management, and historical trending. The controller’s built-in web server and CIP data table access allow FactoryTalk Historian to log production KPIs, energy consumption, and quality metrics directly from controller tags — eliminating the need for OPC middleware in most configurations. For edge computing and IIoT gateway applications, the 1756-L85E can publish tag data to FactoryTalk Edge Gateway or third-party MQTT brokers, enabling cloud-based analytics and remote diagnostics without disrupting real-time control execution.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A typical plant may operate legacy DeviceNet sensors alongside modern EtherNet/IP drives, ControlNet I/O networks, and PROFIBUS field devices — each generating valuable process data that remains trapped in isolated protocol islands. The 1756-L85E directly addresses this challenge through its modular chassis architecture, which accommodates a full range of 1756-series communication bridge modules. A single ControlLogix rack can simultaneously host EtherNet/IP, ControlNet, DeviceNet, and serial communication modules, allowing the 1756-L85E to aggregate data from all protocol domains into a unified tag database accessible by SCADA, MES, and ERP systems.

Remote monitoring and diagnostics are equally critical in large industrial facilities where physical access to control panels is limited or hazardous. The 1756-L85E supports remote programming and firmware updates via EtherNet/IP using Studio 5000 Logix Designer, enabling engineers to modify control logic, tune PID loops, and diagnose faults from any networked workstation without interrupting production. Integrated controller diagnostics — including memory utilization, task execution time, and communication health — are continuously available through the controller’s web interface and FactoryTalk Diagnostics, providing early warning of potential issues before they escalate into unplanned downtime.

For production line transparency and OEE improvement, the 1756-L85E’s high-speed data logging capabilities allow manufacturers to capture cycle time data, reject counts, and equipment utilization metrics at the controller level, feeding real-time dashboards and shift reports through FactoryTalk View SE. System expansion is equally straightforward: additional 1756 chassis can be linked via ControlNet or EtherNet/IP to extend I/O capacity, and the controller’s large memory footprint accommodates complex Add-On Instructions (AOIs) and User-Defined Data Types (UDTs) that encapsulate reusable automation logic for rapid line reconfiguration.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1756-L85E support natively?
The 1756-L85E features a built-in dual-port EtherNet/IP interface supporting CIP (Common Industrial Protocol) for seamless integration with Rockwell Automation devices, SCADA systems, and third-party EtherNet/IP-compatible equipment. Additional protocols including ControlNet, DeviceNet, DH+, and serial communication are supported through the corresponding 1756-series bridge modules installed in the same chassis, making the controller compatible with virtually any industrial network topology.

Q2: How does the 1756-L85E ensure network stability in high-demand production environments?
The controller supports Device Level Ring (DLR) and linear/star EtherNet/IP topologies, providing network redundancy that automatically recovers from a single cable or switch failure in under 3 milliseconds. When paired with Stratix 5700 managed switches and the 1756-RM2 redundancy module, the system achieves controller-level redundancy with bumpless switchover, ensuring continuous production even during controller faults or planned maintenance windows.

Q3: Can the 1756-L85E integrate with third-party SCADA and HMI systems beyond the Rockwell ecosystem?
Yes. The 1756-L85E’s EtherNet/IP interface supports OPC-UA and OPC-DA data access through FactoryTalk Linx Gateway, enabling integration with third-party SCADA platforms including Wonderware, Ignition, Siemens WinCC, and GE iFIX. For systems requiring PROFIBUS or PROFINET connectivity, protocol gateways can bridge the 1756-L85E to non-Rockwell field networks without modifying the controller’s core logic.

Q4: What quality assurance and warranty coverage is provided with the 1756-L85E?
Every 1756-L85E unit supplied by ZYPLC undergoes a comprehensive pre-shipment functional test, including power-on verification, memory integrity check, EtherNet/IP communication validation, and firmware version confirmation. All units are supplied with a 12-month warranty covering hardware defects and communication failures. In-stock units are available for same-week dispatch, and our technical team provides post-sale support for installation, network configuration, and system integration queries.
